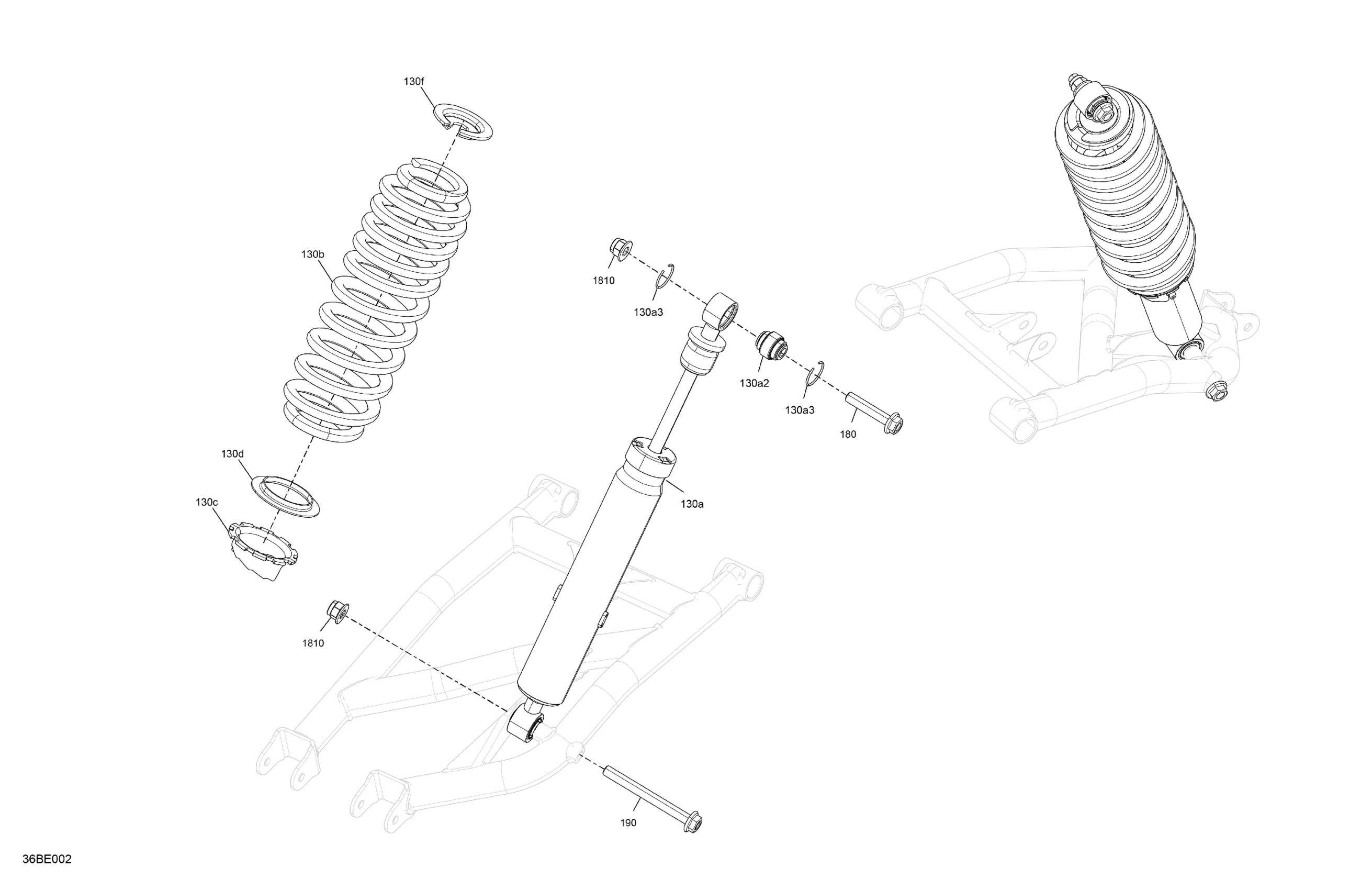

Can-Am Commander Max - 1000R EFI - XMR - 6CSD - Wildland Camo - 64" Width, 2025 Suspension - Rear Shocks Diagram

#

Description
Price

130a

Rear Shock Absorber Ass'y | Includes 130a to 130a3

706004378

$238.43

130a2

Ball Joint

706004078

$45.12

130a3

Internal Retaining Ring

293370157

$1.99

130b

Deep Black, Compression Spring

706005546

$115.35

130c

Adjustment Ring

706000910

$14.37

130d

Wear Ring

706005387

$7.60

130f

Spring Cup

706001894

$14.75

180

Flange Screw M12 X 60

250000857

$6.08

190

Screw Flange M12 X 115

250000860

$5.47

1810

Elastic Flange Nut M12

250001195

$2.15
