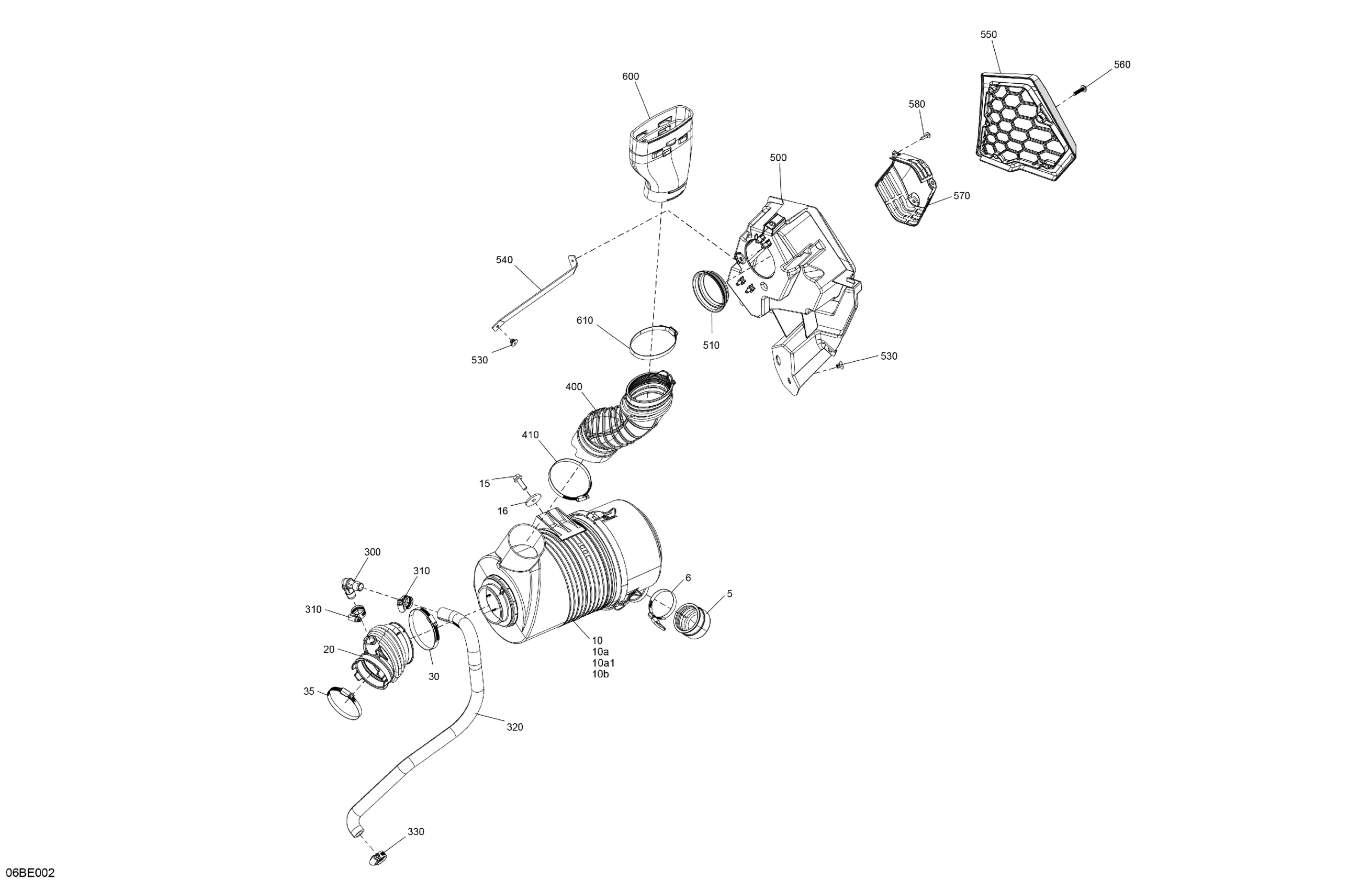

Can-Am Commander Max - 1000R EFI - XMR - 6CSD - Wildland Camo - 64" Width, 2025 Engine - Air Intake Diagram

Description

Price

Vacuator Cap

707800769

$36.89

Turn Key Clamp

293650269

$7.37

Air Box | Includes 10 to 10b

707801034

$184.58

10a

Gasket Intake Silencer | Includes 10a to 10a1

707800844

$23.05

10a1

Gasket Intake Silencer | Includes 10a to 10a1

707800844

$23.05

10b

Air Filter

715900422

$50.34

Hex. Flange Screw M8 X 25

207682544

$0.90

Flat Washer M8

250200158

$1.74

Air Intake Adapter

707800754

$27.66

Norma Clamp

293650096

$3.09

Norma Clamp

293650091

$4.60

300

Elbow Fitting 90

293710155

$8.45

310

Tridon Gear Clamp

293650173

$2.46

320

Blow-By Hose

707800755

$27.66

330

Tridon Gear Clamp

293650173

$2.46

400

Inlet Hose

707800791

$64.58

410

Norma Clamp

293650096

$3.09

500

Air Inlet Box

707800982

$36.89

510

Plug

707002217

$2.75

530

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

540

Duct Support

707801109

$5.52

550

Air Intake Grid

707800818

$46.12

560

Hex. Screw Pt K60 X 25

250000980

$1.74

570

Baffle

707800762

$16.89

580

Torx Screw K50 X 16

250000720

$1.39

600

Air Inlet Fitting

707800792

$27.66

610

Norma Clamp

293650096

$3.09
