07- Body - Seat

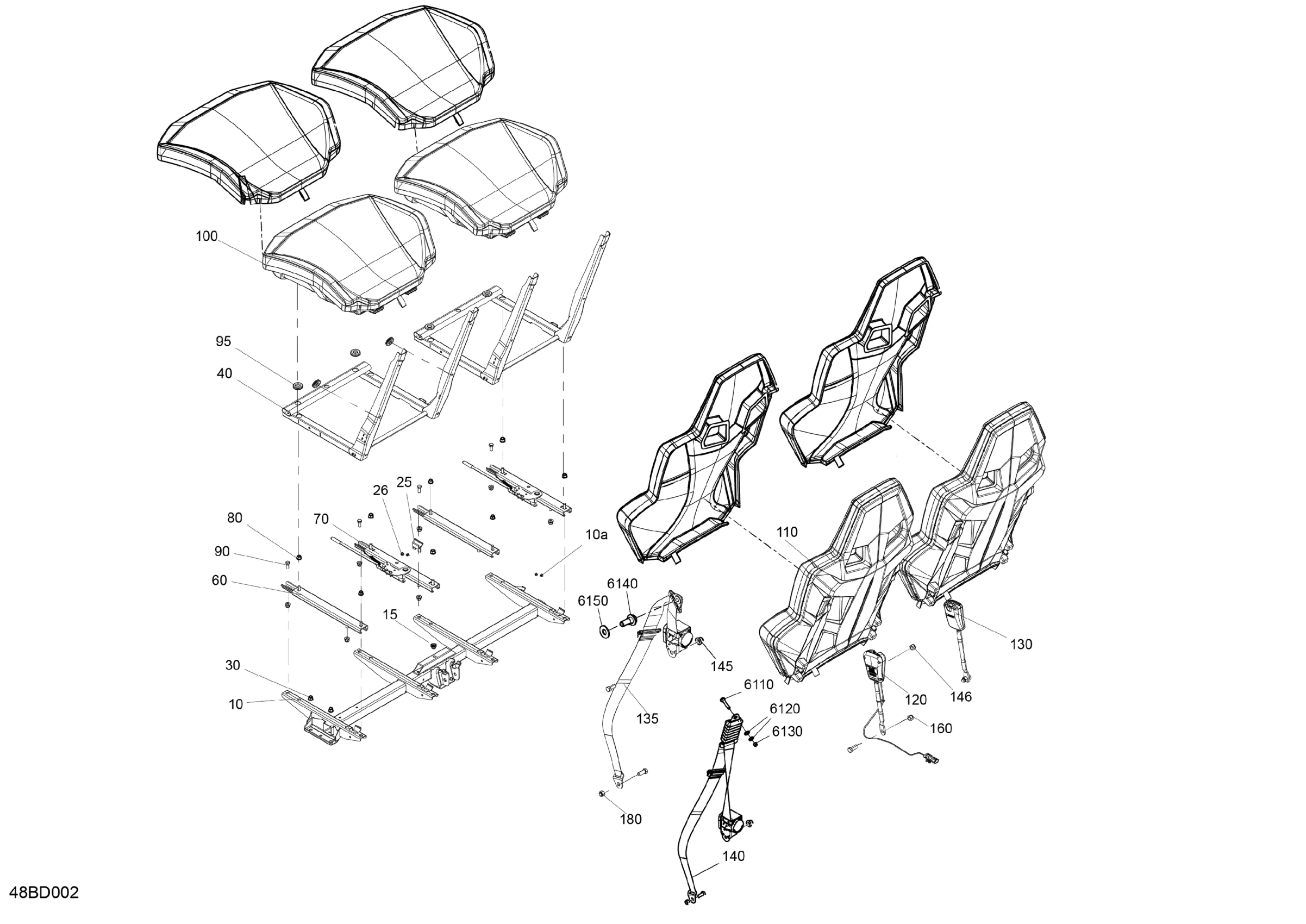

Can-Am North America - Commander MAX 1000R EFI - XMR - 6CRD - Wildland Camo - 64" Width, 2024 07- Body - Seat Diagram
#
Description
Price
10
Seat Member | Includes 10 to 10a9
708003472
Unavailable
10a
Pop Rivet 3/16"
390402200
Unavailable
15
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
25
Seat Stopper
708003672
Unavailable
26
Pop Rivet 3/16"
390402200
Unavailable
30
Hex. Flange Elastic Nut M8
233281414
Unavailable
40
Seat Frame
708002423
Unavailable
60
LH Seat Rail
708003314
Unavailable
70
RH Slide
708003316
Unavailable
80
Hex. Flange Elastic Nut M8
233281414
Unavailable
90
Hex. Screw M8 X 20
207182044
Unavailable
95
Grommet
517303756
Unavailable
100
Cushion Ass'y
708003426
Unavailable
110
Backrest Ass'y
708003428
Unavailable
120
Driver Buckle
708002331
Unavailable
130
Passenger Buckle
708002329
Unavailable
135
Safety Belt
708002835
Unavailable
140
Safety Belt
708003378
Unavailable
145
Elastic Flange Nut M12
233221416
Unavailable
146
Lock Nut Nylon 7/16
250100183
Unavailable
160
Lock Nut Nylon 7/16
250100183
Unavailable
180
Lock Nut Nylon 7/16
250100183
Unavailable
6110
Safet Belt Screw
708002443
Unavailable
6120
Position Washer
708000891
Unavailable
6130
Lock Nut Nylon 7/16
250100183
Unavailable
6140
Safety Belt screw
708002504
Unavailable
6150
Flat Washer M12
250200102
Unavailable
