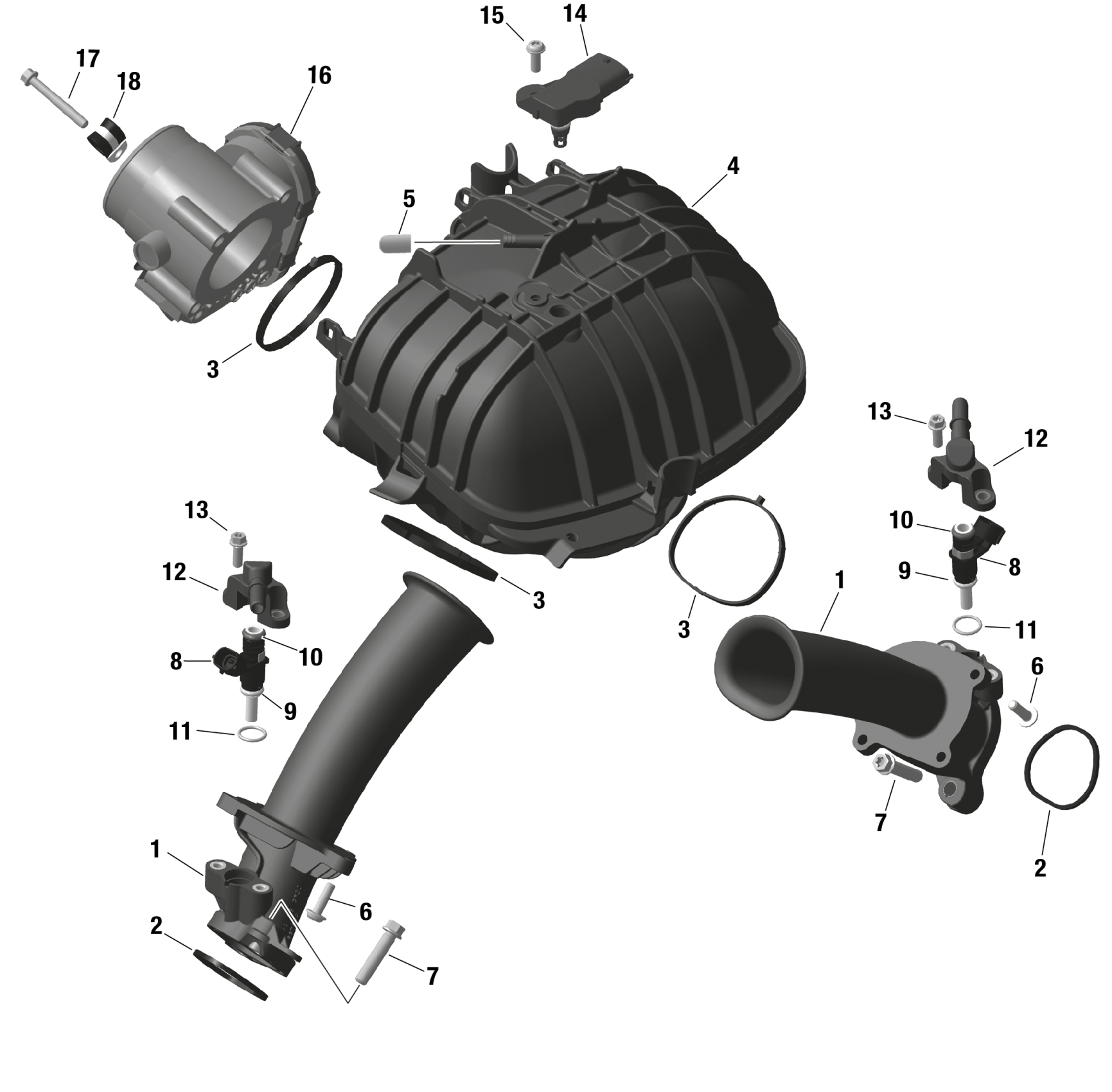

Can-Am Commander MAX 1000R EFI - XMR - 6CRD - Wildland Camo - 64" Width, 2024 ROTAX - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667830

$69.99

2

Gasket

420630642

$5.39

3

Gasket | Included in gasket kit

420431900

$5.40

4

Air Intake Manifold | Includes no 4-5

420667386

$184.99

5

Cap

420201910

$6.82

6

Torx Flange Screw M6 X 20

420841103

$3.66

7

Torx Flange Screw M8 X 35

420641188

$7.41

8

Injection Valve Ass'y | Includes 18 to 20

420874887

$174.99

9

O-Ring

420431890

$7.49

10

O-Ring

420631220

$14.28

11

O-Ring

420631296

$0.76

12

Fuel Rail

420874902

$17.73

13

Torx Flange Screw M6 X 16

420440162

$3.17

14

Pressure And Temperature Sensor

420874658

$119.99

15

Torx Flange Screw M6 X 16

420641588

$2.11

16

Throttle Body Socket Ass'y

420892596

$466.49

17

Torx Flange Screw M6 X 45

420440324

$0.98

18

Cable Clamp

420251692

$13.18
