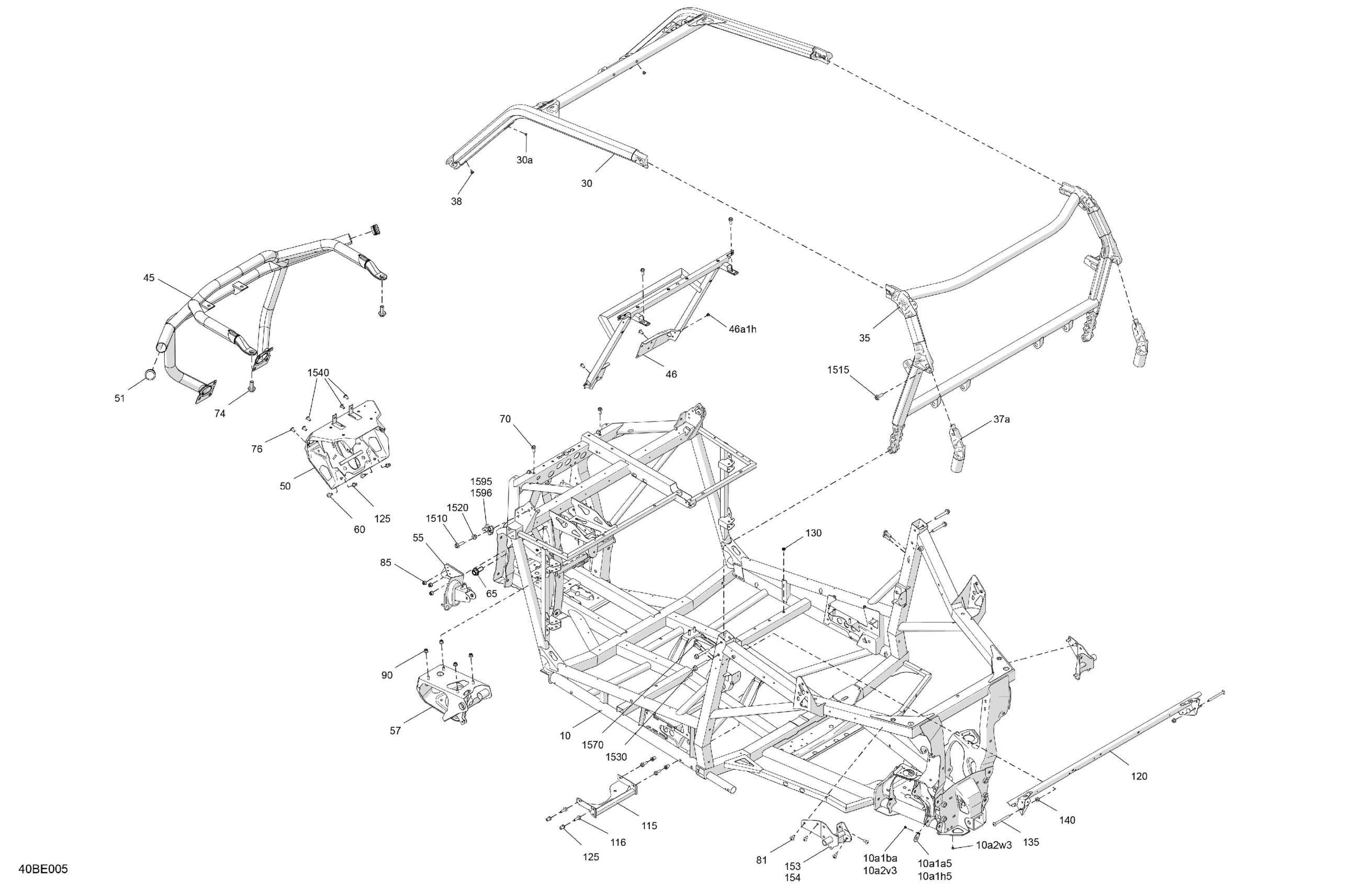

Can-Am Commander - 700 - XT - 9ASD - Timeless Black Metallic - 60" Width, 2025 Frame - System Diagram

#

Description
Price

10

Black, Frame Kit | Includes 10 to 10a2w3

715009396

$3,350.74

10a1a5

Shim

705209479

$3.05

10a1h5

Shim

705209479

$3.05

10a1ba

Pop Rivet 3/16 X ,425

293150293

$0.26

10a2v3

Pop Rivet 3/16 X ,425

293150293

$0.26

10a2w3

Pop Rivet 3/16 X ,425

293150293

$0.26

30

Deep Black, Front Cage Kit | Includes 30 to 30a

715009384

$619.99

30a

Pop Rivet 3/16 X ,425

293150293

$0.26

35

Deep Black, Rear Cage Kit

715009370

$619.99

37a

Deep Black, Rear Cage Extension

705211464

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$2.54

45

Deep Black, Front Bumper

705209105

$469.97

46

Front Body Support | Includes 46 to 46a1h

705208893

$203.05

46a1h

Pop Rivet 3/16 X ,425

293150293

$0.26

50

Deep Black, Front Bumper

705209043

$474.58

51

Cap

705202455

$4.62

55

Brake Support

705206217

$50.74

57

DPS Support

705206294

$66.12

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

74

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

76

Torx Truss Screw M8 X 16

250000746

$2.78

81

Torx Truss M/S M8 X 20

250000953

Unavailable

85

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Elastic Flange Nut M8

233281416

$1.25

115

Bearing Support

705211563

$45.35

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

120

Central Tube

705209434

$146.89

125

Insert Half Hex Body M8 x 1.25

293450307

$2.03

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Torx Truss M8 X 90

250000806

$6.15

140

Hex. Flange Nut

233081436

$1.63

153

LH Rear Open Carrier Anchorage

705210342

$95.35

154

RH Rear Open Carrier Anchorage

705210343

$95.35

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1515

Hex. Flange Screw M10 X 30 Scotch G.

207503056

$2.09

1520

Flange Elastic Nut M10

233201466

$2.63

1530

Hex. Flange Screw M10 X 70

207607056

$3.38

1540

Torx Truss Screw M8 X 16

250000746

$2.78

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

1595

LH Front Anchorage

705209913

$35.35

1596

RH Front Anchorage

705209914

$35.35
