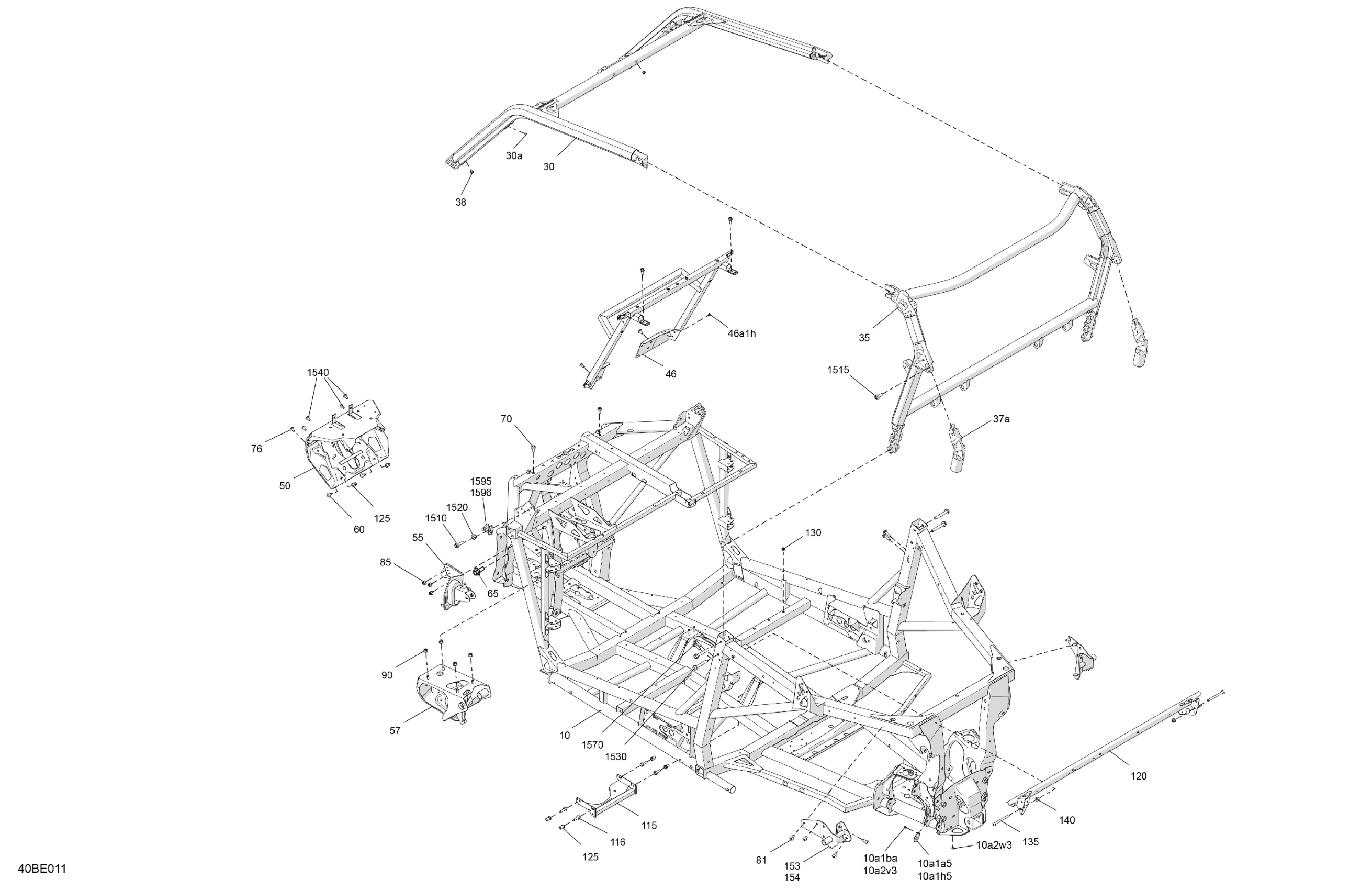

Can-Am Commander - 700 - DPS - 9PSB - Compass Green - 60" Width, 2025 Frame - System Diagram

Black, Frame Kit | Includes 10 to 10a2w3

715009396

$3,350.74

Shim

705209479

$3.05

Shim

705209479

$3.05

Pop Rivet 3/16 X ,425

293150293

$0.26

Pop Rivet 3/16 X ,425

293150293

$0.26

Pop Rivet 3/16 X ,425

293150293

$0.26

Deep Black, Front Cage Kit | Includes 30 to 30a

715009384

$619.99

Pop Rivet 3/16 X ,425

293150293

$0.26

Deep Black, Rear Cage Kit

715009370

$619.99

Deep Black, Rear Cage Extension

705211464

$44.99

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Front Body Support | Includes 46 to 46a1h

705208893

$203.05

Pop Rivet 3/16 X ,425

293150293

$0.26

Deep Black, Front Bumper

705209043

$474.58

Brake Support

705206217

$50.74

DPS Support

705206294

$66.12

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Torx Truss Screw M8 X 16

250000746

$2.78

Torx Truss M/S M8 X 20

250000953

Unavailable

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Elastic Flange Nut M8

233281416

$1.25

Bearing Support

705211563

$45.35

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

Central Tube

705209434

$146.89

Insert Half Hex Body M8 x 1.25

293450307

$2.03

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Torx Truss M8 X 90

250000806

$6.15

Hex. Flange Nut

233081436

$1.63

LH Rear Open Carrier Anchorage

705210342

$95.35

RH Rear Open Carrier Anchorage

705210343

$95.35

Hex. Flange Screw M10 X 35

250000855

$1.46

Hex. Flange Screw M10 X 30 Scotch G.

207503056

$2.09

Flange Elastic Nut M10

233201466

$2.63

Hex. Flange Screw M10 X 70

207607056

$3.38

Torx Truss Screw M8 X 16

250000746

$2.78

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

LH Front Anchorage

705209913

$35.35

RH Front Anchorage

705209914

$35.35
