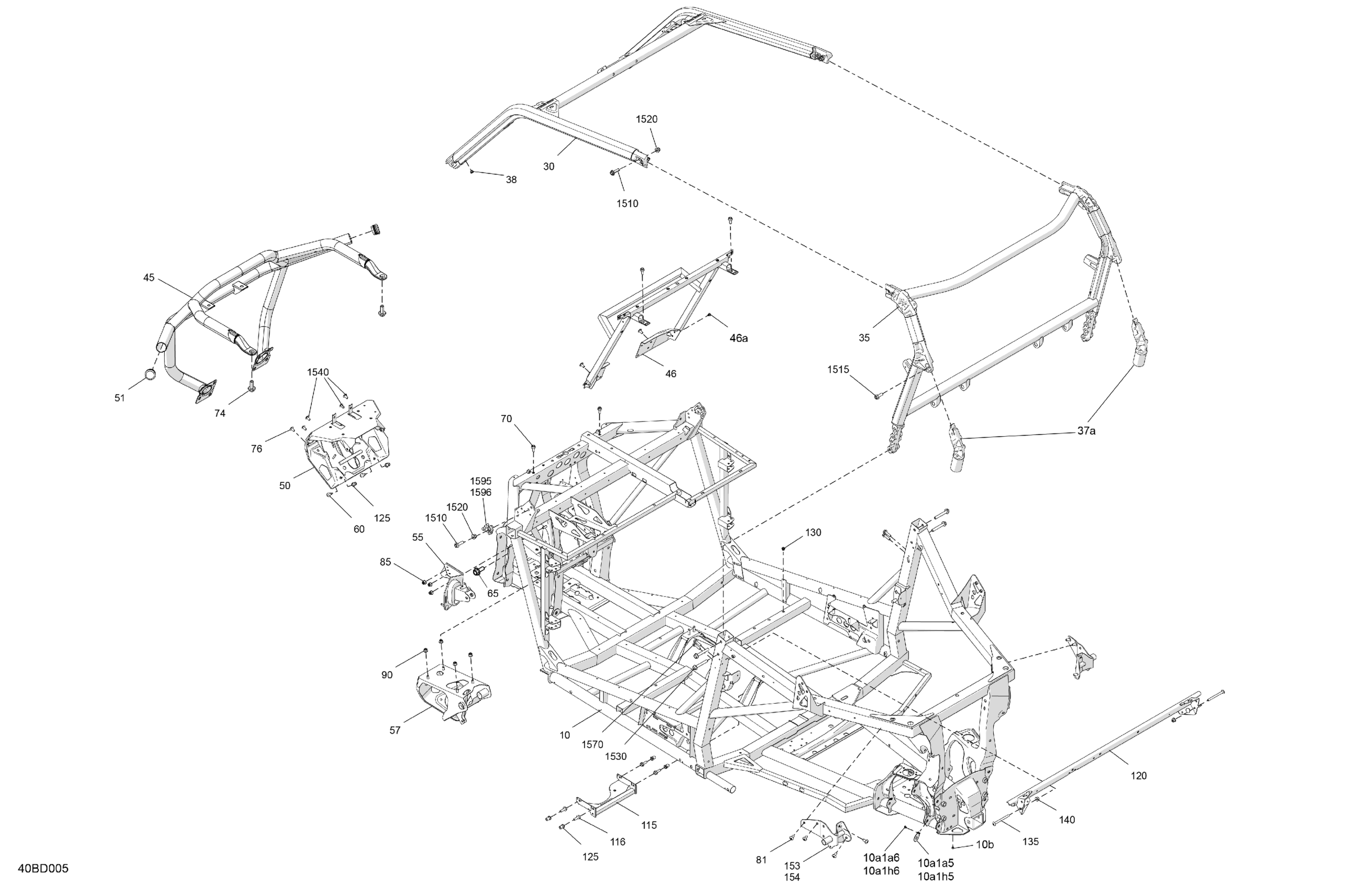

Can-Am Commander 1000R EFI - XTP - 6YRB - Macchiato Satin - 64" Width, 2024 Frame - System Diagram

#

Description
Price

10

Black, Frame Kit | Includes 10 to 10a2w3

715009396

$3,629.99

10a1a5

Shim

705209479

$3.29

10a1a6

Pop Rivet 3/16 X ,425

293150293

$0.35

10a1h5

Shim

705209479

$3.29

10a1h6

Pop Rivet 3/16 X ,425

293150293

$0.35

10b

Pop Rivet 3/16 X ,425

293150293

$0.35

30

Deep Black, Front Cage Kit | Includes 30 to 30a

715009384

$619.99

35

Deep Black, Rear Cage Kit

715009370

$619.99

37a

Deep Black, Rear Cage Extension

705211464

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$3.19

45

Deep Black, Front Bumper

705209105

$457.49

46

Front Body Support | Includes 46 to 46a1h

705208893

$219.99

46a

Pop Rivet 3/16 X ,425

293150293

$0.35

50

Deep Black, Front Bumper

705209043

$457.49

51

Cap

705202455

$5.69

55

Brake Support

705206217

$49.99

57

DPS Support

705206294

$71.99

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

74

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

76

Torx Truss Screw M8 X 16

250000746

$3.38

81

Torx Truss M/S M8 X 20

250000953

$2.11

85

Hex. Elastic Flange Nut M8

233281416

$1.48

90

Hex. Elastic Flange Nut M8

233281416

$1.48

115

Bearing Support

705211563

$48.99

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

120

Central Tube

705209434

$159.99

125

Insert Half Hex Body M8 x 1.25

293450307

$2.69

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Torx Truss M8 X 90

250000806

$7.51

140

Hex. Flange Nut M8

233081416

$1.15

153

LH Rear Open Carrier Anchorage

705210342

$104.99

154

RH Rear Open Carrier Anchorage

705210343

$104.99

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1515

Hex. Flange Screw M10 X 30 Scotch G.

207503056

$2.53

1520

Flange Elastic Nut M10

233201466

$3.17

1530

Hex. Flange Screw M10 X 70

207607056

$4.29

1540

Torx Truss Screw M8 X 16

250000746

$3.38

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

1595

LH Front Anchorage

705209913

$38.99

1596

RH Front Anchorage

705209914

$38.99
