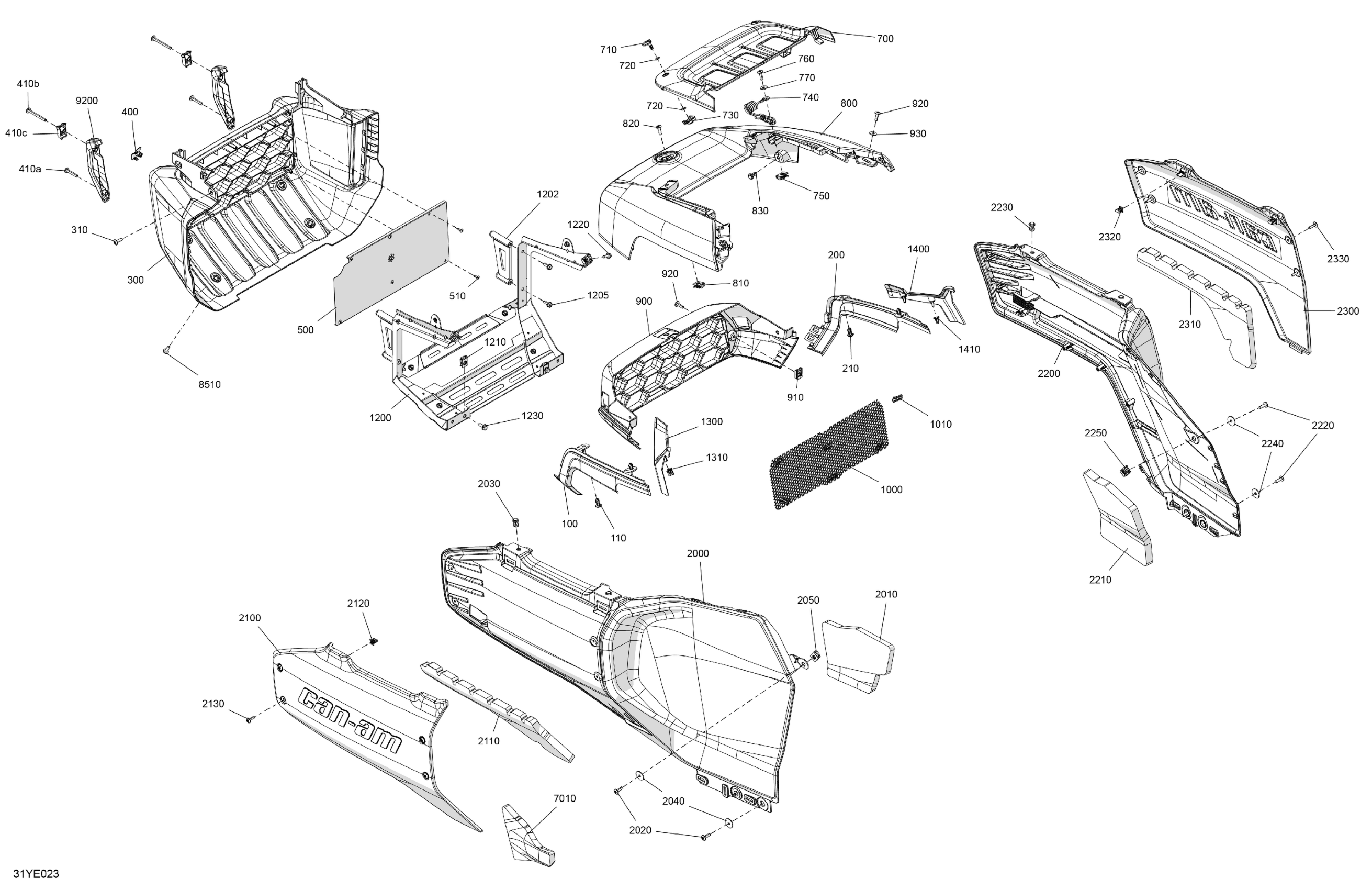

Can-Am CANYON XT - J2SA - Sterling Silver Satin, 2025 Body - System Diagram

#

Description
Price

100

LH Front Trim

708201216

$219.99

110

Tuflok Plastic Rivet

293150230

$1.47

200

RH Front Trim

708201217

$219.99

210

Tuflok Plastic Rivet

293150230

$1.47

300

Lower Fascia

705017433

$142.99

310

Torx Truss Screw M6 X 20

250000303

$7.27

400

Connector Cap

705018663

$3.89

500

Lower Scoop Grille

708201291

$34.99

510

Torx Truss PT K40 x 12

250001131

$2.11

700

Access Cover

705017394

$33.99

710

Quarter-Turn Screw

705013609

$14.99

720

Plastic Washer

705003207

$0.80

730

Quarter Turn Nut

705002651

$4.76

740

Lanyard | Included 905 to 905d

708002532

$22.99

740d

Cord Decal

704905127

Unavailable

750

Panel Nut M6 X 1.0

250100208

$1.46

760

Torx Screw M6 X 20

250000722

$1.68

770

Stainless Steel Flat Washer

234062670

$2.11

800

Sterling Silver, Upper Fascia

708201288

$329.99

810

Panel Nut M6 X 1.0

250100208

$1.46

820

Torx Screw M6 X 20

250000722

$1.68

830

Tuflok Plastic Rivet

293150230

$1.47

900

Front Upper Grille

708201214

$57.99

910

Panel Nut M6 X 1.0

250100208

$1.46

920

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

930

Stainless Steel Flat Washer

234062670

$2.11

1000

Upper Scoop Grille

708201289

$34.99

1010

Flat Clip

705004838

$7.73

1200

Front Bumper

705017531

$223.49

1202

Bumper Anchorage

705018647

$37.99

1205

Hex Flange Screw M6 X 16

250000906

$5.29

1210

Panel Nut M6 X 1.0

250100208

$1.46

1220

Hex Flange Screw M6 X 16

250000906

$5.29

1230

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

1300

LH Lower Console Trim

708400859

$219.99

1310

Edge Clip

517302785

$0.88

1400

RH Lower Console Trim

708400860

$219.99

1410

Edge Clip

517302785

$0.88

2000

LH Lower Fairing

705017386

$85.99

2010

LH Rear Acoustic Insulation

705017662

$16.99

2020

Torx Screw M6 X 20

250000722

$1.68

2030

Tuflok Plastic Rivet

293150230

$1.47

2040

Washer M6

250200029

$2.50

2050

Panel Nut M6 X 1.0

250100208

$1.46

2100

Sterling Silver, LH Fairing

705018535

$219.99

2110

LH Front Acoustic Insulation

705017664

$16.99

2120

Edge Clip

517302785

$0.88

2130

Screw Type K-50 X20

250001155

$4.76

2200

RH Lower Fairing

705017387

$85.99

2210

RH Rear Acoustic Insulation

705017663

$16.99

2220

Torx Screw M6 X 20

250000722

$1.68

2230

Tuflok Plastic Rivet

293150230

$1.47

2240

Washer M6

250200029

$2.50

2250

Panel Nut M6 X 1.0

250100208

$1.46

2300

Sterling Silver, RH Fairing

705018536

$219.99

2310

RH Front Acoustic Insulation

705017665

$16.99

2320

Edge Clip

517302785

$0.88

2330

Screw Type K-50 X20

250001155

$4.76

7010

Acoustic Panel Insulation

705017789

$14.49

8510

Torx Truss Cone Screw Hd.M6 X 20

250001325

$6.77

9200

Can-Am Red, Bumper

705018891

$116.49

410a

Torx Truss Cone Screw Hd.M6 X 35

250001327

$6.77

410b

Torx Truss Cone Screw Hd.M6 X 60

250001328

$6.77

410c

Bumper Cap

705018671

$7.19
