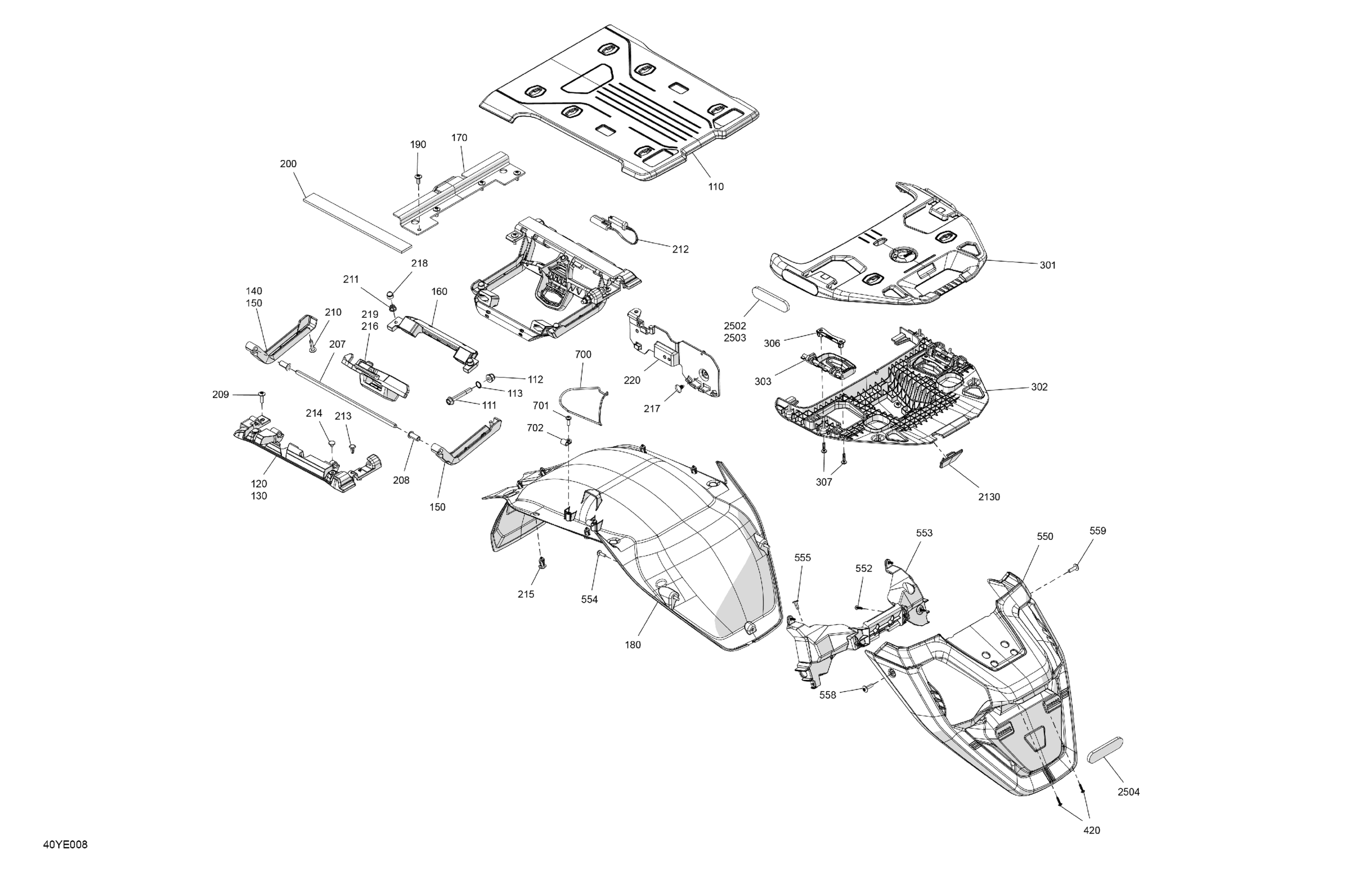

Can-Am CANYON STD - J1SA - Sterling Silver Satin, 2025 Body - Cargo Structure And Rear Fenders Diagram

Description

Price

110

Multi Purpose Plate

708304808

$89.99

111

Hex. Flange Screw M8 X 58

250000824

$2.11

112

Elastic Flange Nut M8

233281466

$1.01

113

O-Ring

293300013

$8.18

120

LH Rear Support

708304806

$44.99

130

RH Rear Support

708304807

$44.99

140

LH Rear Pivot Arm

708304804

$19.99

150

RH Rear Pivot Arm

708304805

$19.99

160

Rotating Link Arms

708304809

$47.99

170

Anchorage Support

708304881

$53.99

180

Wheel Arch

708304265

$56.99

190

Torx Head Screw M6 X 16

250000717

$2.11

200

Shim

708304353

$5.89

207

Pivot Arm Axle

708304342

$9.69

208

Shouldered Bushing

708304402

$13.99

209

Torx Screw M6 X 20

250000722

$1.68

210

Torx-Truss M/S M6 X 25

250001000

$5.29

211

Hex. Flange Elastic Nut M6

233261494

$1.58

212

Linq Position Sensor

705602303

$54.99

213

Dart, Fastex

293730024

$1.39

214

Rubber Stopper

293830243

$8.09

215

Tuflok Plastic Rivet

293150230

$1.47

216

LINQ Support

708304348

$53.99

217

Black, Dart

414644300

$0.98

218

Cap

269500806

$2.89

219

Linq Support

708304347

$53.99

220

Wiring Harness Support

708304781

$4.19

301

Rear Upper Plate

708304455

$31.99

302

Rear Bottom Plate

708304341

$35.99

303

Rear Fastener Linq

708304460

$19.99

306

Accessory Support

708305205

$17.49

307

Torx Screw Truss Head K50X20 T20

250000760

$2.11

420

Hex. Flange Screw K40 X 16

250001123

$2.11

550

Rear Fairing

708304352

$204.99

552

Hex. Flange Screw K40 X 16

250001123

$2.11

553

Fairing Support

708304827

$56.99

554

Torx Screw K50 X 16

250000720

$1.69

555

Dart, Fastex

293730024

$1.39

558

Torx Screw M6 X 20

250000722

$1.68

559

Torx Screw M6 X 20

250000722

$1.68

700

Strap

520003477

$3.91

701

Torx Screw K50 X 16

250000720

$1.69

702

Hose Clamp

293650257

$5.99

2130

Cap

708304583

$3.89

2502

Red, Reflector

705015551

$9.59

2503

Red, Reflector

705015551

$9.59

2504

Red, Reflector

705015551

$9.59
