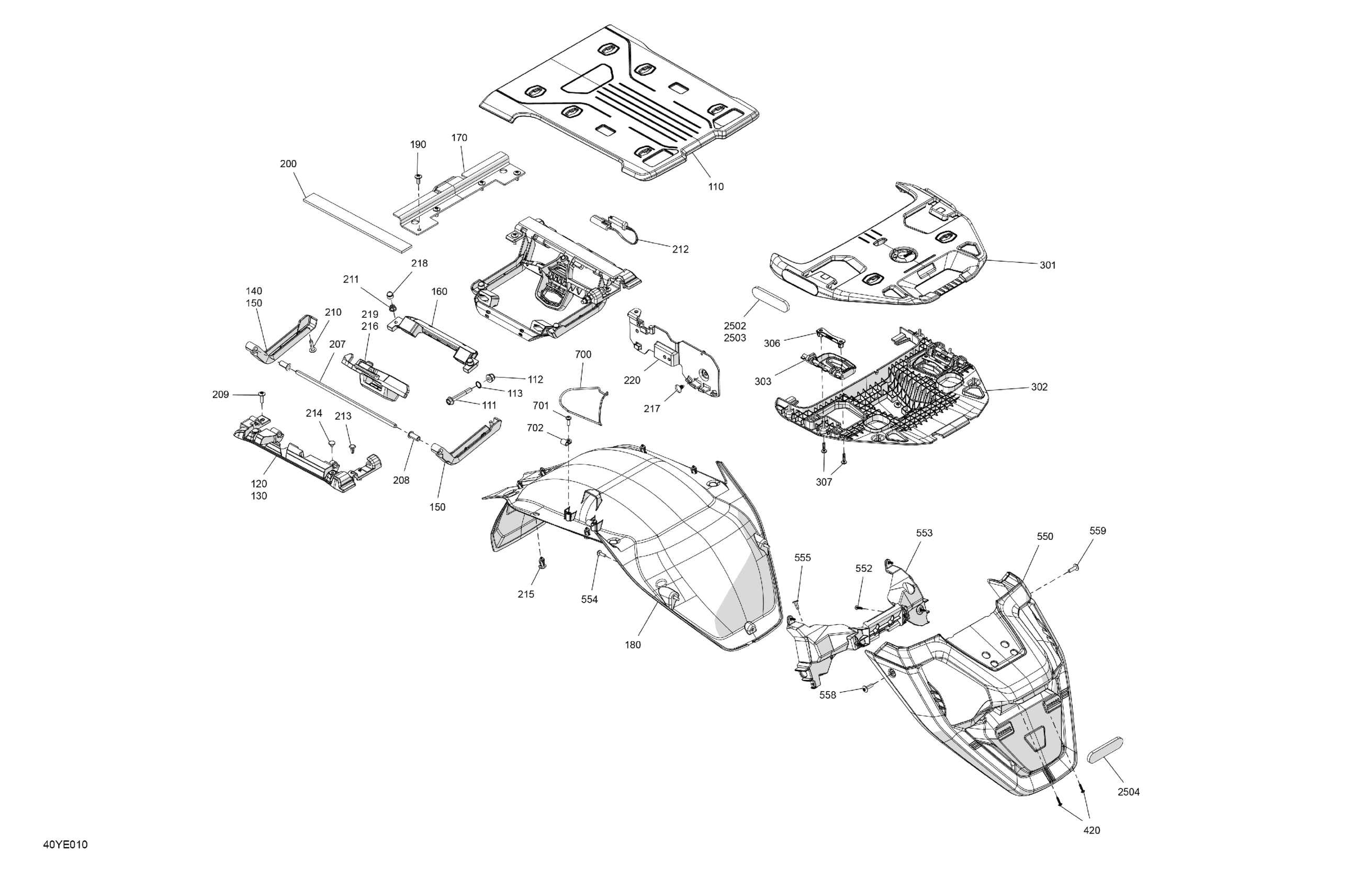

Can-Am CANYON REDROCK - J3SA - Moss Green, 2025 Body - Cargo Structure And Rear Fenders Diagram

Description

Price

110

Multi Purpose Plate

708304808

$90.00

111

Hex. Flange Screw M8 X 58

250000824

$1.74

112

Elastic Flange Nut M8

233281466

$0.83

113

O-Ring

293300013

$5.69

120

LH Rear Support

708304806

$45.00

130

RH Rear Support

708304807

$45.00

140

LH Rear Pivot Arm

708304804

$20.00

150

RH Rear Pivot Arm

708304805

$20.00

160

Rotating Link Arms

708304809

$48.00

170

Anchorage Support

708304881

$54.00

180

Wheel Arch

708304265

$57.00

190

Torx Head Screw M6 X 16

250000717

$1.74

200

Shim

708304353

$6.00

207

Pivot Arm Axle

708304342

$10.00

208

Shouldered Bushing

708304402

$14.00

209

Torx Screw M6 X 20

250000722

$1.34

210

Torx-Truss M/S M6 X 25

250001000

$4.33

211

Hex. Flange Elastic Nut M6

233261494

$1.26

212

Linq Position Sensor

705602303

$55.00

213

Dart, Fastex

293730024

$1.05

214

Rubber Stopper

293830243

$8.00

215

Tuflok Plastic Rivet

293150230

$1.21

216

LINQ Support

708304348

$54.00

217

Black, Dart

414644300

$0.78

218

Cap

269500806

$1.86

219

Linq Support

708304347

$54.00

220

Wiring Harness Support

708304781

$4.00

301

Rear Upper Plate

708304455

$32.00

302

Rear Bottom Plate

708304341

$36.00

303

Rear Fastener Linq

708304460

$20.00

306

Accessory Support

708305205

$17.00

307

Torx Screw Truss Head K50X20 T20

250000760

$1.74

420

Hex. Flange Screw K40 X 16

250001123

$2.06

550

Rear Fairing

708304352

$205.00

552

Hex. Flange Screw K40 X 16

250001123

$2.06

553

Fairing Support

708304827

$57.00

554

Torx Screw K50 X 16

250000720

$1.39

555

Dart, Fastex

293730024

$1.05

558

Torx Screw M6 X 20

250000722

$1.34

559

Torx Screw M6 X 20

250000722

$1.34

700

Strap

520003477

$4.00

701

Torx Screw K50 X 16

250000720

$1.39

702

Hose Clamp

293650257

$5.15

2502

Red, Reflector

705015551

$8.26

2503

Red, Reflector

705015551

$8.26

2504

Red, Reflector

705015551

$8.26
