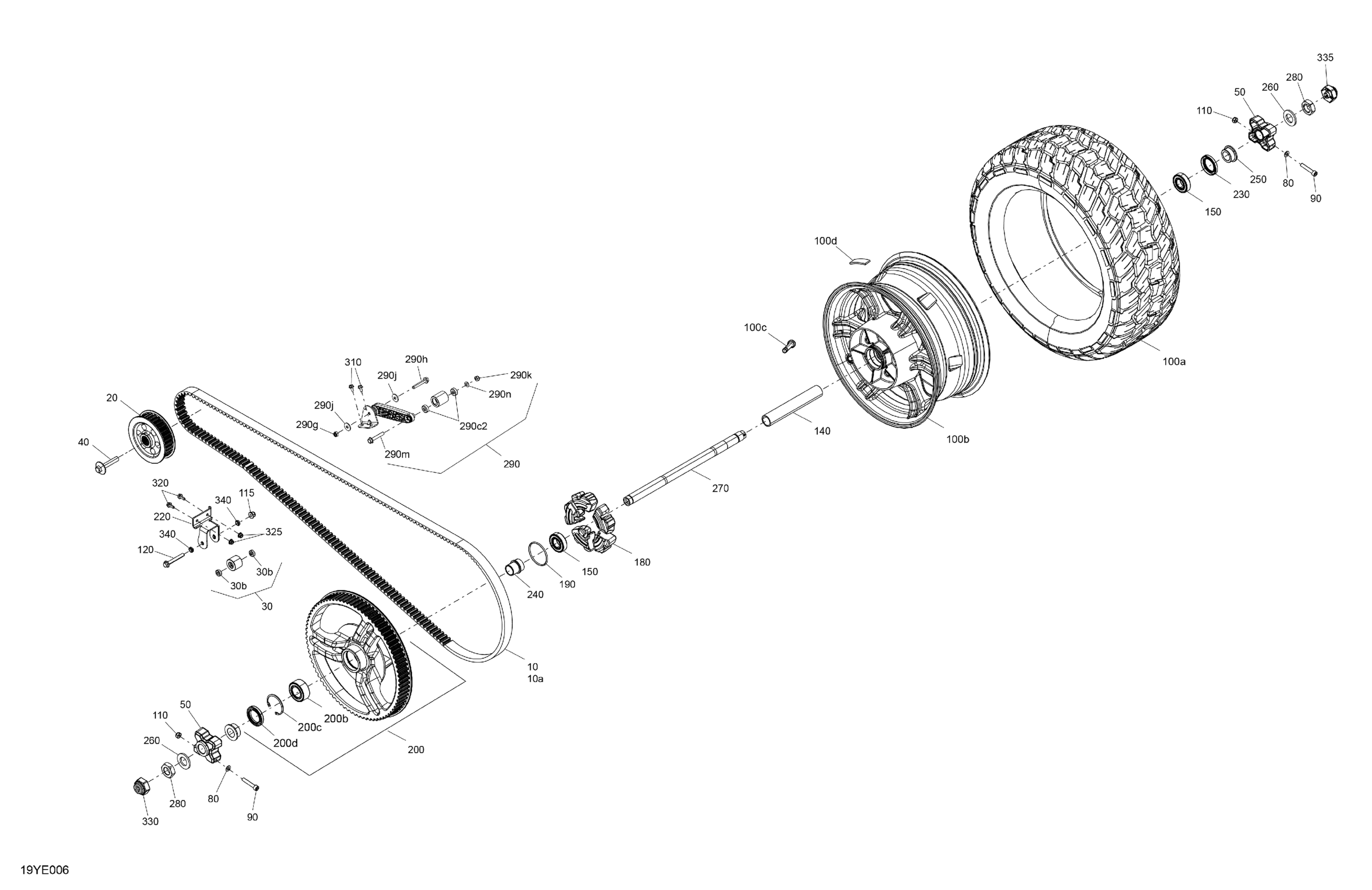

Can-Am CANYON REDROCK - J3SA - Moss Green, 2025 Drive - Rear - Common Parts Diagram

#

Description
Price

10

Drive Belt

705501304

$409.99

10a

Not Available As Spare Parts

XXX

Unavailable

20

Sprocket 28 Teeth

705503239

$159.99

30

Pulley Ass'y | Includes 30 to 30b

705503663

$109.99

30b

Ball Bearing

705601974

$7.49

40

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.22

50

Sliding Block

706005898

$14.82

80

Flat Washer 8 mm

234081410

$0.83

90

Socket Screw DIN.912

250000713

$2.85

100a

Rear Tire 225/50R15

705503391

$201.49

100b

Black, Rear Rim

705501992

$391.99

100c

Rim Valve With Cap

705400193

$8.69

100d

Balancing Weight

705503182

$4.69

110

Hex. Elastic Nut M8

250100141

$2.00

115

Hex. Flange Elastic Nut M10

233201436

$2.11

120

Hex. Flange Screw M10 X 65

207606536

$4.44

140

Spacer Tube

705502093

$17.59

150

Ball Bearing

293350186

$12.65

180

Shock Absorber Bushing

705503473

$21.49

190

O-Ring

293300124

$3.38

200

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$499.99

200b

Double Bearing Ball

293350152

$30.99

200c

Circlip

293370053

$9.95

200d

Seal

293200094

$10.33

220

Pulley Support

705504111

$24.49

230

Seal

293200094

$10.33

240

Spacer

705500853

$23.49

250

Spacer

705501602

$19.49

260

Flat Washer

250200163

$3.49

270

Rear Wheel Axle

705501691

$99.49

280

Hex. Jam Nut M24

250100170

$12.12

290

Idler Pulley Kit | Includes 290 to 290n

705503562

$109.99

290c2

Bearing

293350149

$5.89

290g

Hex. Elastic Stop Nut M8

232581414

$0.56

290h

Hex. Flange Screw M8 X 50

207685044

$1.69

290j

Flat Washer 8 mm

234082410

$1.47

290k

Hex. Elastic Stop Nut M8

232581414

$0.56

290m

Hex. Flange Screw M8 X 50

207685044

$1.69

290n

Flat Washer 8 mm

234081410

$0.83

310

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

320

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

325

Hex. Flange Nut M6

233061414

$1.68

330

Nut Cap

705502248

$8.15

335

Nut Cap

705502248

$8.15

340

Spacer

705503896

$19.49
