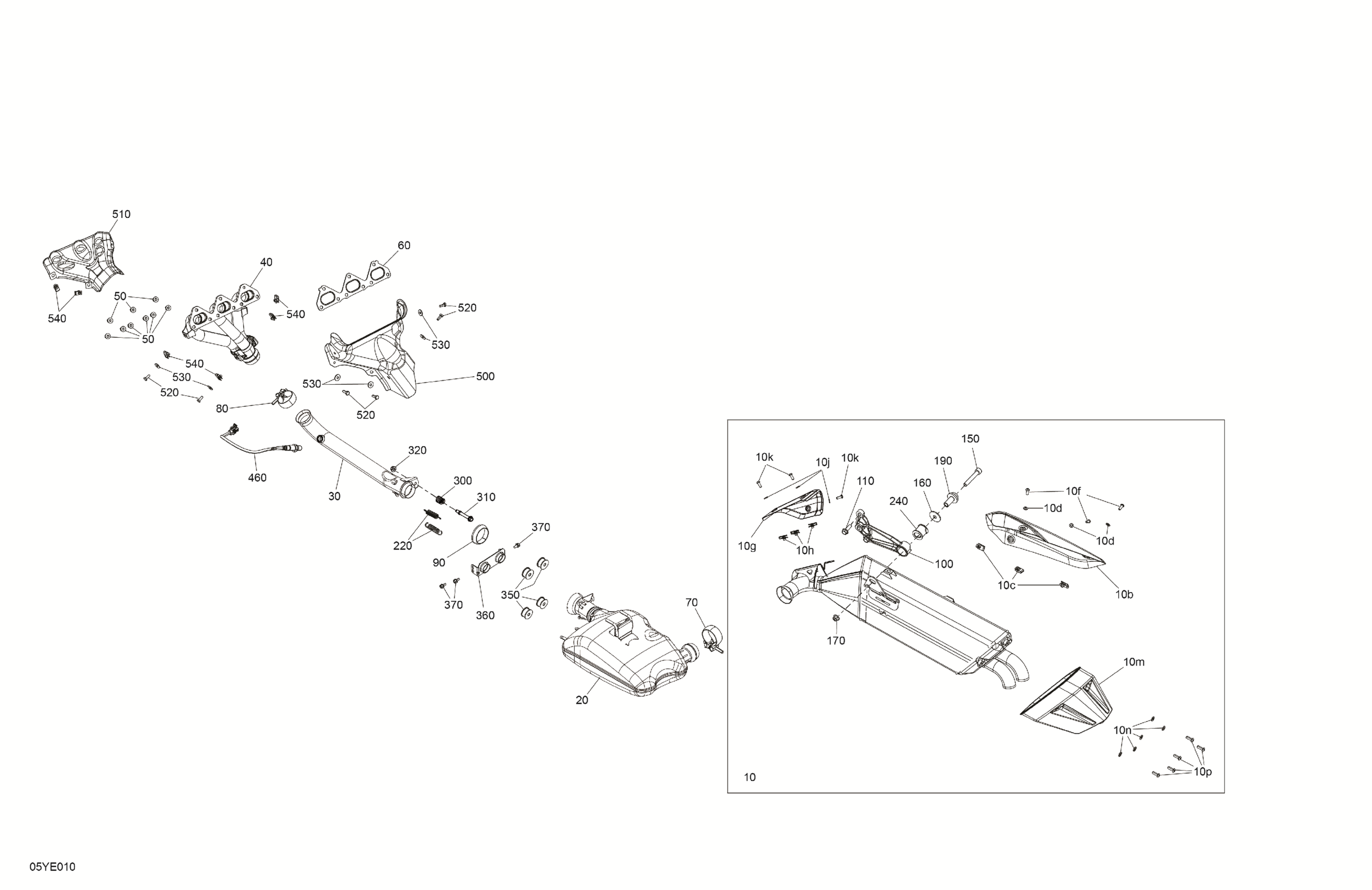

Can-Am CANYON REDROCK - J3SA - Moss Green, 2025 Engine - Exhaust Diagram

Carbon Black, Secondary Exhaust Muffler -Tx Ass'y | Includes 10 to 10p

707603696

$954.00

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.00

Panel Nut M6 X 1.0

250100198

$1.73

Black, Flat Washer 6 mm

234061670

$1.00

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

Carbon Black, Muffler Trim

707603616

$27.00

Panel Nut M6 X 1.0

250100198

$1.73

Black, Flat Washer 6 mm

234061670

$1.00

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.00

Black, Flat Washer 6 mm

234061670

$1.00

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

Primary Exhaust Muffler

707603784

$1,197.00

Exhaust Pipe Out

707603478

$339.00

Exhaust Manifold

707603565

$770.00

Hex. Flange Nut M8

233081416

$1.63

Exhaust Seal

707601985

$8.00

Exhaust Clamp

707600980

$23.05

Exhaust Clamp

707600980

$23.05

Exhaust Gasket

514054174

$27.66

Exhaust Support

707603445

$46.00

Hex. Flange Screw M8 X 25

207682544

$0.90

Socket Screw M10 X 60

244006060

$3.32

Washer 10 mm

506150000

$2.63

Hex. Flange Nut M10

233101600

$4.39

Black Bushing | Includes 240d to 240d2

707601657

$18.00

Spring

415107100

$6.20

Anti-Vibration Rubber

293830162

$13.00

Spring

707600682

$6.45

Hex. Flan. Screw Dogp. M10 X 80

250001312

$12.00

Hex. Flange Nut M10

233101414

$4.10

Anti-Vibration Rubber

707600702

$8.34

Front Bracket | Includes 360 to 360b1a

707600661

$13.00

Hex. Flange Screw M6 X 12

210261250

$1.56

Oxygen Sensor

707600872

$115.67

Heat Shield interior

707603641

$54.00

Heat Shield Exterior

707603642

$54.00

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

Flat Washer M6, Stainless

234062600

$0.64

Panel Nut M6 X 1.0

250100198

$1.73
