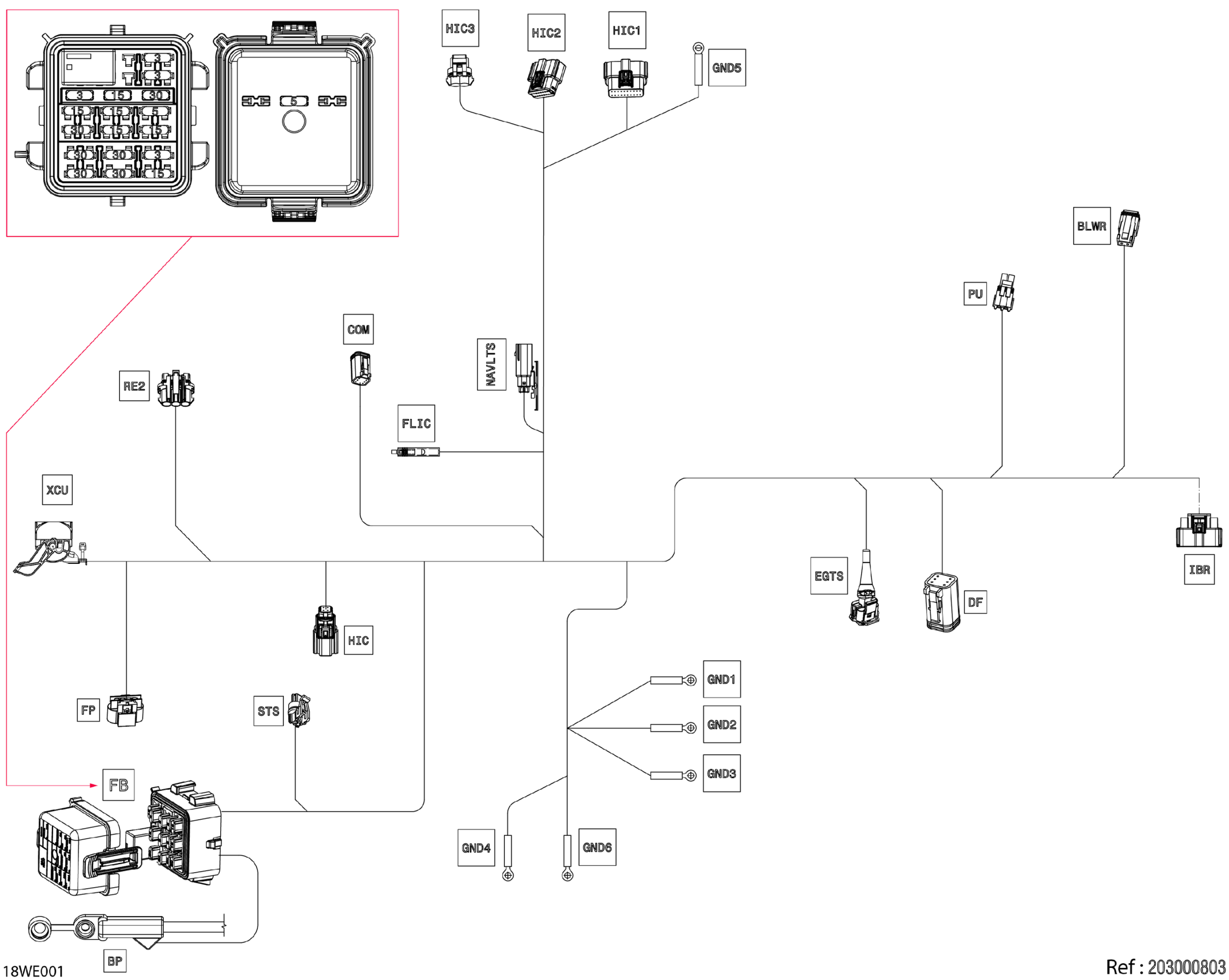

Sea-doo BASE Compact - 130 - 41SB - Can-Am Red - Trailer Paint - NO CAT - 2025 ELECTRIC - Main Harness - 278004499 Diagram

#

Description
Price

1000

WIRING HARNESS_MAIN

278004499

Unavailable

BLWR

Amphenol Female Connector 2 Cavities

515178579

$9.66

BLWR

Amphenol Lock Connector

515178580

$3.66

BLWR

Terminal

278003855

$12.22

BP

Positive Cable

278003888

Unavailable

COM

Female Housing 6 Circuits

710002706

$18.63

COM

Lock

710002705

$4.15

COM

Terminal

278003855

$12.22

COM

Female Terminal

710005438

$3.88

COM

Female Terminal

710005439

$4.15

DF

Female Housing 6 Circuits

710002706

$18.63

DF

Lock

710002705

$4.15

DF

Plug

710005437

$2.99

DF

Female Terminal

710005439

$4.15

DF

Female Terminal

710005438

$3.88

EGTS

Housing

710001136

$12.01

EGTS

Seal

415128501

$1.73

EGTS

Female Terminal

710001137

$4.28

FB

Fuse Box Cover

278003724

Unavailable

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 5 Amperes

710000742

$8.31

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 15 Ampere

710000745

$7.78

FB

Little Fuse, 3 AMP

710001008

$3.42

FB

Little Fuse, 3 AMP

710001008

$3.42

FB

Little Fuse, 3 AMP

710001008

$3.42

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Little Fuse, 30 Amperes

710000747

$7.78

FB

Fuse Base Ass'y

278003448

$30.57

FB

Seal Plug

278002880

$6.24

FB

Relay 30 Amp

278003828

$11.22

FB

Wire Seal

278000218

$4.00

FB

Wire Seal

710000048

$5.85

FB

Wire Seal

278001065

$5.85

FB

Female Terminal

515177177

$4.96

FB

Female Terminal

710000918

$5.85

FLIC

Insulated Sheath

278001007

$3.12

FLIC

Wire Seal

278000216

$2.93

FLIC

Female Terminal

710000421

$5.30

FP

Male Housing, 4 Circuits

278002185

$6.73

FP

Lock

710001222

$1.93

FP

Wire Seal

278002186

$5.18

FP

Female Terminal

278002187

$5.79

GND1

Open Barrel

278000992

$2.06

GND2

Terminal

710000913

$5.30

GND3

Open Barrel Terminal

278001392

$4.00

GND4

Open Barrel Terminal

278001392

$4.00

GND5

Open Barrel Terminal

278001392

$4.00

GND6

Terminal

710000913

$5.30

HIC

Female Housing, 4 circuits

278003535

$24.60

HIC

Female Terminal

515178014

$2.21

HIC

Female Terminal

515178018

$0.90

HIC1

Female Housing 20 Circuits

278002858

$22.98

HIC1

Sealing Cap

278002860

$1.63

HIC1

Female Terminal

515178014

$2.21

HIC1

Female Terminal

515178018

$0.90

HIC2

Connector Molex Mx150 16 Pos

710005979

Unavailable

HIC2

Sealing Cap

278002860

$1.63

HIC2

Female Terminal

515178014

$2.21

HIC2

Female Terminal

515178018

$0.90

HIC3

Housing

710001157

$16.39

HIC3

Lock

710001323

$5.90

HIC3

Wire Seal

710001159

$5.90

HIC3

Female Terminal

710001160

$5.90

IBR

Female Housing ,16 Circuits

278003484

$16.39

IBR

Seal Plug

278002880

$6.24

IBR

Sealing Cap

278002860

$1.63

IBR

Seal

278003046

$0.85

IBR

Female Terminal

278003045

$2.69

IBR

Female Terminal

515178018

$0.90

NAVLTS

Clip

278003549

$2.01

NAVLTS

Housing 6 Circuits

278003866

$12.70

NAVLTS

Male Terminal

515178013

$2.93

NAVLTS

Male Terminal

515178293

$13.60

PU

Male Connector, 2 Circuits

278000220

$12.66

PU

Wire Seal

278000218

$4.00

PU

Female Terminal

409007300

$0.42

RE2

Female Housing, 3 Circuits

710000879

$24.60

RE2

Seal

710000881

$16.39

RE2

Seal

278003685

$13.40

RE2

Female Terminal

710000877

$7.25

STS

Female Housing, 2 Circuits

515177192

$7.25

STS

Lock

710001152

$4.00

STS

Seal Wire

710001153

$2.06

STS

Terminal

710000925

$2.93

XCU

Cover

515178601

$16.39

XCU

Housing 56 Circuits

515178595

$27.58

XCU

Plate

515178604

$4.16

XCU

Plug

515178599

$2.99

XCU

Plug

515178600

$2.99

XCU

Plate

515178603

$4.16

XCU

Terminal

515178596

$3.79

XCU

Terminal

515178598

$3.69

XCU

Terminal

515178597

$14.52
