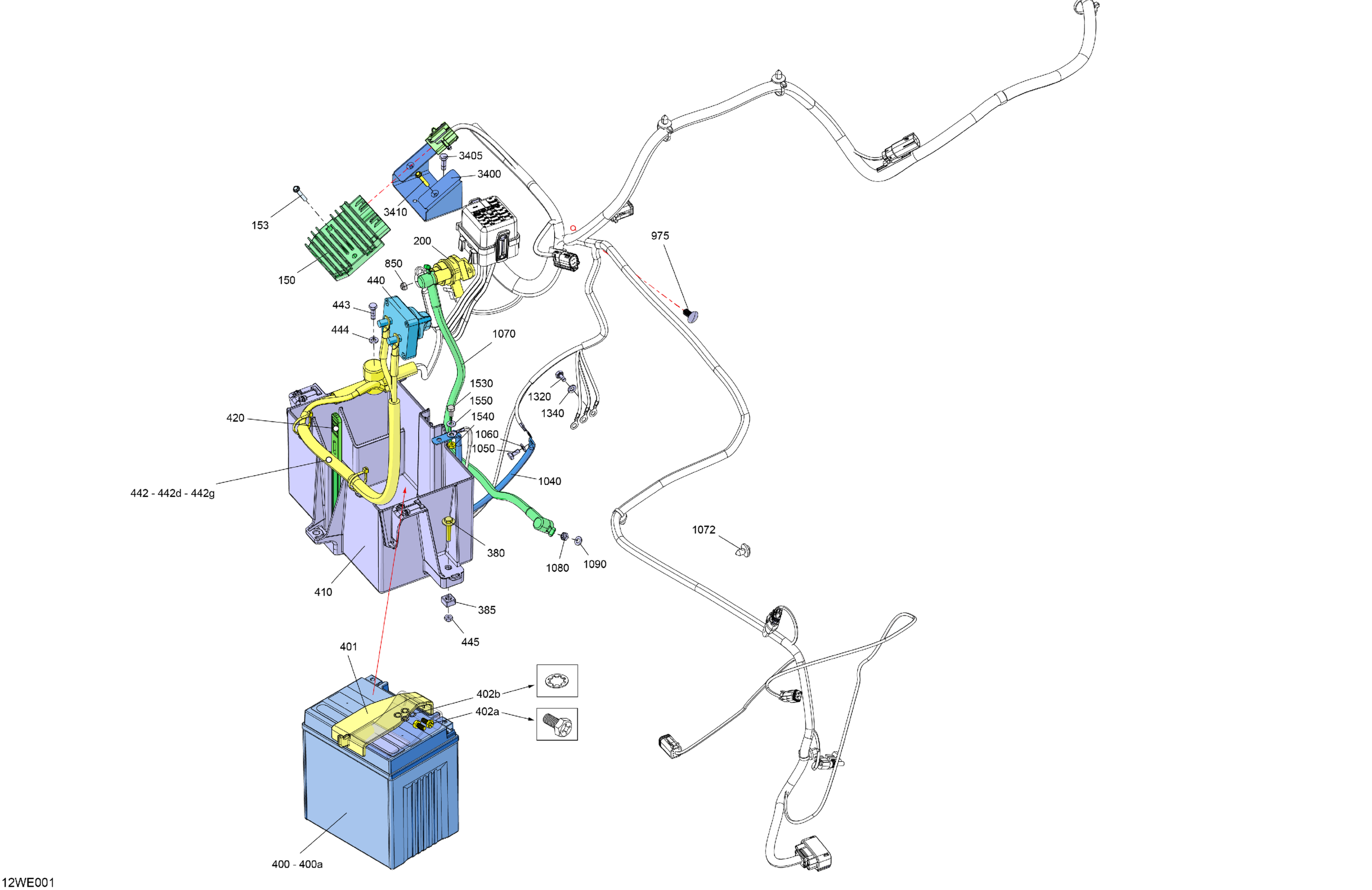

Sea-doo BASE Compact - 130 - 41SB - Can-Am Red - Trailer Paint - NO CAT - 2025 ELECTRIC - Electric Lower Section Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

153

Hex. Flange Screw K50 X 25

250000680

$1.72

200

Starter Relay

278003012

$35.07

380

Hex Screw SEMS M6X35, SS

250000969

$1.74

385

Nut Housing M6 | Includes 555 to 555b

269502544

$5.91

400

Battery | Includes 900 to 900a

515176151

$174.17

400a

Battery Bolt Kit

515176081

$5.10

401

Clip

278004284

$14.27

402a

Screw | Not Shown

710009084

$1.52

402b

Washer | Not Shown

710009082

$1.02

410

Battery Support

278004264

$63.02

420

Strap

269502417

$14.27

440

Switch

278004300

$69.20

442

Battery Wiring Harness | Includes 442 to 442g

278004320

$36.89

442d

Shrink Tubing, 6 mm

515177246

$1.02

442g

Protector Cap | STD Models

710001829

$9.72

443

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

444

Stainless Flat Washer M6

234061600

$0.25

445

Elastic Stop Nut M6, Brass

232561200

$3.51

850

Elastic Stop Nut M6, Brass

232561200

$3.51

975

Black Dart

293730010

$0.81

1040

Negative Cable

278004389

Unavailable

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1072

Mount Dart

710008294

$1.02

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

3400

Voltage Regulator Support

278004170

$55.35

3405

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

3410

Hex. Flange Screw K50 X 25

250000680

$1.72
