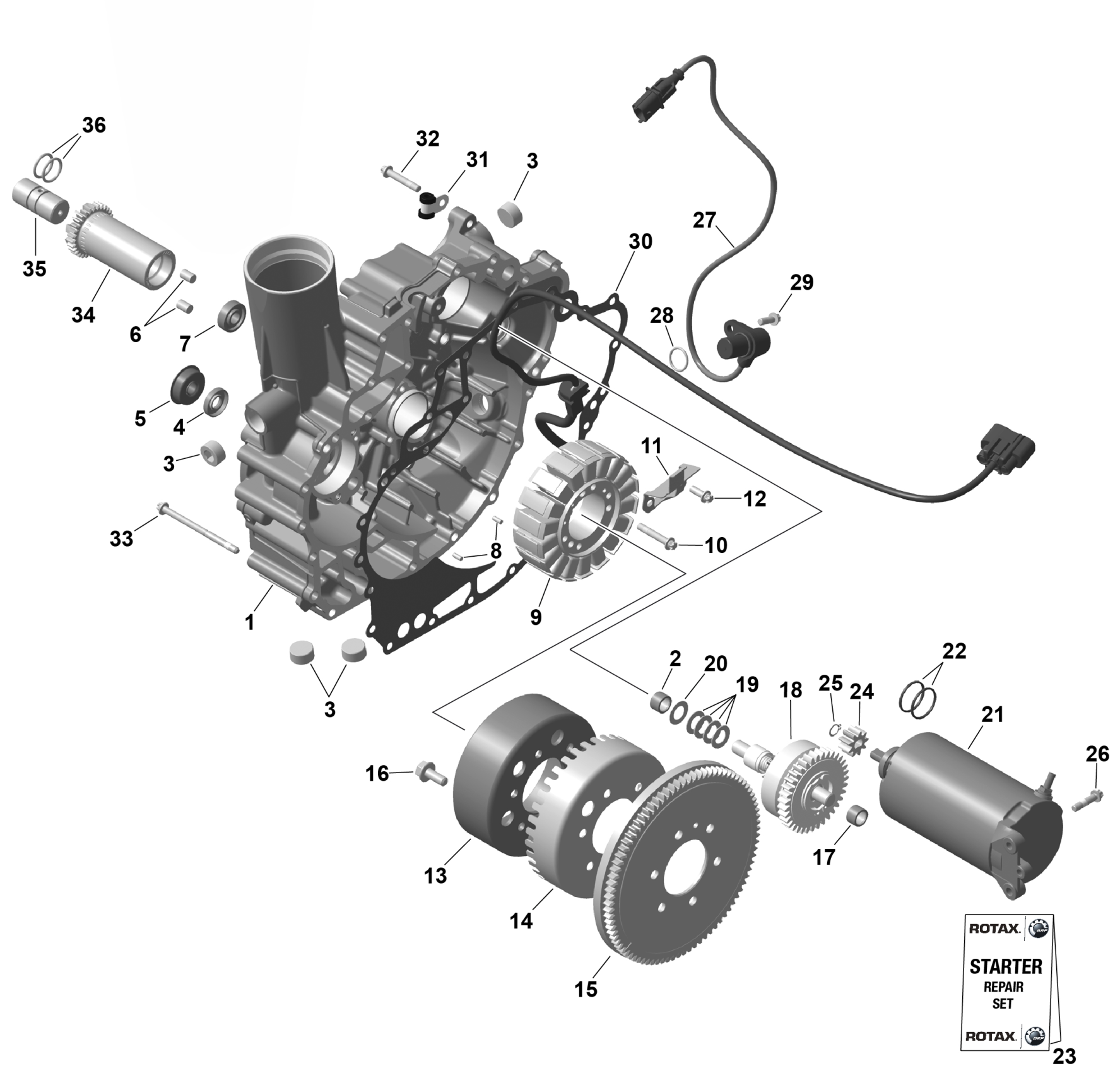

Sea-doo BASE Compact - 130 - 41SB - Can-Am Red - Trailer Paint - NO CAT - 2025 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing / Drive Cover Ass'y 1603 NA | Includes no. 1-8

420912422

$505.94

2

Needle Bushing

420232482

$17.88

3

Plug Screw M20 X 1.5

420641317

$12.15

4

Oil Seal

420650316

$11.04

5

Rotary Seal

420650371

$41.01

6

Center Pin 8 X 12

420632010

$3.52

7

Double Sealed Bearing

420232103

$13.94

8

Needle Pin

420929070

$1.79

9

Stator Plate

420889728

$319.49

10

Torx Flange Screw M6 X 35

420641258

$3.19

11

Retaining Plate

420926303

$1.12

12

Torx Flange Screw M6 X 16

420641048

$2.82

13

Magneto Flywheel

420296900

$461.99

14

Trigger Wheel

420966851

$17.13

15

Starter Gear, 86 Teeth

420835163

$276.84

16

Hex Screw

295501162

$13.16

17

Needle Bushing

420232482

$17.88

18

Starter Drive

420888041

$246.24

19

Spring Disk | Includes no. 18-19

420238307

$26.84

19

Spring Washer

420238300

$7.01

20

Thrust Washer

420827280

$7.90

21

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

22

O-Ring

420631310

$4.15

23

Carbon Brush Set

420881340

$60.42

24

Starter Gear, 9 Teeth

420834522

$68.63

25

Retaining Ring

420845601

$4.28

26

Torx Flange Screw M6 X 25

420641238

$3.07

27

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

28

O-Ring

420431580

$14.10

29

Torx Flange Screw M6 X 16

420641048

$2.82

30

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

31

Clamp

420853414

$17.13

32

Torx Flange Screw M6 X 35

420641258

$3.19

33

Torx Flange Screw M6 X 85

420641228

$7.01

34

Input Shaft

420820462

$104.45

35

Spacer

420244034

$19.37

36

O-Ring

420250056

$0.72
