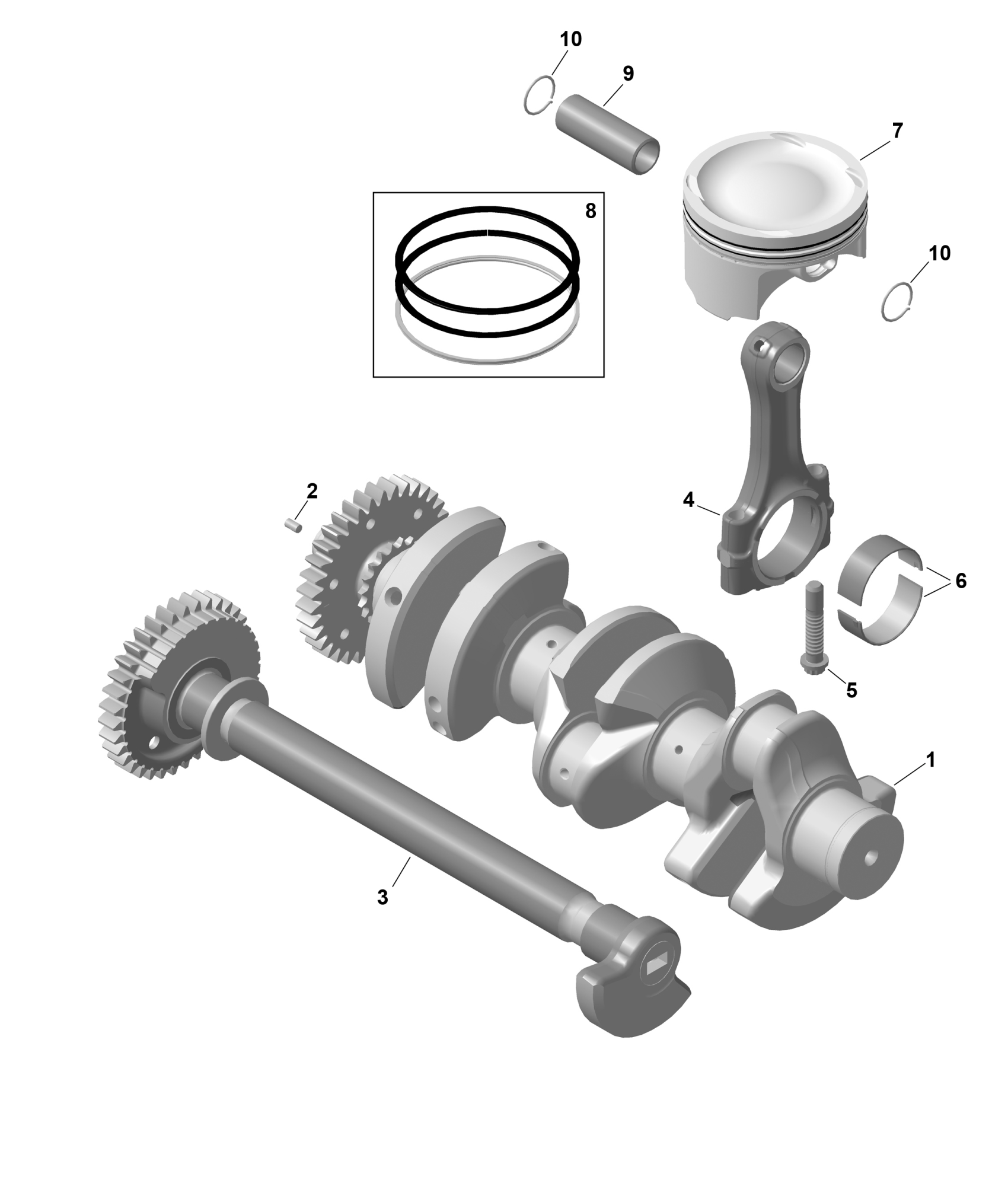

Sea-doo BASE Compact - 130 - 41SB - Can-Am Red - Trailer Paint - NO CAT - 2025 ROTAX - Crankshaft and Pistons Diagram

#

Description
Price

1

Crankshaft | Includes no. 1-2

420819498

$1,011.49

2

Drive Pin 5 X 10

420929650

$1.54

3

Balance Shaft Ass'y

420820276

$578.33

4

Connecting Rod Ass'y | Includes no. 4-5

420917779

$271.49

5

Connecting Rod Screw M10 X 1

420640996

$10.78

6

Half-Bearing

420933523

$16.39

7

Piston Ass'y 99.96MM | Includes no. 7-8

420686542

$223.10

8

Piston Ring Set

420686548

$81.99

9

Piston Pin

420916473

$31.31

10

Piston Circlip

420245436

$4.97
