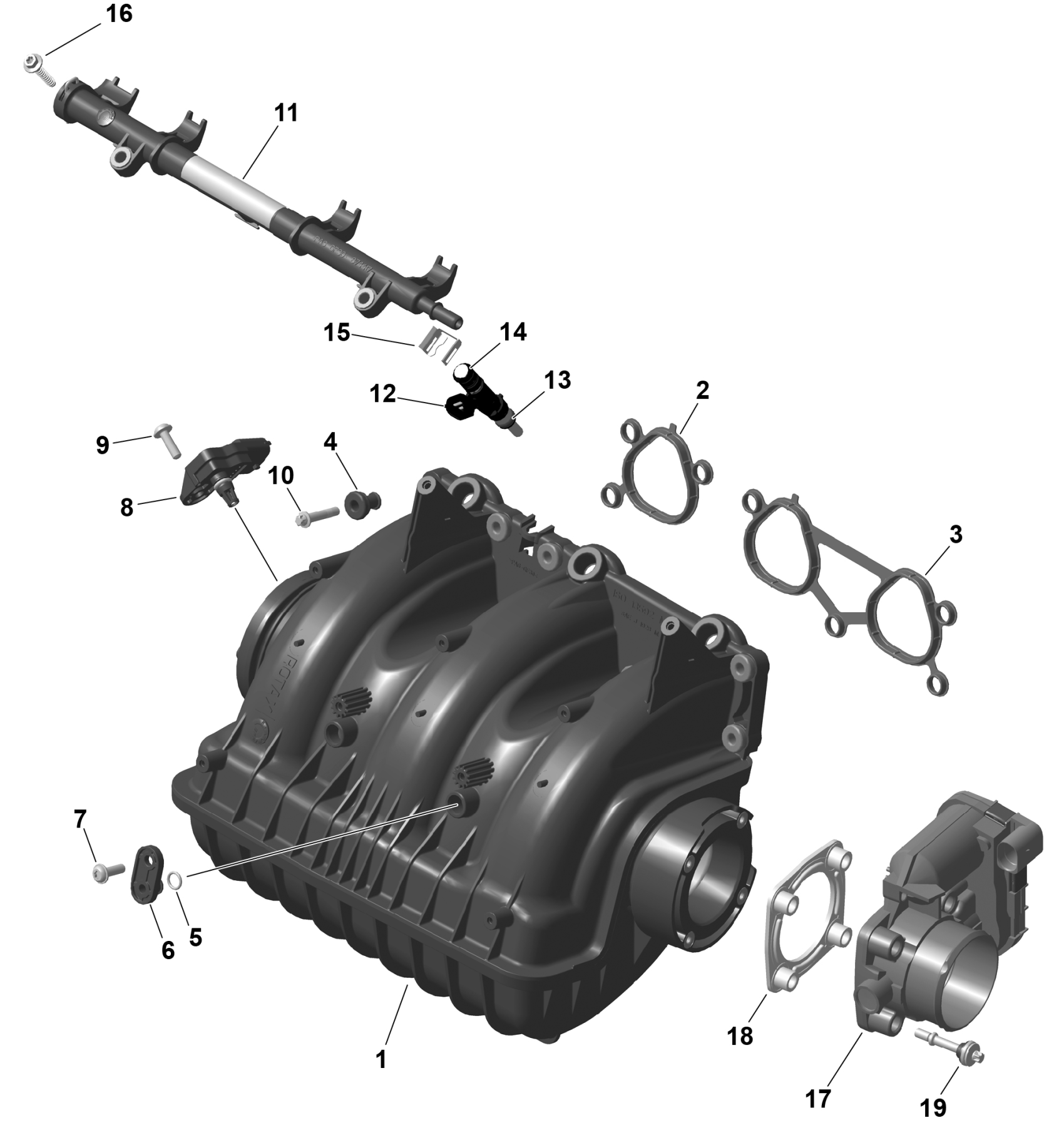

Sea-doo BASE Compact - 130 - 41SB - Can-Am Red - Trailer Paint - NO CAT - 2025 ROTAX - Air Intake Manifold And Throttle Body Diagram

Description

Price

Induction Manifold | Includes no. 1-7

420867976

$535.04

Intake Manifold Gasket | Included in gasket kit

420950742

$29.82

Gasket | Included in gasket kit

420950743

$18.63

Distance Sleeve Ass'y

420629173

$19.37

O-Ring

420230463

$0.96

Cover

420460980

$2.68

Torx Flange Screw M6 X 20

420841103

$2.91

Pressure Sensor And Air Temperature

515178563

$154.45

Torx Flange Screw M6 X 20

420841103

$2.91

Torx Flange Screw M6 X 30

420840663

$5.42

Fuel Rail Ass'y

420874416

$21.61

Injector | Includes no. 12-14

420874000

$177.58

O-Ring

420831050

$5.18

O-Ring

420831060

$10.27

Injector Clip

420853030

$2.82

Torx Screw 6X30

420441575

$2.91

Throttle Body Socket Ass’y

420892592

$461.16

Rubber Gasket

420950792

$10.21

Allen Screw M6 x 30,5

420440561

$4.21
