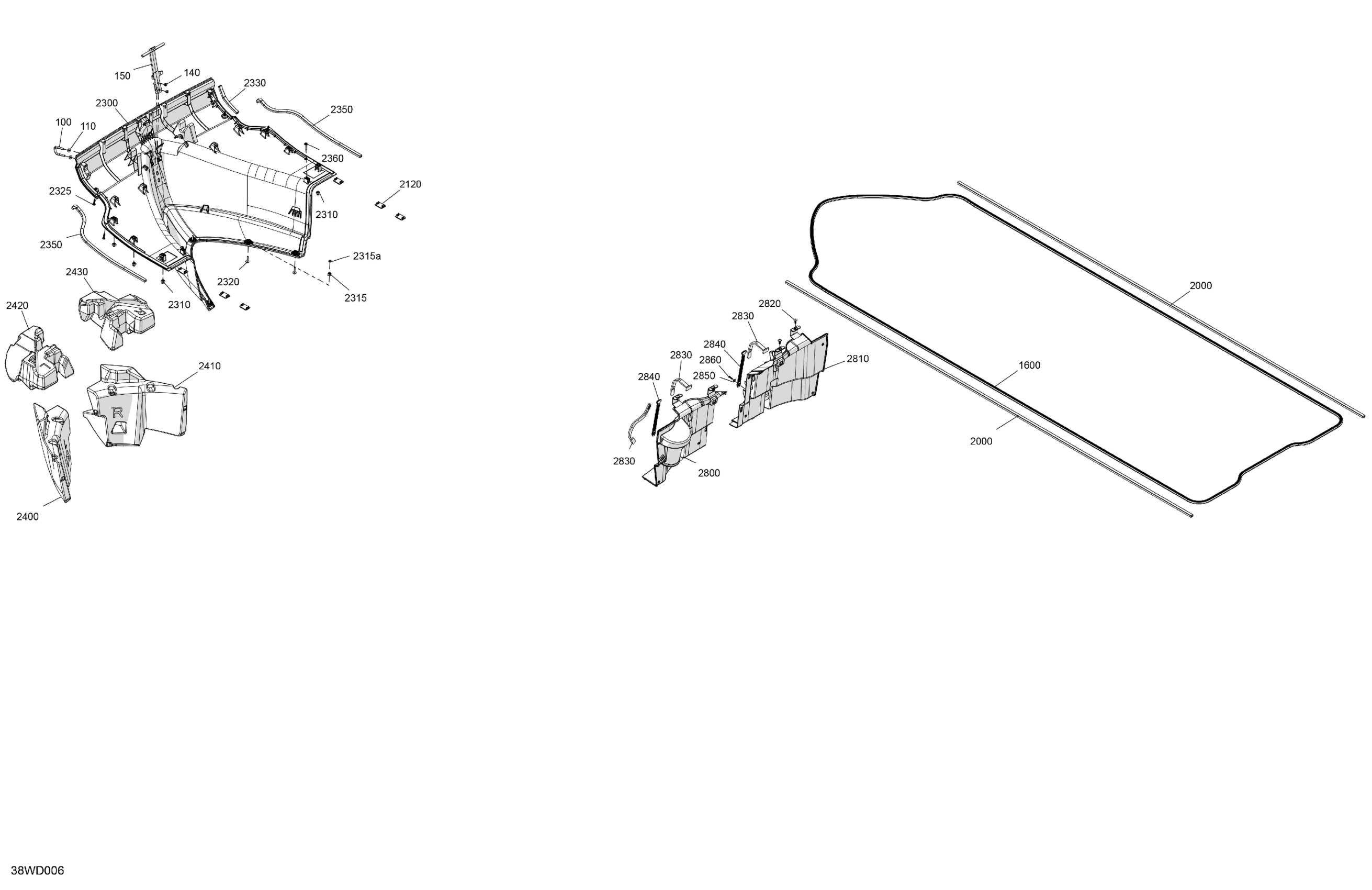

Sea-doo BASE Compact - 130 - 41RA - Red - Trailer Paint - NO CAT, 2024 HULL - Deflector Diagram

Description

Price

100

U-Clamp

292000933

$37.28

110

Flat Washer M8.5 x 18

293050001

$1.48

140

Hex. Elastic Nut M8 Brass

232581200

$1.48

150

Retaining Plate

291005455

Unavailable

1600

Weather Strip

292002300

Unavailable

2000

Gasket

292002677

$27.58

2120

Hull Cap

292002415

Unavailable

2300

Hull Deflector

291004894

$565.64

2310

Platite Insert 6.81

291005889

Unavailable

2315

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2315a

Elastic Stop Nut M6, Brass

232561200

$4.03

2320

Hex Screw SEMS M6X35, SS

250000969

$2.00

2325

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

2330

Gasket

292002677

$27.58

2350

Gasket

292002677

$27.58

2360

Hexagonal Cap Screw M6 X35

250000399

$4.15

2400

LH Float Deflector

291005580

Unavailable

2410

RH Deflector Float

291005581

Unavailable

2420

LH Front Hull Float

291005871

Unavailable

2430

RH Front Hull Float

291005872

Unavailable

2800

LH Seperation Panel

292002386

Unavailable

2810

RH Seperation Panel

292002387

Unavailable

2820

Black, Dart

293730006

$0.93

2830

Strap

269502417

$16.39

2840

Retaining Strap

520002814

$40.27

2850

Flat Washer M6, Stainless

234062600

$0.73

2860

Hex. Flange Screw K50 X 20

241152060

$1.81
