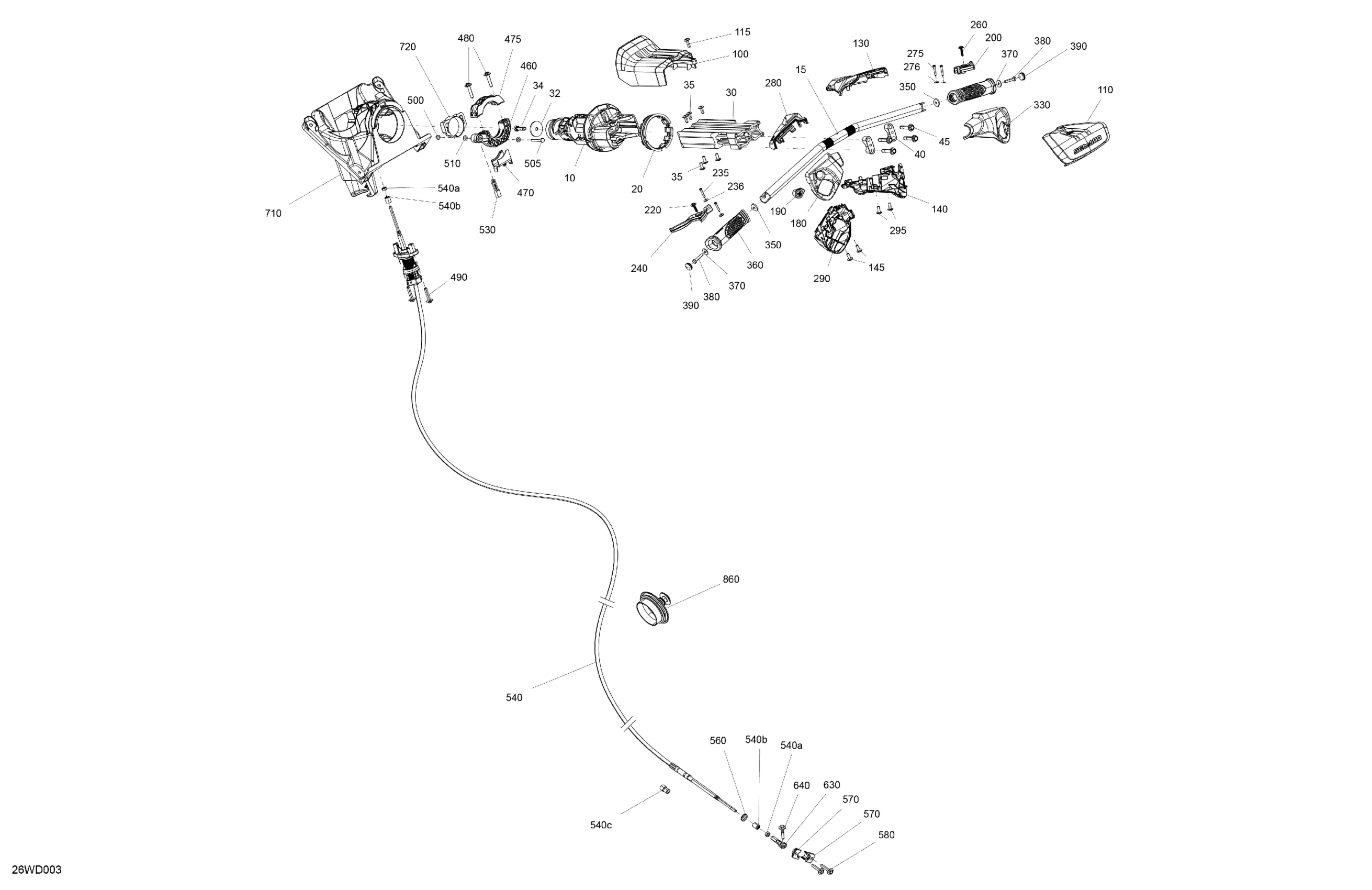

Sea-doo BASE Compact - 130 - 41RA - Red - Trailer Paint - NO CAT, 2024 HELM - Steering Diagram

#

Description
Price

10

Steering Column

277002111

$167.02

15

Bent Handlebar

281000031

Unavailable

20

Wear Ring

277001874

$9.74

30

Anodized Handlebar Riser Block

277002183

$73.82

32

Flat Washer M8.4 x 40

250200188

$4.98

34

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

35

Torx Truss Screw M6 X 16

250000922

$1.56

40

Steering Support | Includes 40 to 40a

506152751

$10.09

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.25

100

Steering Column Trim

277002200

$11.14

110

Steering Pad

277002331

$55.35

115

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

130

RH Upper Housing

277002040

$85.77

140

RH Lower Housing

277002036

$79.92

145

Torx Truss Screw M6 X 16

250000922

$1.56

180

LH Cover

277002314

$13.62

190

Red Button Switch

277002327

$7.46

200

Hand Lever Accelerator

277002138

$30.52

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

235

Hex. Flange Screw K40 X 25

241142560

$2.17

236

Flat Washer 4 mm, Stainless

234042600

$0.92

240

Reverse Handle

277001945

$34.42

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

275

Hex. Flange Screw K40 X 25

241142560

$2.17

276

Flat Washer 4 mm, Stainless

234042600

$0.92

280

LH Upper Housing

277002041

$85.77

290

LH Lower Housing

277002035

$79.92

295

Torx Truss Screw M6 X 16

250000922

$1.56

330

RH Cover

277002315

$13.62

350

Insert Grip Handle

277001863

$7.70

360

Handlebar Grip

277002286

$14.92

370

Flat Washer M6, Stainless

234062600

$0.64

380

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

390

Black, Cap

277000203

$7.48

460

Steering Arm

277002319

$7.19

470

Spacer

277001654

$11.40

475

C Clamp

277002085

$7.19

480

Hexagonal Cap Screw M6 X35

250000399

$3.61

490

Hexagonal Cap Screw M6 X35

250000399

$3.61

500

Nut Flange Elastic M6

233261200

$0.82

505

Hex. Screw M6 X 40

207064060

$1.40

510

Stainless Flat Washer M6

234061600

$0.25

530

Ball Joint

277001180

$27.92

540

Steering Cable | Includes 540 to 540c

277002136

Unavailable

540a

Hex. Nut 1/4"-28

211100056

$0.56

540b

Wiper Rod

277001582

$8.83

540c

End Piece

277001583

$11.14

560

Rubber Washer

293830063

$1.51

570

Ring Halves

277001856

$9.85

580

Hexagonal Cap Screw M6 X35

250000399

$3.61

630

Ball Joint

277000775

$40.27

640

Hex Sems Screw M6X35

250000970

$1.74

710

Steering Column Support

277002168

$40.27

720

Wear Ring

277002318

$12.43

860

Cable Boot

293720116

$4.60
