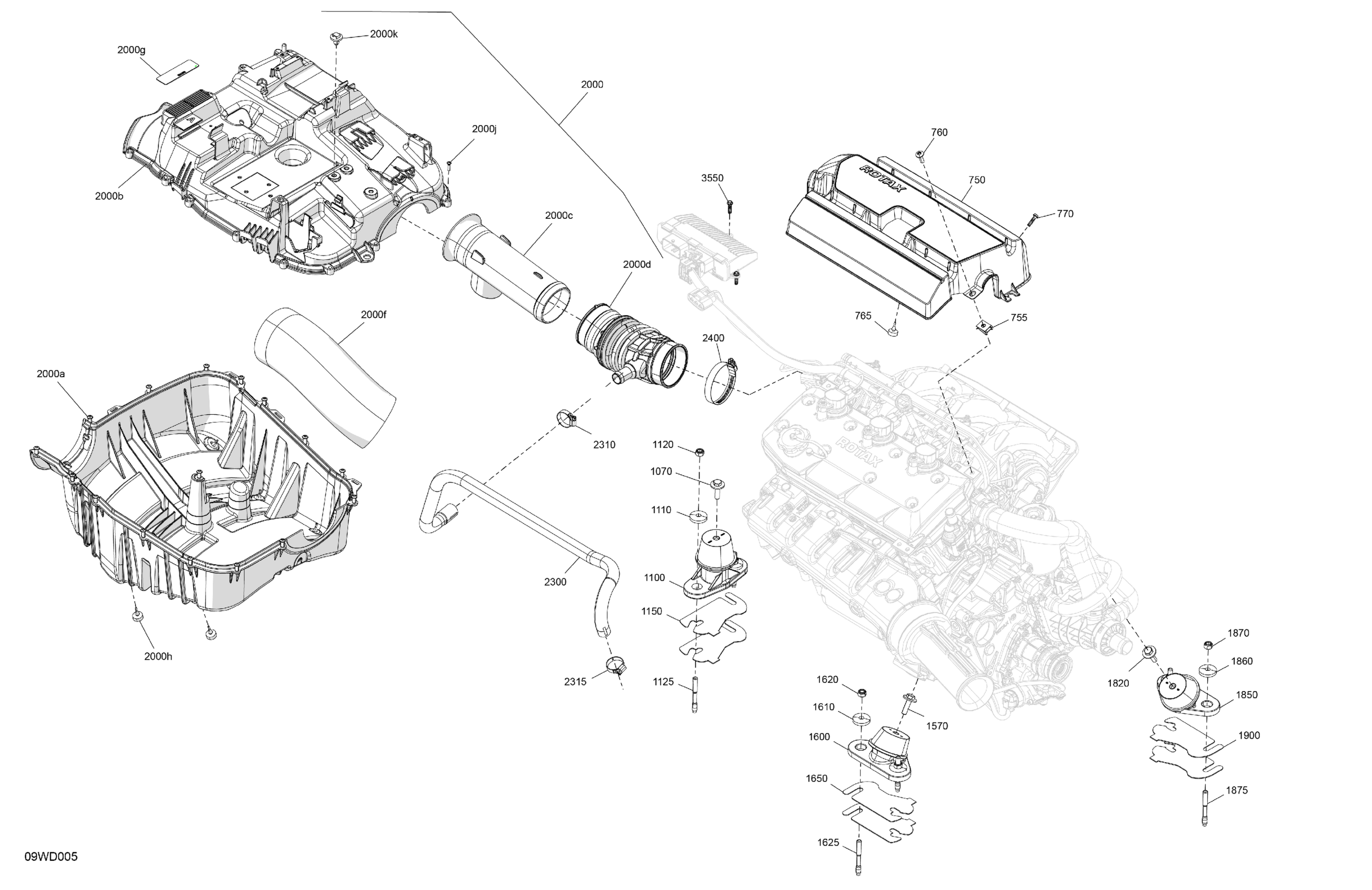

Sea-doo North America - BASE Compact - 130 - 41RA - Red - Trailer Paint - NO CAT, 2024 02- MECHANICS - Engine Diagram

Description

Price

750

Engine Cover

270001174

$38.99

755

Panel Nut M6 X 1

420942108

$14.28

760

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

765

Rubber Stopper

708000759

$4.19

770

Hex. Flange Screw K50 X 20

241152060

$1.99

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1100

Engine Support Ass'y

270001096

$97.99

1110

Cone Washer

250200018

$5.61

1120

Hex. Elastic Nut M8 Brass

232581200

$2.22

1125

Stud M8X1.25X70.5 S.GRIP

250001156

$17.56

1150

Shim 1.3 mm

270000762

$12.99

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hex. Elastic Nut M8 Brass

232581200

$2.22

1625

Stud M8X1.25X70.5 S.GRIP

250001156

$17.56

1650

Shim 1.3 mm

270000762

$12.99

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hex. Elastic Nut M8 Brass

232581200

$2.22

1875

Stud M8X1.25X70.5 S.GRIP

250001156

$17.56

1900

Shim 1.3 mm

270000762

$12.99

2000

Intake Silencer Ass'y | Includes 2000 to 2000k

273000438

$129.99

2000a

Lower Intake Silencer

273000446

$71.99

2000b

Upper Intake Silencer

273000447

$71.99

2000c

Intake Duct Silencer Int

273000445

$49.99

2000d

Intake Duct Silencer Out

273000439

$47.99

2000f

Intake Duct Silencer In

273000425

$48.99

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$4.19

2000j

Flange Torx Screw K40 X 16

250000287

$2.11

2000k

Mount Dart

710008294

$1.04

2300

Formed Hose

270001071

$47.49

2310

Gear Clamp

293650284

$4.44

2315

Clamp Gear

293650285

$3.27

2400

Tridon Clamp

293650179

$11.49

3550

Flange Torx Screw K40 X 16

250000287

$2.11
