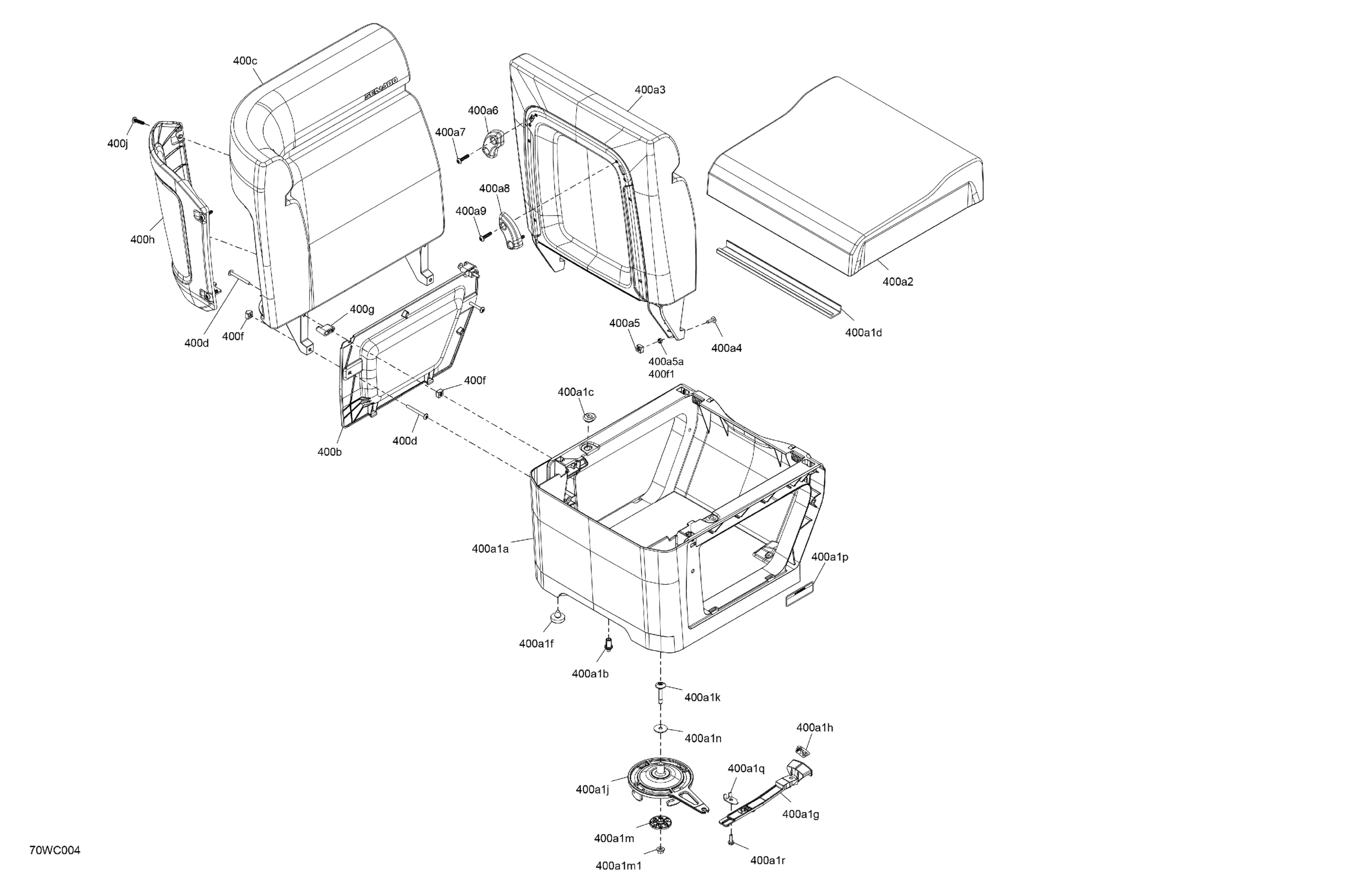

Sea-doo North America - BASE Compact - 130 - 41PN - Blue - Trailer Galv - NO CAT, 2023 07- FURNITURE - Seat Corner Backrest (LH) Diagram

Description

Price

400a1a

Seat Support Service Kit

295101127

$379.99

400a1b

Locator Rod

269003492

$6.09

400a1c

Oval Washer

705000321

$5.61

400a1d

Gutter

269003483

$2.89

400a1f

Rubber Stopper

269003502

$6.89

400a1g

Lever Latch Service Kit

295101126

$24.99

400a1h

Lever Decal

219905993

Unavailable

400a1j

Seat Anchorage

269003311

$19.99

400a1k

Torx Head M8 X 50 S.GRIP

250001154

$12.11

400a1m

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

400a1m1

Hex. Flange Nut M8

233181600

$1.05

400a1n

Flat Washer 8 mm

250200130

$3.17

400a1p

Seat Anchorage Warning Label

219905883

Unavailable

400a1q

Guide

269003887

$10.99

400a1r

Hex. Flange Screw M6.81 x 20

243162060

$3.72

400a2

Seat Cushion Ass'y

269003224

$279.99

400a3

Backrest Ass'y

269003305

$349.99

400a4

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.69

400a5

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

400a5a

Elastic Stop Nut M6, Brass

232561200

$4.23

400a6

LH Rubber Stopper

269003903

$3.69

400a7

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

400a8

RH Rubber Stopper

269003904

$3.69

400a9

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

400b

LH Panel Seat Switch Kit

295101046

$44.99

400c

LH Seat Corner Kit M

295101045

$320.99

400d

Torx Screw M6 X 60

250000631

$4.61

400f

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

400f1

Elastic Stop Nut M6, Brass

232561200

$4.23

400g

Spacer

293900146

$2.09

400h

LH Exterior Support

269003509

$73.99

400j

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11
