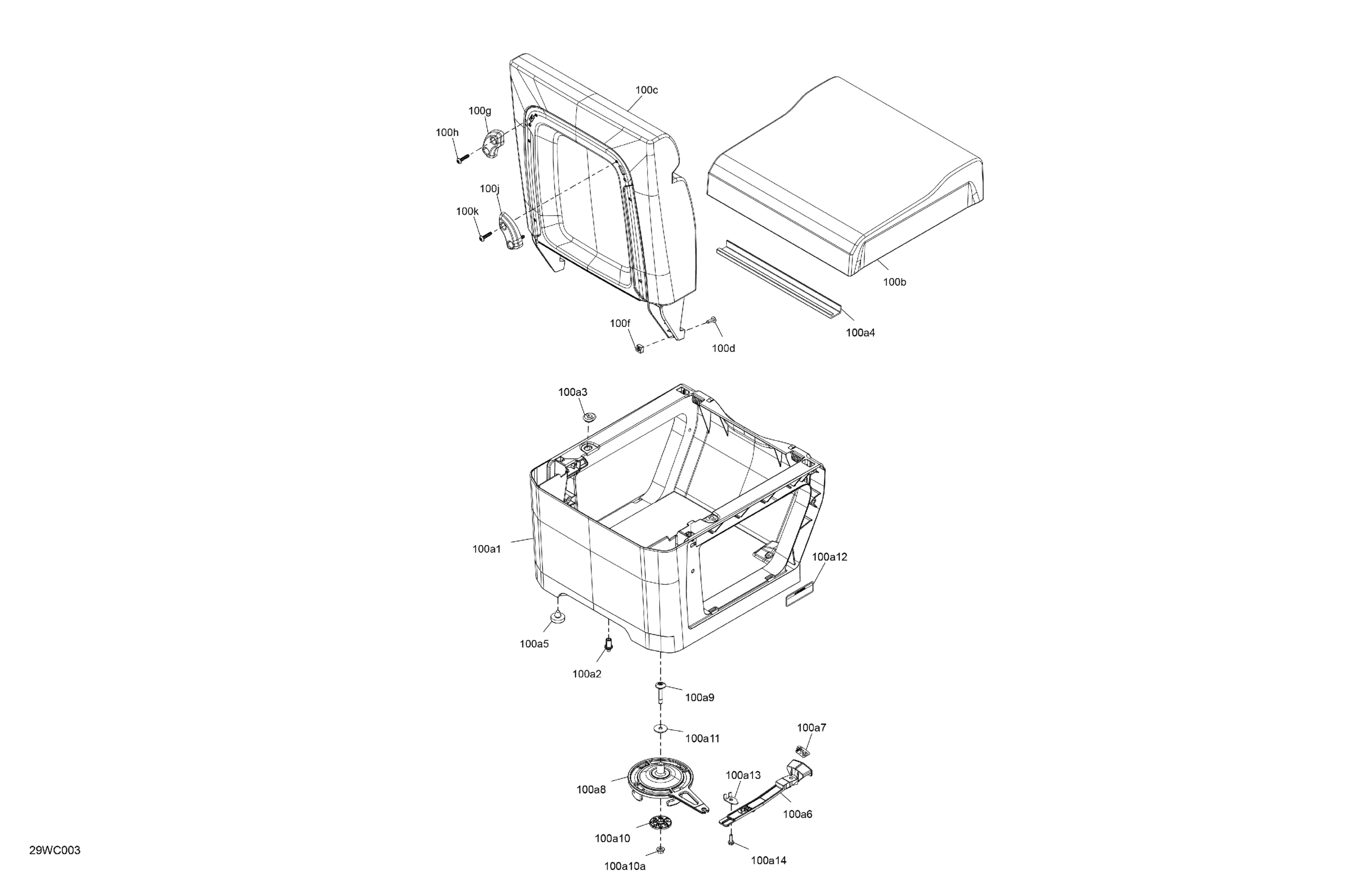

Sea-doo BASE Compact - 130 - 41PJ - Blue - Trailer Paint - NO CAT, 2023 FURNITURE - Single Seat Diagram

Description

Price

100a1

Seat Support Service Kit

295101127

Unavailable

100a2

Locator Rod

269003492

$5.40

100a3

Oval Washer

705000321

$5.33

100a4

Gutter

269003483

$2.61

100a5

Rubber Stopper

269003502

$6.18

100a6

Lever Latch Service Kit

295101126

Unavailable

100a7

Lever Decal

219905993

Unavailable

100a8

Seat Anchorage

269003311

$16.39

100a9

Torx Head M8 X 50 S.GRIP

250001154

$10.10

100a10

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

100a10a

Hex. Flange Nut M8

233181600

$0.99

100a11

Flat Washer 8 mm

250200130

$3.00

100a12

Seat Anchorage Warning Label

219905883

Unavailable

100a13

Guide

269003887

$9.70

100a14

Hex. Flange Screw M6.81 x 20

243162060

$3.79

100b

Seat Cushion Ass'y

269003224

Unavailable

100c

Backrest Ass'y

269003305

$349.99

100d

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.33

100f

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.07

100g

LH Rubber Stopper

269003903

$3.61

100h

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

100j

RH Rubber Stopper

269003904

$3.61

100k

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85
