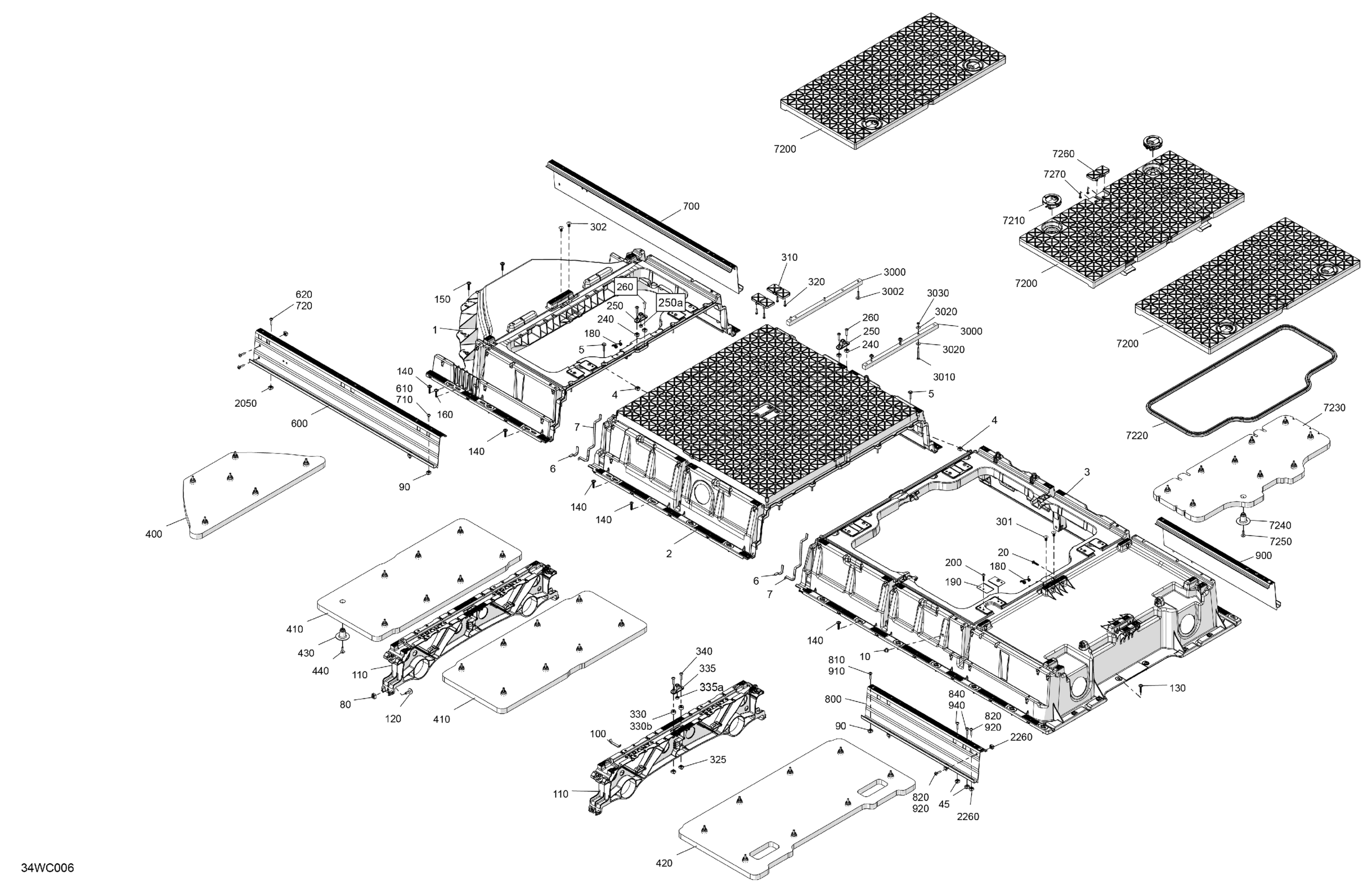

Sea-doo BASE Compact - 130 - 41PJ - Blue - Trailer Paint - NO CAT, 2023 HULL - Frame Diagram

#

Description
Price

1

Front Chassis

291005606

Unavailable

2

Central Chassis

291004648

Unavailable

3

Rear Frame Service Kit

295101120

Unavailable

4

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

5

Hex Screw SEMS M6X35, SS

250000969

$2.00

6

Gasket

293250099

$6.30

7

Gasket

293250099

$6.30

10

Grommet

293720029

$1.30

20

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

45

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

80

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

90

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

100

Gasket 3000Mm Long

219704378

$25.34

110

Crossmember

291004980

Unavailable

120

Hexagonal Screw M8 X 30

250000888

$3.00

130

Sems Plastite Torx Screw M6.81X35

250001152

$4.45

140

Sems Plastite Torx Screw M6.81X35

250001152

$4.45

150

Sems Plastite Torx Screw M6.81X35

250001152

$4.45

160

Sems Plastite Torx Screw M6.81X35

250001152

$4.45

180

Torsion Spring

291005695

Unavailable

190

Lock Plate

291005582

Unavailable

200

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

240

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

250

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

250a

Hex Nut M8

232081200

$1.19

260

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

301

Black Dart

293730010

$0.93

302

Black Dart

293730010

$0.93

310

Double Tile Cap

291005630

Unavailable

320

Hex. Screw 10-14 X 7/8”

211000023

$3.34

325

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

330

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.79

330a

Screw-Socket Shoulder M8X8

250000775

$7.54

330b

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.79

335

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

335a

Hex Nut M8

232081200

$1.19

340

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

400

Front Chassis Acoustic Insulation

291005476

Unavailable

410

Central Chassis Acoustic Insulation

291005477

Unavailable

420

Rear Chassis Acoustic Insulation

291005478

Unavailable

430

Fastener

291005474

$3.13

440

Hexagonal Cap Screw M6 X 25

250000978

$4.15

600

Side Member 112 CM

291005221

Unavailable

610

Truss Cone Torx Screw M6 X 30

250000924

$7.06

620

Truss Cone Torx Screw M6 X 30

250000924

$7.06

700

Side Member 112 CM

291005222

Unavailable

710

Truss Cone Torx Screw M6 X 30

250000924

$7.06

720

Truss Cone Torx Screw M6 X 30

250000924

$7.06

800

Side Member 68 CM

291005223

Unavailable

810

Truss Cone Torx Screw M6 X 30

250000924

$7.06

820

Truss Cone Torx Screw M6 X 30

250000924

$7.06

840

Truss Cone Torx Screw M6 X 30

250000924

$7.06

900

Side Member 68 CM

291005224

Unavailable

910

Truss Cone Torx Screw M6 X 30

250000924

$7.06

920

Truss Cone Torx Screw M6 X 30

250000924

$7.06

940

Truss Cone Torx Screw M6 X 30

250000924

$7.06

2050

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2260

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

3000

Chassis Reinforcement

281000134

$30.57

3002

Hexagonal Cap Screw M6 X35

250000399

$4.15

3010

Hex. Screw M6 x 55

207065560

$0.96

3020

Flat Washer M6, Stainless

234062600

$0.73

3030

Elastic Stop Nut M6, Brass

232561200

$4.03

7200

Access Cover

291004653

$206.69

7210

Latch Ass'y

291005473

$25.34

7220

Weather Strip

293250624

$34.30

7230

Acoustic Insulation Cover

291005475

$35.79

7240

Fastener

291005474

$3.13

7250

Hexagonal Cap Screw M6 X 25

250000978

$4.15

7260

Double Tile Cap

291005630

Unavailable

7270

Hex. Screw 10-14 X 7/8”

211000023

$3.34
