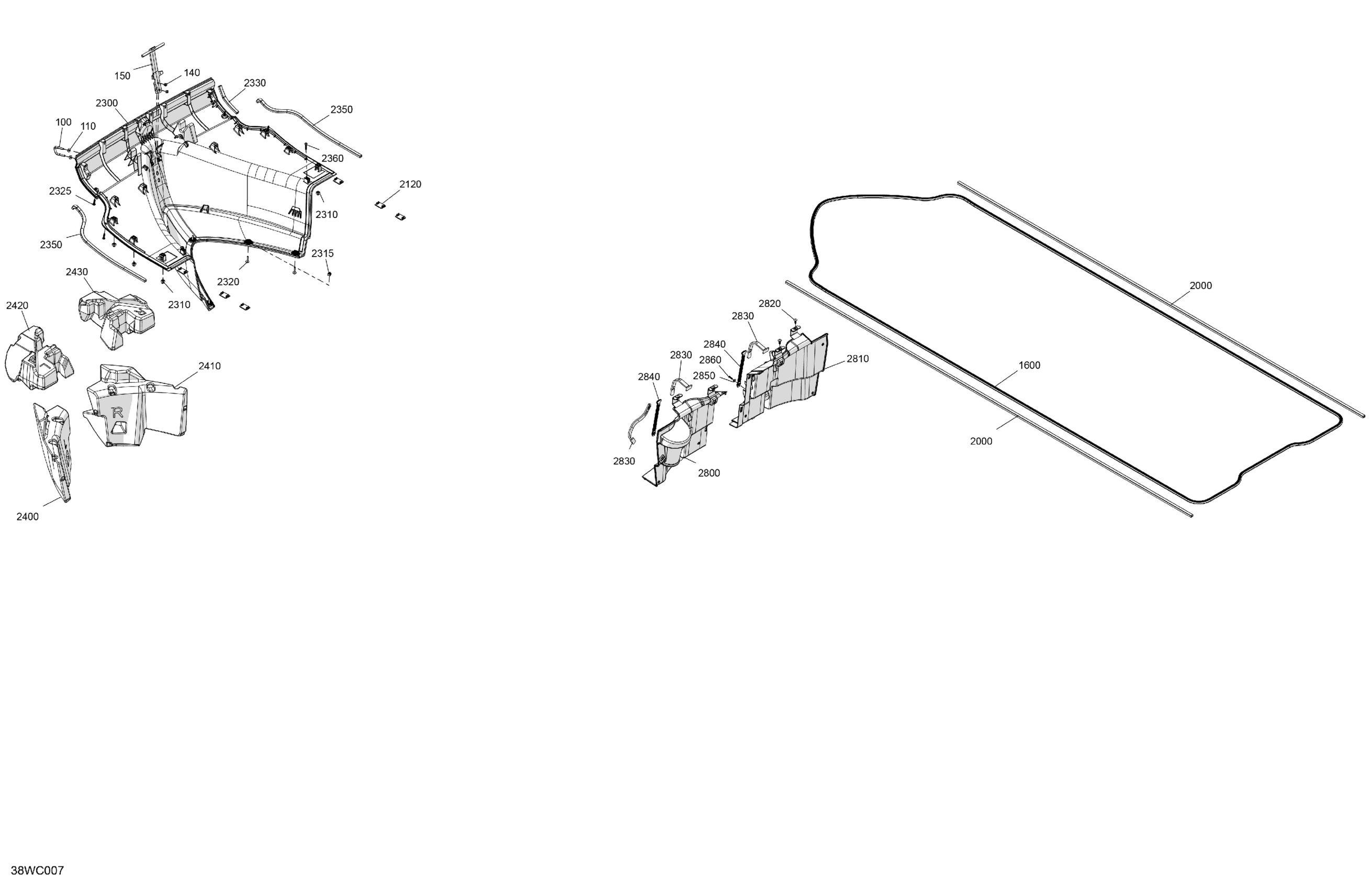

Sea-doo North America - BASE Compact - 130 - 41PJ - Blue - Trailer Paint - NO CAT, 2023 06- HULL - Deflector Diagram

Description

Price

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

140

Hex. Elastic Nut M8 Brass

232581200

$2.22

150

Retaining Plate

291005455

$19.99

1600

Weather Strip

292002300

$64.99

2000

Gasket

292002677

$30.99

2120

Hull Cap

292002415

$14.49

2300

Hull Deflector

291004894

$589.99

2310

Platite Insert 6.81

291005889

$5.82

2315

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2320

Hex Screw SEMS M6X35, SS

250000969

$2.11

2325

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

2330

Gasket

292002677

$30.99

2350

Gasket

292002677

$30.99

2360

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

2400

LH Float Deflector

291005580

$53.99

2410

RH Deflector Float

291005581

$56.99

2420

LH Front Hull Float

291005871

$27.99

2430

RH Front Hull Float

291005872

$27.99

2800

LH Seperation Panel

292002386

$104.99

2810

RH Seperation Panel

292002387

$104.99

2820

Black, Dart

293730006

$0.99

2830

Strap

269502417

$17.69

2840

Retaining Strap

520002814

$44.99

2850

Flat Washer M6, Stainless

234062600

$0.77

2860

Hex. Flange Screw K50 X 20

241152060

$1.99
