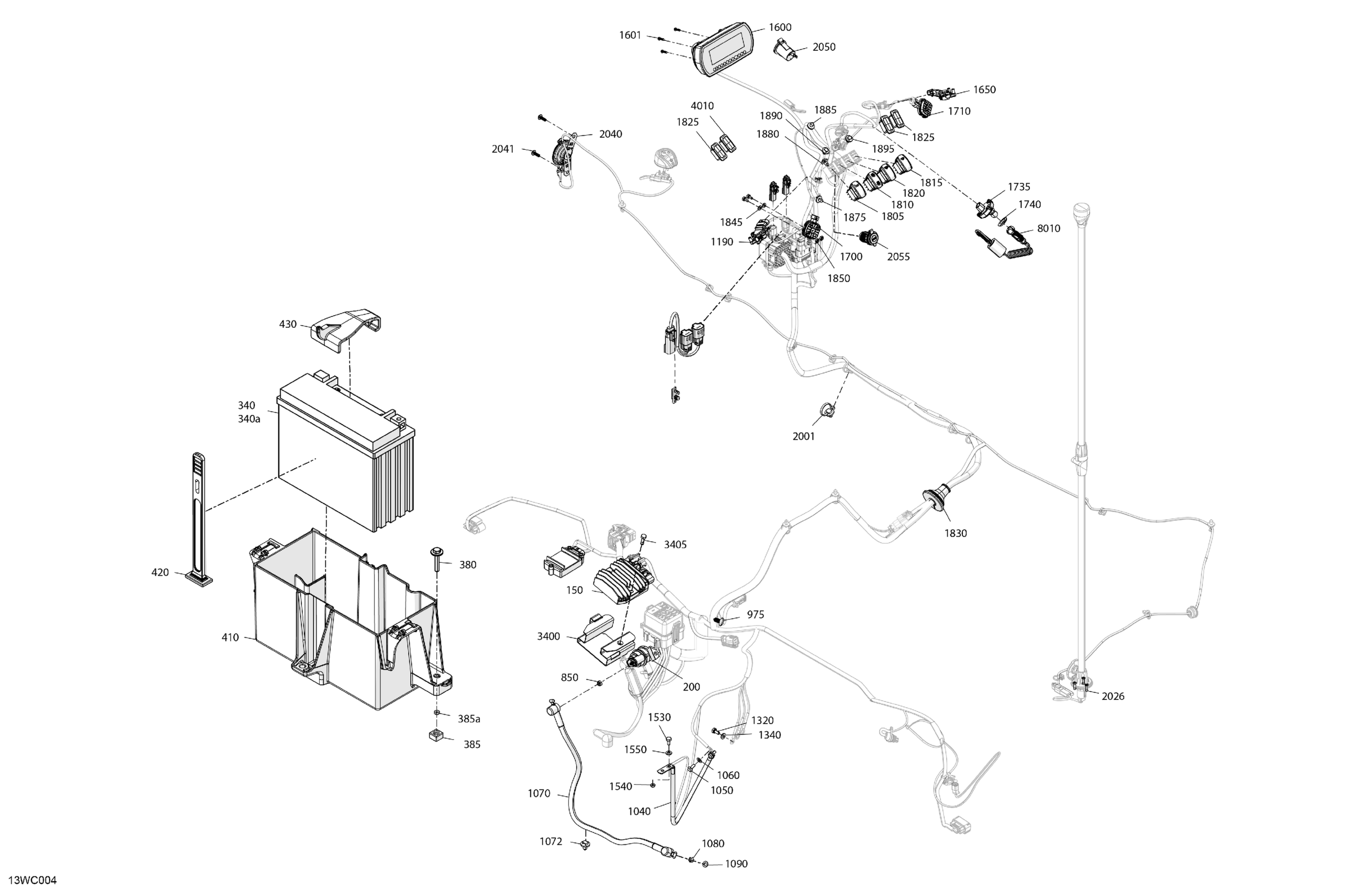

Sea-doo BASE Compact - 130 - 41PJ - Blue - Trailer Paint - NO CAT, 2023 MECHANICS - Electric Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

200

Starter Relay

278003012

$42.49

340

Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1

219800519

$142.98

340a

Battery Bolt Kit | Not Shown

219800542

$7.51

380

Hex Screw SEMS M6X35, SS

250000969

$2.11

385

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

385a

Elastic Stop Nut M6, Brass

232561200

$4.23

410

Battery Support

278003887

$80.99

420

Strap

269502417

$17.69

430

Clip

278004299

$17.62

850

Elastic Stop Nut M6, Brass

232561200

$4.23

975

Black Dart

293730010

$0.99

1040

Negative Cable

278003918

$38.99

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1060

Stainless Flat Washer M6

234061600

$0.33

1070

Starter Cable

278003369

$39.99

1072

Mount Dart

710008294

$1.04

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1540

Elastic Stop Nut M6, Brass

232561200

$4.23

1550

Stainless Flat Washer M6

234061600

$0.33

1600

Multifunction Mono Compact Gauge

278003430

$599.99

1601

Hex. Flange Screw K50 X 20

241152060

$1.99

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278003821

$126.99

1710

RH Switch Keypad

278003474

$126.99

1735

Terminal DESS One Wire

515179305

$74.99

1740

Specialized Nut

278004274

$3.28

1805

Horn Switch

278003690

$52.99

1810

Nav & Anchor Light Switch

278003691

$35.49

1815

Pump Switch

278003692

$55.99

1820

Vent Switch

278003693

$46.49

1825

Cap

278004011

$3.29

1830

Cable Grommet

293720092

$13.49

1845

Stainless Flat Washer M6

234061600

$0.33

1850

Elastic Stop Nut M6, Brass

232561200

$4.23

1875

Mount Dart

710008294

$1.04

1880

Mount Dart

710008294

$1.04

1885

Mount Dart

710008294

$1.04

1890

Mount Dart

710008294

$1.04

1895

Mount Dart

710008294

$1.04

2001

Anchorage Tie Wrap

293750103

$4.65

2026

Pop Rivet 3/16"

293150005

$0.52

2040

Horn

278003906

$54.99

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

2050

12V Power Outlet

710005374

$33.99

2055

USB Outlet

219400510

$42.99

3400

Voltage Regulator Support

278004087

$55.99

3405

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

4010

Cap

278004011

$3.29

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99

8030

Cord Cut Off Switch Tether | Not Shown

278004223

$31.99
