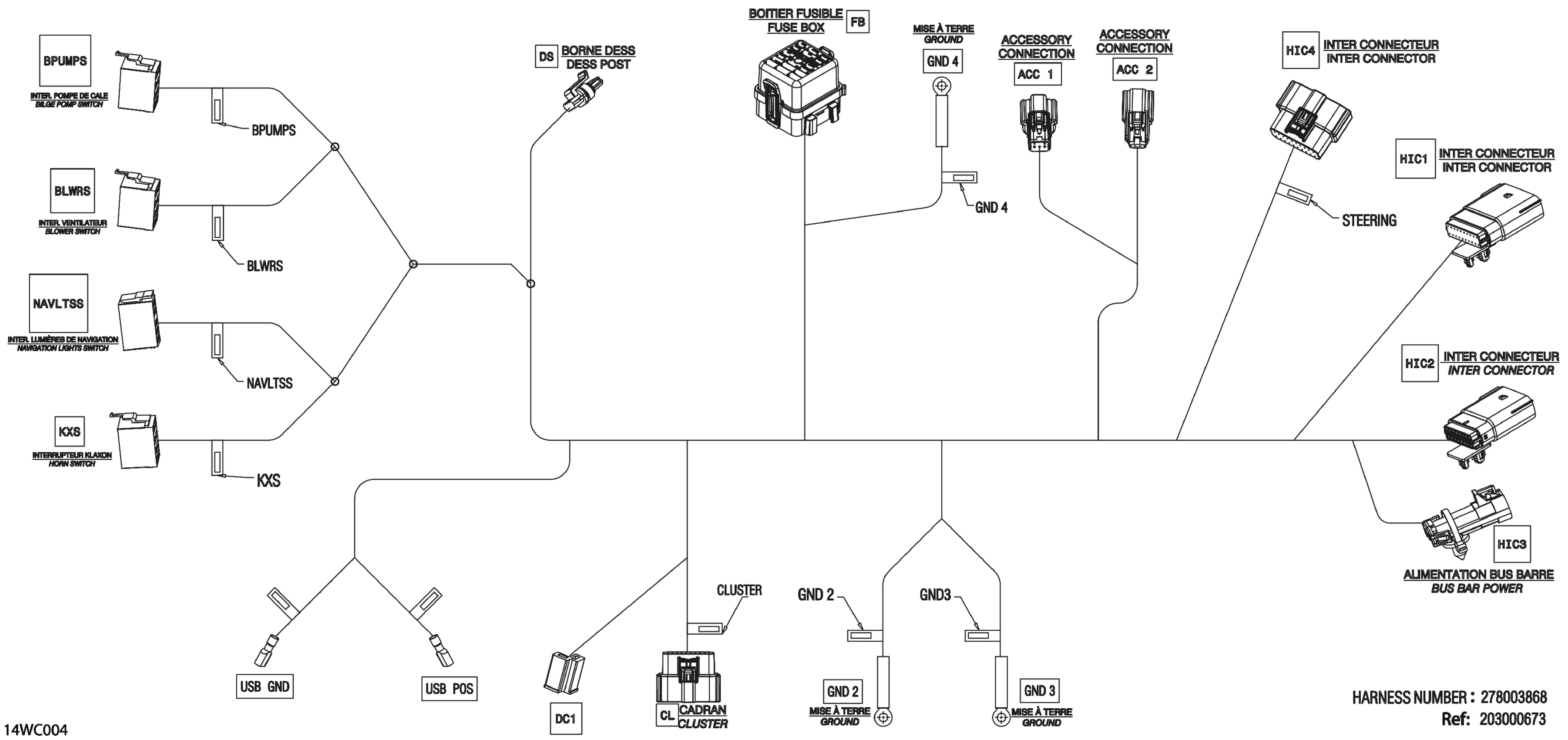

Sea-doo BASE Compact - 130 - 41PJ - Blue - Trailer Paint - NO CAT, 2023 MECHANICS - Console Wiring Harness - 278003868 Diagram

#

Description
Price

1800

Console Wiring Harness

278003868

$319.99

ACC1

Housing

515178954

$35.99

ACC1

Female Terminal

515178014

$2.39

ACC2

Connector 2 Pins with CPA

710005827

$23.49

ACC2

Female Terminal

515178018

$1.19

ACC2

Female Terminal

515178014

$2.39

BLWRS

Terminal

710003047

$3.49

BLWRS

Terminal

710003048

$4.39

BPUMPS

Terminal

710003047

$3.49

BPUMPS

Terminal

710003048

$4.39

CL

Female Housing 20 Circuits

278002858

$22.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal

515178018

$1.19

DC1

Housing

710005373

$5.29

DC1

Terminal

278003787

$13.77

DS

Housing

710001161

$11.12

DS

Seal Wire

710001153

$2.21

DS

Terminal

710000925

$3.19

FB

Fuse Box Cover

278003725

$4.13

FB

Little Fuse

710000741

$16.63

FB

Little Fuse

710000741

$16.63

FB

Little Fuse

710000741

$16.63

FB

Little Fuse

710000741

$16.63

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 4 Amps

710007051

$29.49

FB

Little Fuse, 4 Amps

710007051

$29.49

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Fuse Base Ass'y

278003448

$31.99

FB

Seal Plug

278002880

$7.86

FB

Relay

715900824

$21.99

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

710000890

$4.55

FB

Female Terminal

710000918

$7.69

GND2

Open Barrel Terminal

278001392

$4.79

GND3

Open Barrel

278000992

$2.21

GND4

Open Barrel

278000992

$2.21

HIC1

Support

514055393

$3.09

HIC1

Housing 20 Circuits

278002852

$18.49

HIC1

Sealing Cap

278002860

$1.79

HIC1

Male Terminal

515178013

$3.19

HIC2

Support

514055393

$3.09

HIC2

Connector Molex Mx150 16 Pos

710005976

$12.16

HIC2

Sealing Cap

278002860

$1.79

HIC2

Male Terminal

515178013

$3.19

HIC2

Male Terminal

515178293

$14.99

HIC3

Housing

710002325

$14.49

HIC3

Lock

710001323

$7.55

HIC3

Wire Seal

710001159

$6.35

HIC3

Terminal

710002326

$13.77

HIC4

Female Housing 20 Circuits

278002858

$22.49

HIC4

Sealing Cap

278002860

$1.79

HIC4

Female Terminal

515178018

$1.19

KXS

Terminal

710003047

$3.49

KXS

Terminal

710003048

$4.39

NAVLTSS

Housing

710002000

$7.90

NAVLTSS

Terminal

710003047

$3.49

NAVLTSS

Terminal

710003048

$4.39

USB GND

Female Terminal

409010700

$5.39

USB POS

Female Terminal

409010700

$5.39
