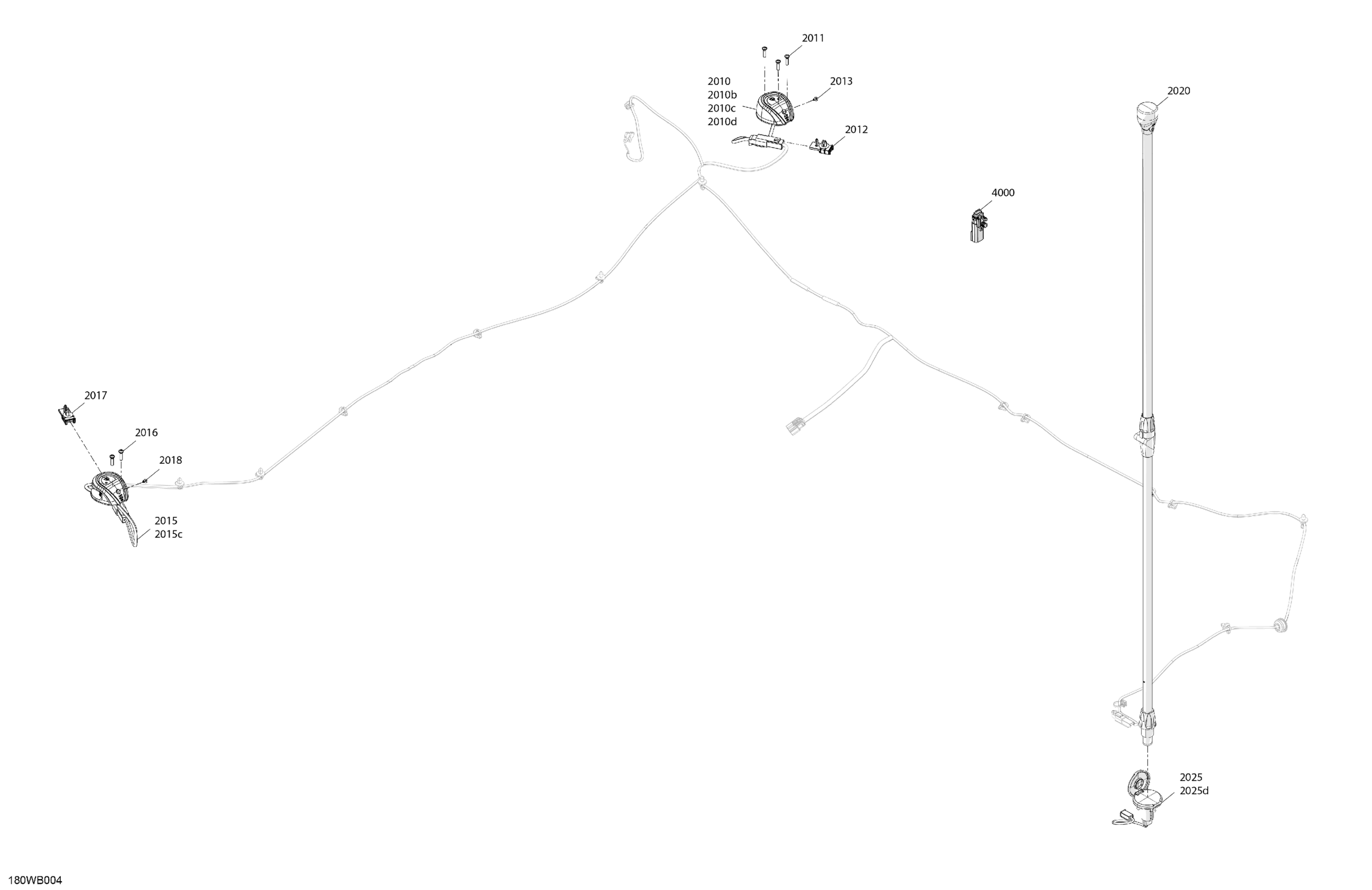

Sea-doo North America - BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 09-ELECTRICALS - Lighting Diagram

Green, Side Navigation Light Ass'y | Includes 2010 to 2010d

278004019

$254.49

Amphenol Female Connector 2 Cavities

515178579

$10.38

Female Terminal

710005438

$4.29

Amphenol Lock Connector

515178580

$3.91

Flange Torx Screw K40 X 16

250000287

$2.11

Deutsch Connector Support

710006744

$3.49

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

Red Side Navigatin Light Ass'y | Includes 2015 to 2015d

278004020

$254.49

Terminal

710005748

$3.49

Flange Torx Screw K40 X 16

250000287

$2.11

Deutsch Connector Support

710006744

$3.49

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

White, All Round Navigation Light

278003778

$249.99

Navigation Table Base Ass'y | Includes 2025 to 2025f

278004021

$34.99

Terminal

710005748

$3.49

Connector Plug

278003896

$14.99
