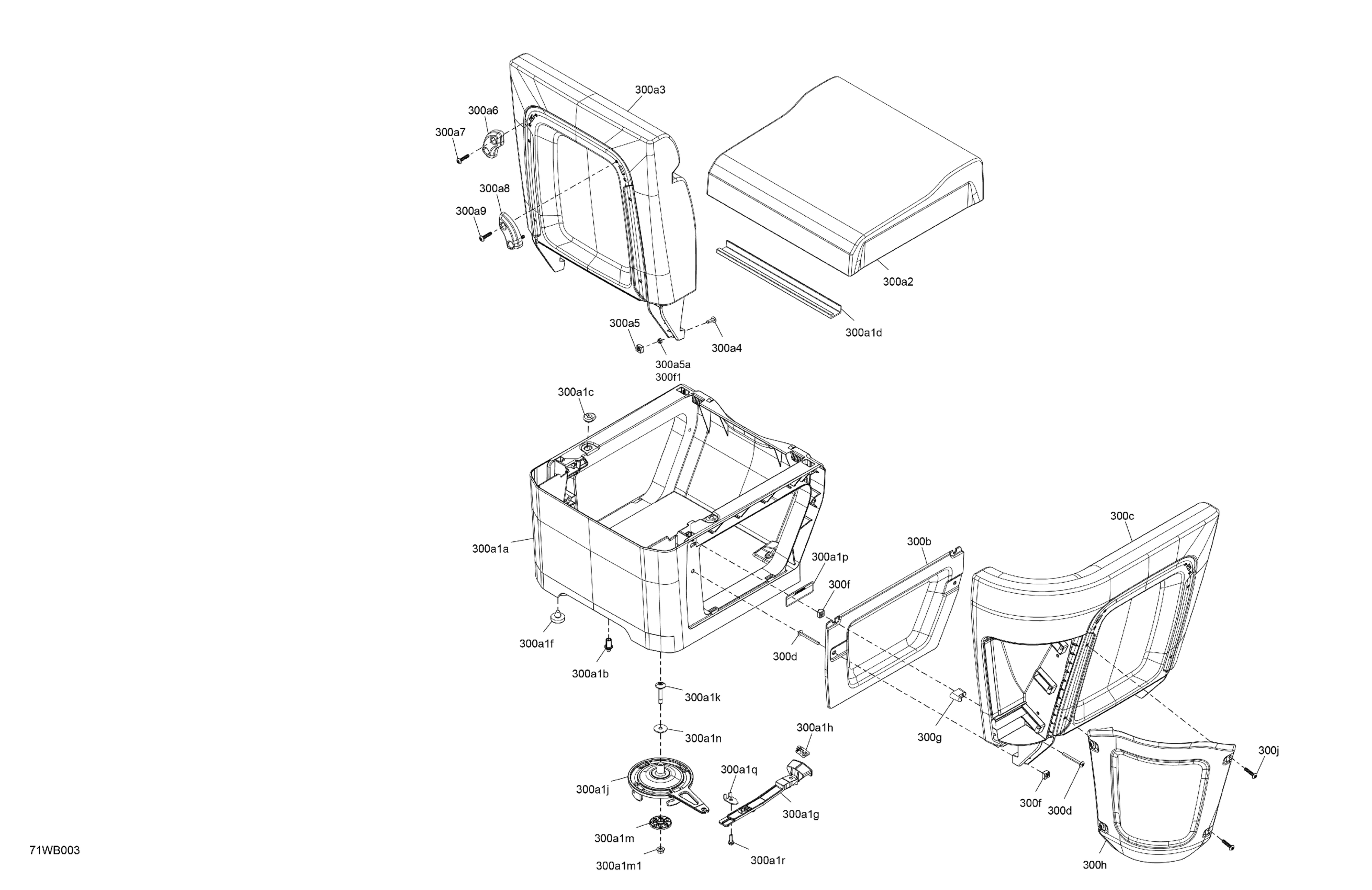

Sea-doo BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 FURNITURE - Seat Corner Backrest (RH) Diagram

Description

Price

300a1a

Seat Support Service Kit

295101127

Unavailable

300a1b

Locator Rod

269003492

$4.71

300a1c

Oval Washer

705000321

$4.64

300a1d

Gutter

269003483

$2.61

300a1f

Rubber Stopper

269003502

$6.18

300a1g

Lever Latch Service Kit

295101126

Unavailable

300a1h

Lever Decal

219905993

Unavailable

300a1j

Seat Anchorage

269003311

$14.27

300a1k

Torx Head M8 X 50 S.GRIP

250001154

$8.80

300a1m

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

300a1m1

Hex. Flange Nut M8

233181600

$0.86

300a1n

Flat Washer 8 mm

250200130

$2.61

300a1p

Seat Anchorage Warning Label

219905883

Unavailable

300a1q

Guide

269004160

$9.66

300a1r

Hex. Flange Screw M6.81 x 20

243162060

$3.30

300a2

Seat Cushion Ass'y

269003224

Unavailable

300a3

Backrest Ass'y

269003305

$349.99

300a4

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

300a5

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

300a5a

Elastic Stop Nut M6, Brass

232561200

$3.51

300a6

LH Rubber Stopper

269003903

$3.61

300a7

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

300a8

RH Rubber Stopper

269003904

$3.15

300a9

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

300b

RH Panel Seat Switch Kit

295101047

Unavailable

300c

RH Seat Corner Kit M

295100970

Unavailable

300d

Torx Screw M6 X 60

250000631

$3.12

300f

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

300f1

Elastic Stop Nut M6, Brass

232561200

$3.51

300g

Spacer

293900146

$1.61

300h

RH Exterior Support

269003511

$65.64

300j

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74
