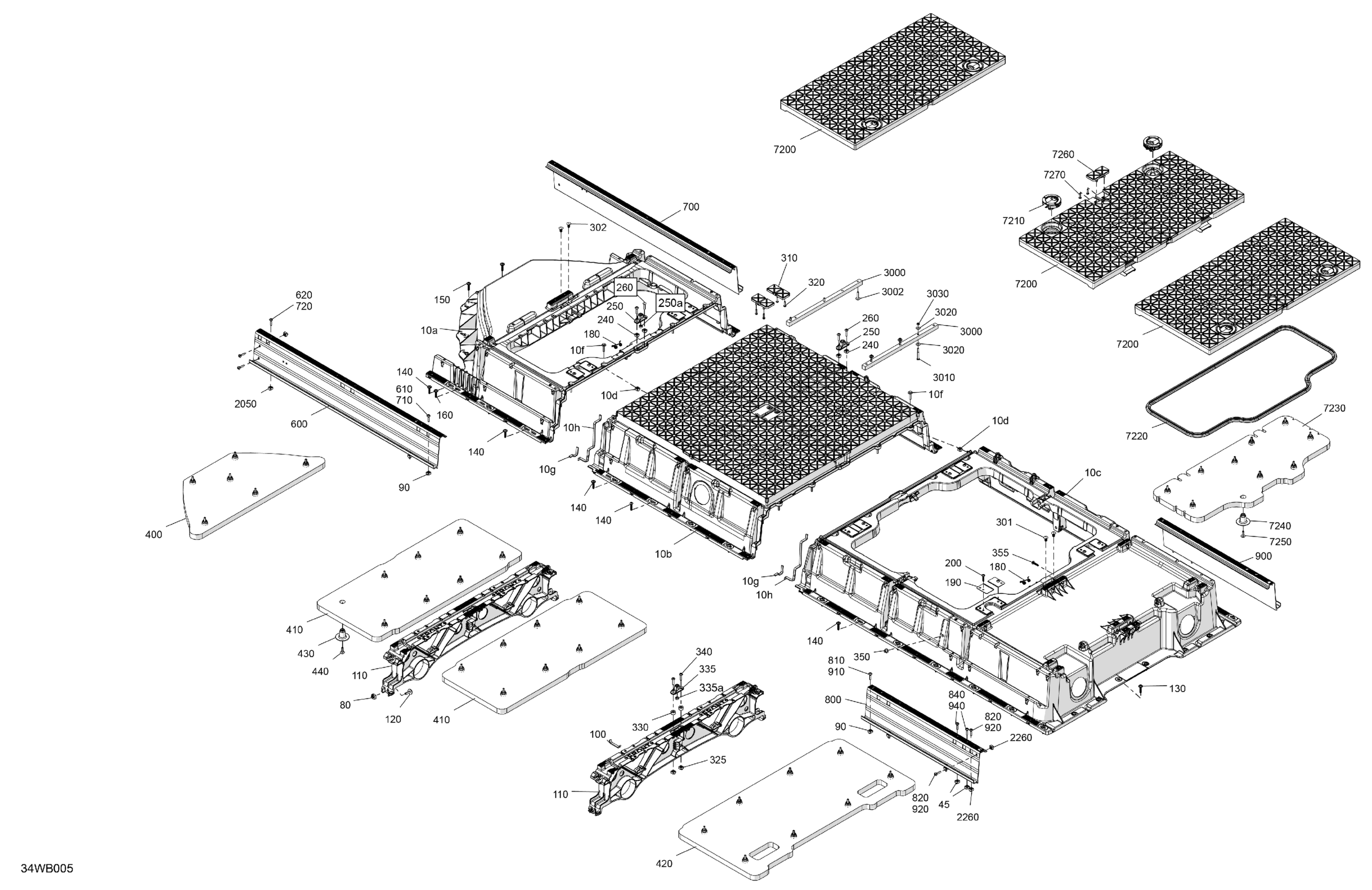

Sea-doo BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 HULL - Frame Diagram

#

Description
Price

10a

Front Chassis

291005606

$519.99

10b

Central Chassis

291004648

$789.99

10c

Rear Frame Service Kit

295101120

$639.99

10d

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

10f

Hex Screw SEMS M6X35, SS

250000969

$2.11

10g

Gasket

293250099

$7.09

10h

Gasket

293250099

$7.09

45

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

80

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

90

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

100

Gasket 3000Mm Long

219704378

$26.49

110

Crossmember

291004980

$119.99

120

Hexagonal Screw M8 X 30

250000888

$3.17

130

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

140

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

150

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

160

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

180

Torsion Spring

291005695

$10.49

190

Lock Plate

291005582

$2.69

200

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

240

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

250

Table Anchorage | Includes 250 to 250a

291005631

$7.89

250a

Hex Nut M8

232081200

$1.26

260

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

301

Black Dart

293730010

$0.99

302

Black Dart

293730010

$0.99

310

Double Tile Cap

291005630

$6.29

320

Hex. Screw 10-14 X 7/8”

211000023

$3.59

325

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

330

Roller Bushing Kit | Includes 240 to 240b

295501160

$4.29

335

Table Anchorage | Includes 250 to 250a

291005631

$7.89

335a

Hex Nut M8

232081200

$1.26

340

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

350

Grommet

293720029

$1.59

355

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

400

Front Chassis Acoustic Insulation

291005476

$40.99

410

Central Chassis Acoustic Insulation

291005477

$70.99

420

Rear Chassis Acoustic Insulation

291005478

$70.99

430

Fastener

291005474

$3.49

440

Hexagonal Cap Screw M6 X 25

250000978

$4.44

600

Side Member 112 CM

291005221

$169.99

610

Truss Cone Torx Screw M6 X 30

250000924

$7.51

620

Truss Cone Torx Screw M6 X 30

250000924

$7.51

700

Side Member 112 CM

291005222

$169.99

710

Truss Cone Torx Screw M6 X 30

250000924

$7.51

720

Truss Cone Torx Screw M6 X 30

250000924

$7.51

800

Side Member 68 CM

291005223

$189.99

810

Truss Cone Torx Screw M6 X 30

250000924

$7.51

820

Truss Cone Torx Screw M6 X 30

250000924

$7.51

840

Truss Cone Torx Screw M6 X 30

250000924

$7.51

900

Side Member 68 CM

291005224

$189.99

910

Truss Cone Torx Screw M6 X 30

250000924

$7.51

920

Truss Cone Torx Screw M6 X 30

250000924

$7.51

940

Truss Cone Torx Screw M6 X 30

250000924

$7.51

2050

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2260

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

3000

Chassis Reinforcement

281000134

$33.99

3002

Hexagonal Cap Screw M6 X35

250000399

$4.44

3010

Hex. Screw M6 x 55

207065560

$1.01

3020

Flat Washer M6, Stainless

234062600

$0.77

3030

Elastic Stop Nut M6, Brass

232561200

$4.23

7200

Access Cover

291004653

$229.99

7210

Latch Ass'y

291005473

$28.99

7220

Weather Strip

293250624

$38.99

7230

Acoustic Insulation Cover

291005475

$39.99

7240

Fastener

291005474

$3.49

7250

Hexagonal Cap Screw M6 X 25

250000978

$4.44

7260

Double Tile Cap

291005630

$6.29

7270

Hex. Screw 10-14 X 7/8”

211000023

$3.59
