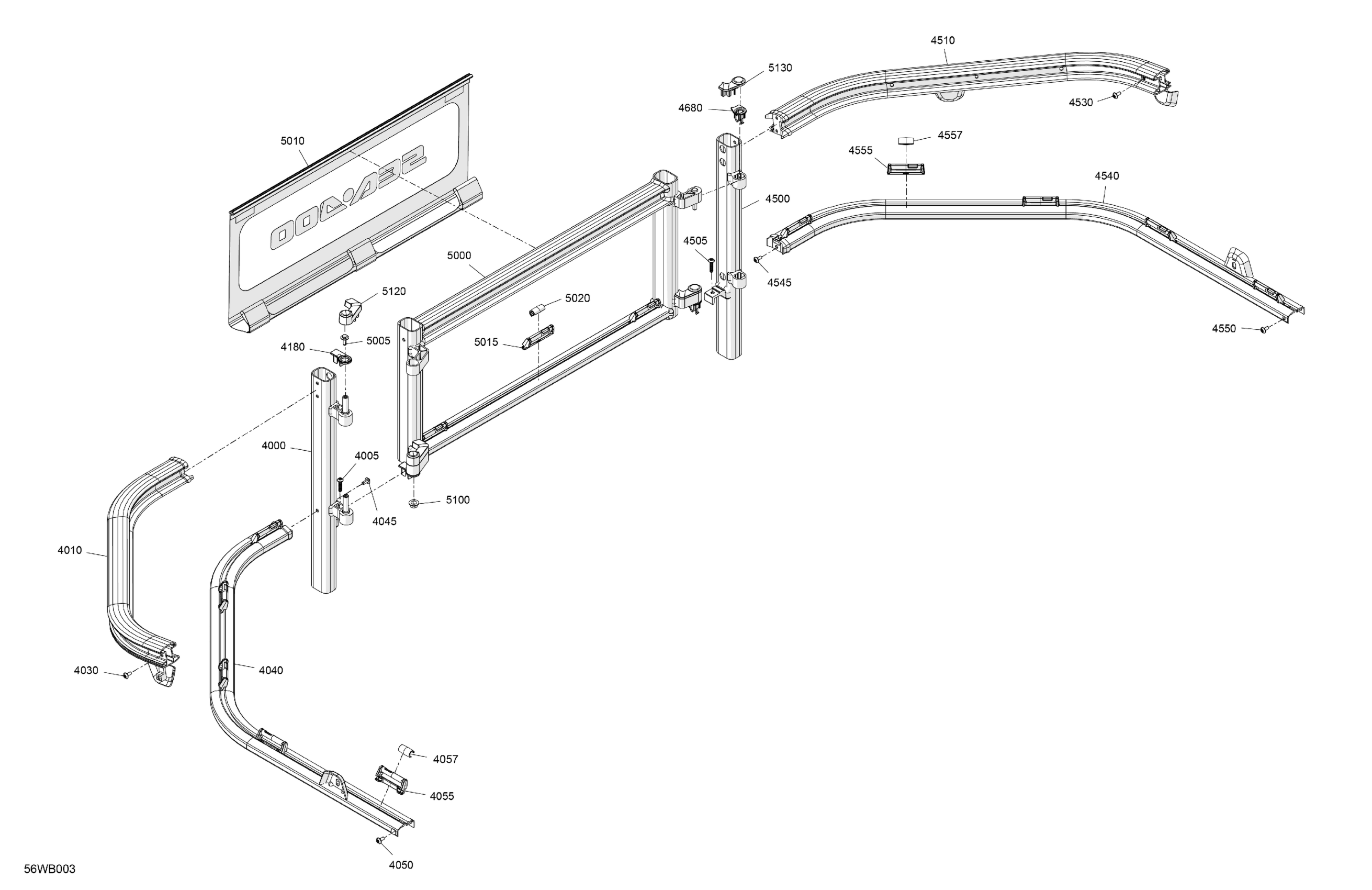

Sea-doo BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 GUARD RAILS - Front Diagram

Description

Price

4000

LH Front Profiled Tube

281300351

Unavailable

4005

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

4010

LH Front Hand Rail

281300350

Unavailable

4030

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

4040

LH Lower Profile Tube

281300349

Unavailable

4045

Cone Torx Truss Screw HD.M6 X 51

250001185

$3.68

4050

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

4055

Balustrade Anchor

281300589

Unavailable

4057

Balustrade Fastener

281300597

$2.82

4180

LH Lower Cap

281300311

Unavailable

4500

RH Front Profiled Tube

281300353

$78.43

4505

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

4510

RH Front Hand Rail

281300355

Unavailable

4530

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

4540

Rear Lower Profiled Tube

281300356

Unavailable

4545

Cone Torx Truss Screw HD.M6 X 51

250001185

$3.68

4550

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

4555

Balustrade Anchor

281300589

Unavailable

4557

Balustrade Fastener

281300597

$2.82

4680

RH Lower Cap

281300312

Unavailable

5000

Front Door Service Kit

295101112

Unavailable

5005

Hex Screw M6 X 20

250000965

$1.74

5010

Front Balustrade Ass'y

281300692

Unavailable

5015

Balustrade Anchor

281300589

Unavailable

5020

Balustrade Fastener

281300597

$2.82

5100

Venturi Bushing

293900007

$3.71

5120

LH Upper Cap

281300309

Unavailable

5130

RH Upper Cap

281300310

Unavailable
