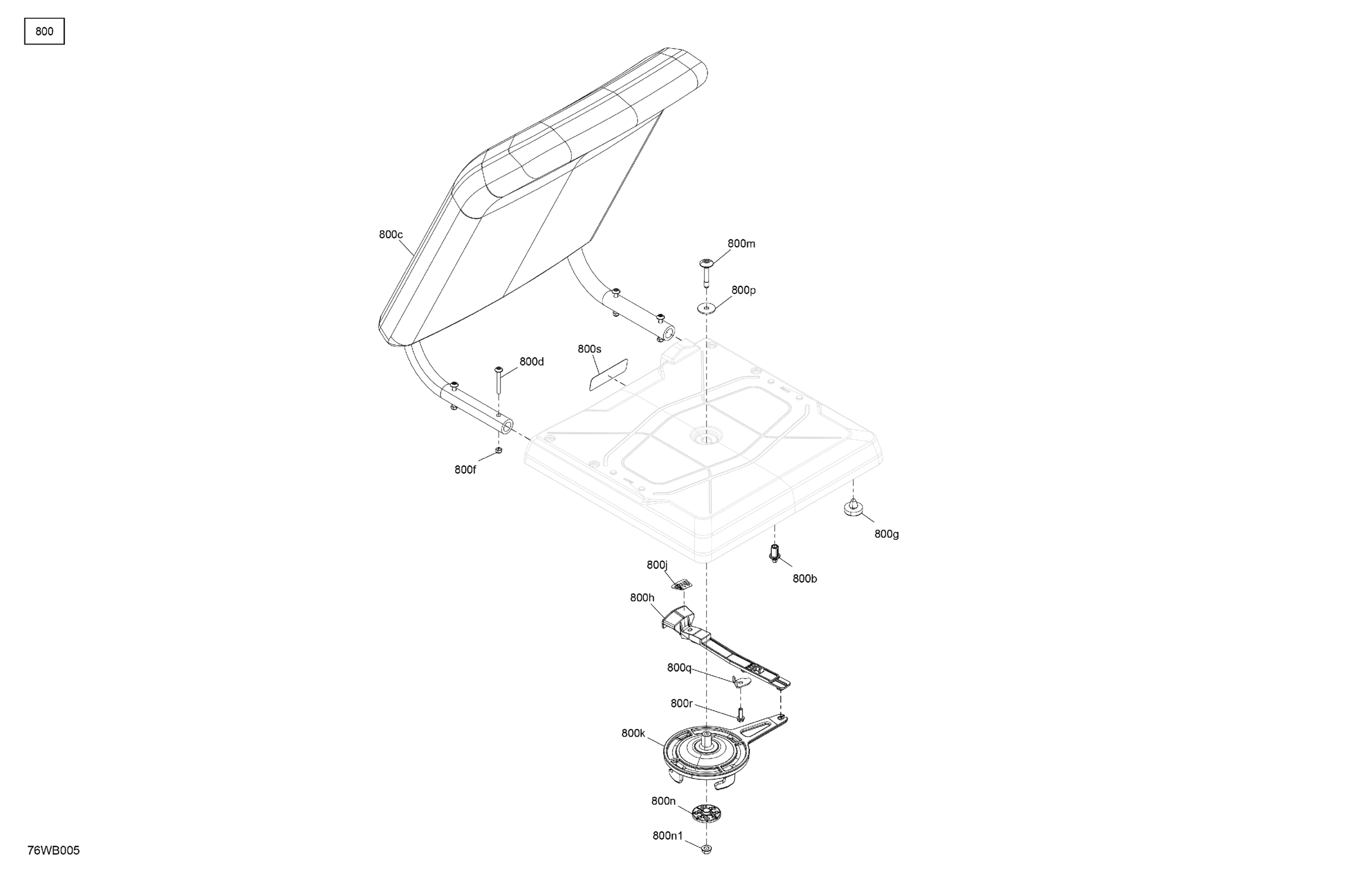

Sea-doo BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 HELM - Inclined Backrest Diagram

Description

Price

800

Seat Back Support Service Kit

295101130

$184.99

800b

Locator Rod

269003492

$6.09

800c

Backrest Ass'y

269004104

$629.99

800d

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

800f

Nut Flange Elastic M6

233261200

$0.99

800g

Rubber Stopper

269003502

$6.89

800h

Lever Latch Service Kit

295101126

$24.99

800j

Lever Decal

219905993

Unavailable

800k

Seat Anchorage

269003311

$19.99

800m

Torx Head M8 X 50 S.GRIP

250001154

$12.11

800n

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

800n1

Hex. Flange Nut M8

233181600

$1.05

800p

Flat Washer 8 mm

250200130

$3.17

800q

Guide

269004160

$10.99

800r

Hex. Flange Screw M6.81 x 20

243162060

$3.72

800s

Seat Anchorage Warning Label

219905883

Unavailable
