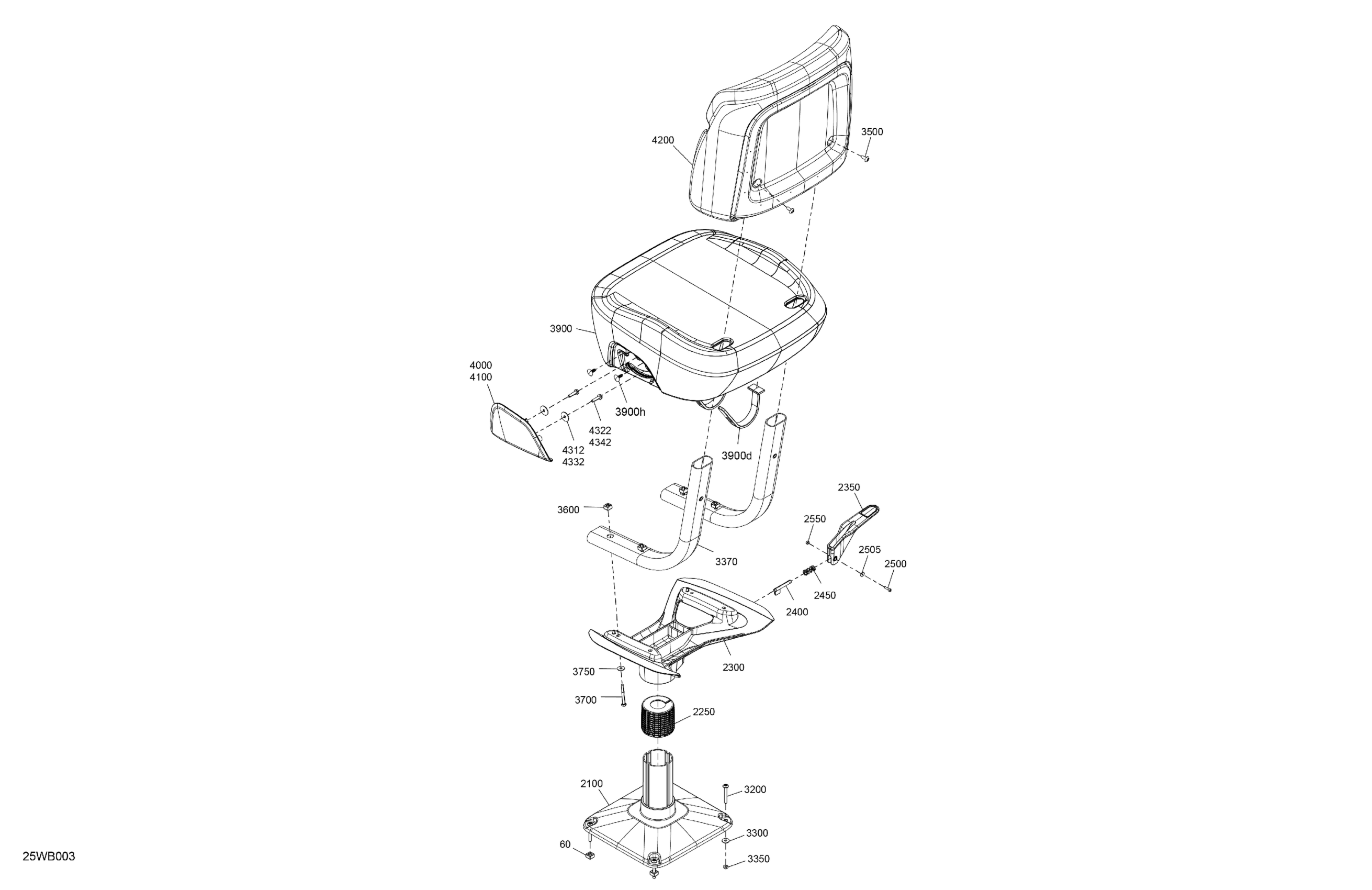

Sea-doo North America - BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 03- HELM - Driver Seat Diagram

Description

Price

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2100

Seat Anchorage

281000187

$109.99

2250

Sleeve

281000022

$6.47

2300

Seat Support

281000006

$88.99

2350

Seat Latch

281000020

$8.79

2400

Latch Rod

281000051

$29.99

2450

Compression Spring

281000063

$6.67

2500

Black, Socket Head Screw M4 X 16

250001011

$1.47

2505

Flat Washer 4 mm, Stainless

234042600

$1.15

2550

Elastic Stop Nut M4

232541200

$2.11

3200

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

3300

Flat Washer M6, Stainless

234062600

$0.77

3350

Elastic Stop Nut M6, Brass

232561200

$4.23

3370

Backrest Support Ass'y

281000114

$53.99

3500

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

3600

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

3700

Hex. Screw M6 x 55

207065560

$1.01

3750

Flat Washer M6, Stainless

234062600

$0.77

3900

Seat Cushion Ass'y | Includes 3900 to 3900h

281000007

$279.99

3900d

Strap

269502417

$17.69

3900h

Black, Dart

293730011

$0.99

4000

RH Ext Seat Trim

281000042

$13.49

4100

LH Ext Seat Trim

281000046

$13.49

4200

Driver Backrest Ass'y

281000026

$349.99

4312

Flat Washer M6 X 25

250200044

$2.69

4322

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

4332
