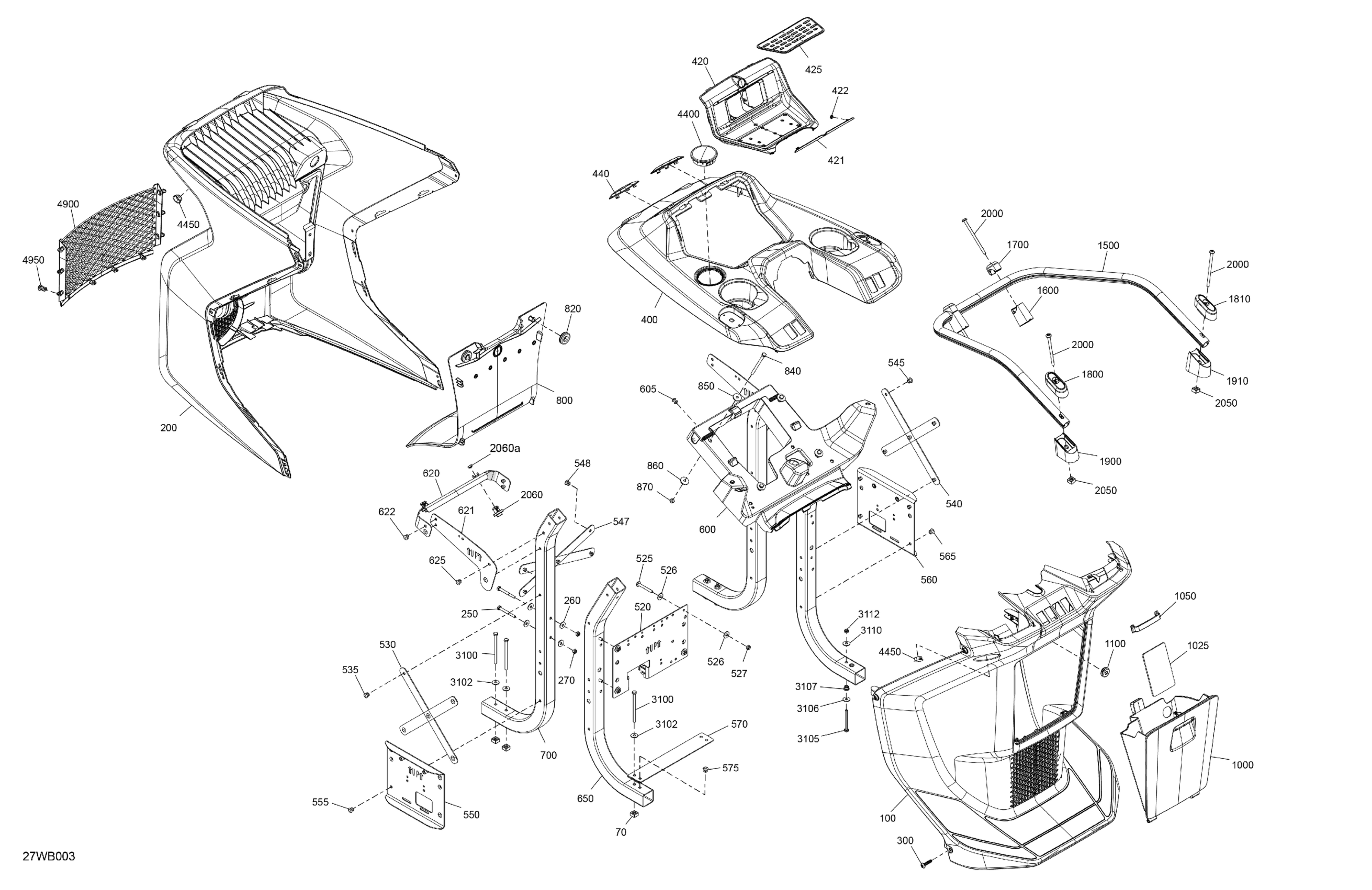

Sea-doo BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 HELM - Console Diagram

#

Description
Price

70

Nut Housing M6 | Includes 555 to 555b

269502544

$5.91

100

Rear Console Panel

281000001

$157.92

200

Front Console Panel

281000002

$193.82

250

Hex. Screw M6 x 55

207065560

$0.83

260

Flat Washer M6, Stainless

234062600

$0.64

270

Elastic Stop Nut M6, Brass

232561200

$3.51

300

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

400

Upper Console Panel

281000004

$59.20

420

Gauge Support

281000037

$33.77

421

Upper Gauge Trim

281000118

$12.68

422

Push Nut

250100206

$0.83

425

Soft Gauge Trim

281000146

$17.66

440

Windshield Trim

281000082

$36.89

520

Rear Reinforcement

281000211

$32.28

525

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

526

Flat Washer M6, Stainless

234062600

$0.64

527

Elastic Stop Nut M6, Brass

232561200

$3.51

530

Lateral Reinforcement

281000058

$5.91

535

Ornit Rivet 6,4 X 15.6

293150284

$4.60

540

Lateral Reinforcement

281000058

$5.91

545

Ornit Rivet 6,4 X 15.6

293150284

$4.60

547

Lateral Reinforcement

281000058

$5.91

548

Ornit Rivet 6,4 X 15.6

293150284

$4.60

550

Amplifier Support Ass'y

281000123

$41.51

555

Ornit Rivet 6,4 X 15.6

293150284

$4.60

560

Amplifier Support Ass'y

281000123

$41.51

565

Ornit Rivet 6,4 X 15.6

293150284

$4.60

570

Rear Lower Reinforcement

281000081

$6.45

575

Ornit Rivet 6,4 X 15.6

293150284

$4.60

600

Steering Colum Reinforcement

281000060

$50.74

605

Ornit Rivet 6,4 X 15.6

293150284

$4.60

620

Hand Rail Reinforcement

281000103

$32.28

621

Lateral Reinforcement

281000125

$12.68

622

Ornit Rivet 6,4 X 15.6

293150284

$4.60

625

Ornit Rivet 6,4 X 15.6

293150284

$4.60

650

Rear Tube Support Ass'y

281000200

$49.99

700

Front Tube Support Ass'y

281000201

$49.99

800

Access Panel

281000000

$235.35

820

Grommet

517303756

$3.15

840

Hex. Screw M6 X 90

207169060

$4.26

850

Flat Washer M6.6 X 22

250200022

$1.87

860

Flat Washer M6.6 X 22

250200022

$1.87

870

Elastic Stop Nut M6, Brass

232561200

$3.51

1000

Storage Box Service Kit

295101093

Unavailable

1025

Self Adhesive Protective Foam

281000110

$2.75

1050

Elastic Strip

281000155

$12.91

1100

Grommet

517307161

$2.22

1500

Console Hand Rail

281000024

$230.74

1600

Front Lower Hand Rail Anchorage

281000047

$6.45

1700

Front Upper Hand Rail Anchorage

281000048

$6.45

1800

Rear Upper Hand Rail Anchorage

281000049

$5.14

1810

Rear Upper Hand Rail Anchorage

281000049

$5.14

1900

Rear Lower Hand Rail Anchorage

281000112

$11.57

1910

Rear Lower Hand Rail Anchorage

281000112

$11.57

2000

Cone Torx Truss Screw HD.M6 X 100

250001163

$3.19

2050

Nut Housing M6 | Includes 555 to 555b

269502544

$5.91

2060

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.61

2060a

Elastic Stop Nut M6, Brass

232561200

$3.51

3100

Hex. Screw M6 X 90

207169060

$4.26

3102

Flat Washer M6, Stainless

234062600

$0.64

3105

Hex. Cap Screw

207166060

$3.69

3106

Flat Washer M6, Stainless

234062600

$0.64

3107

Nut Flange Elastic M6

233261200

$0.82

3110

Flat Washer M6, Stainless

234062600

$0.64

3112

Elastic Stop Nut M6, Brass

232561200

$3.51

4400

Cap

281000077

$14.27

4450

Cap

281000117

$3.68

4900

Net Ass'y

281000156

$77.97

4950

Tuflok Plastic Rivet

293150230

$1.21
