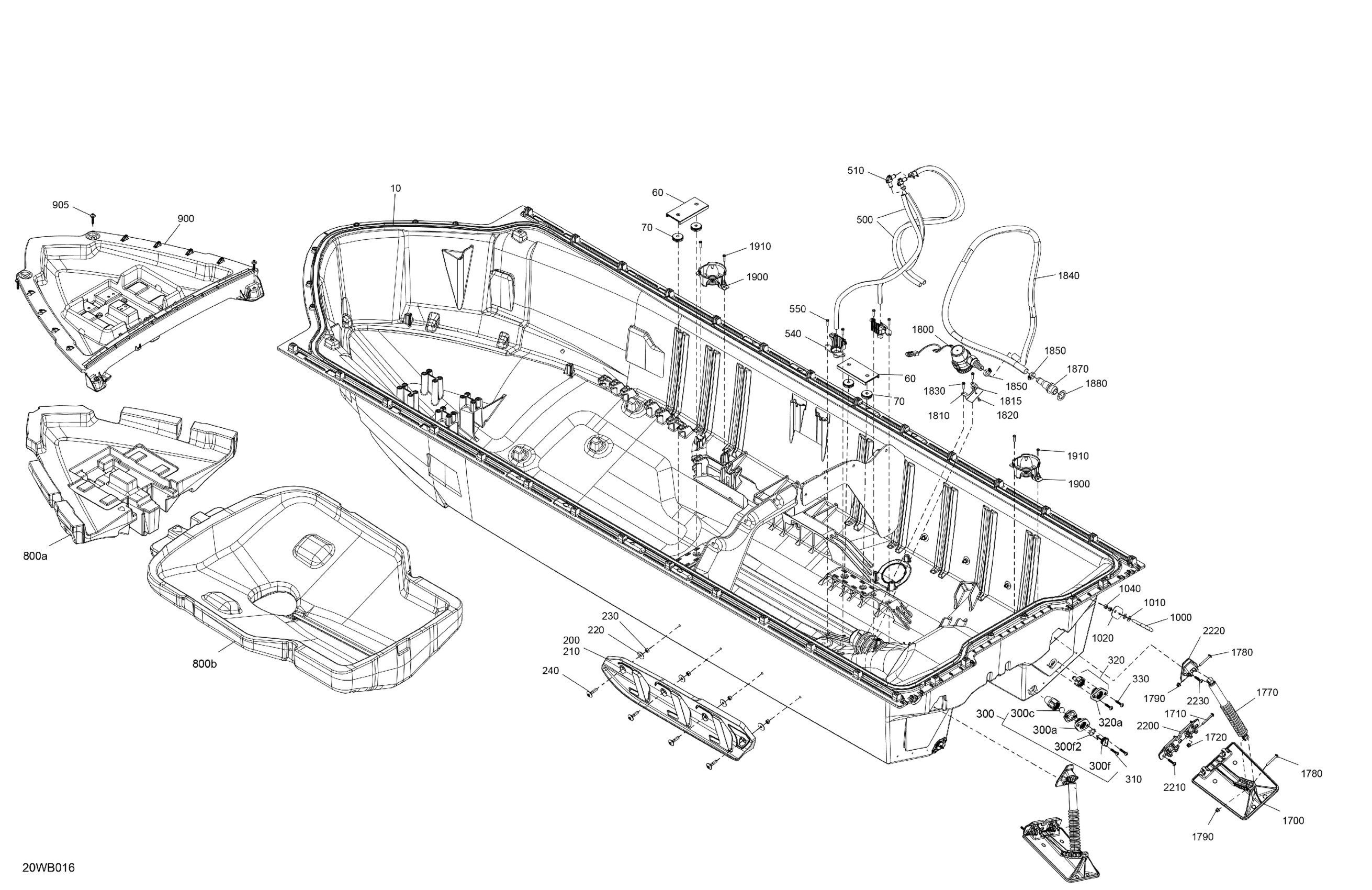

Sea-doo BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 MECHANICS - Hull Diagram

#

Description
Price

10

Hull Ass'y

292002666

$2.00

60

Anchorage Support

292002403

$17.49

70

Formed Slot Nut

292002521

$9.80

200

LH Sponson

292001954

$65.99

210

RH Sponson

292001953

$54.99

220

Flat Washer 8 mm, Stainless

250200175

$3.06

230

Hex. Elastic Nut M8 Brass

232581200

$2.22

240

Torx Screw M8 X 35

250000697

$3.91

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$15.49

300a

Through Hull Fitting

292002765

$7.79

300c

Floating Ball

293830080

$7.19

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

300f2

O-Ring

293300067

$1.04

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$14.49

320a

Through Hull Fitting

292002765

$7.79

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

500

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

510

Fitting Elbow 90°

293710152

$18.49

540

Pump Support

269800956

$3.39

550

Hex. Screw 10-14 X 7/8”

211000023

$3.59

800a

Lower Front Float

292002336

$219.99

800b

Fuel Tank Float

292002337

$219.99

900

Luggage Compartment Bottom

292002414

$38.99

905

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

1000

U-Clamp

292000933

$59.49

1010

Flat Washer M8.5 x 18

293050001

$3.07

1020

Retaining Plate

292002612

$7.89

1040

Hex. Elastic Nut M8 Brass

232581200

$2.22

1700

Tab Trim

292002388

$18.49

1710

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

1720

Nut Flange Elastic M6

233261200

$0.99

1770

Shock Absorber Ass'y

269502530

$39.99

1780

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

1790

Nut Flange Elastic M6

233261200

$0.99

1800

Bilge Pump

278004010

$98.49

1810

Bilge Pump Support

269801210

$16.49

1815

Flat Washer 5 mm, Stainless

234052600

$0.77

1820

Pop Rivet 3/16"

293150043

$2.09

1830

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1840

Hose Bilgeflex

291002952

$8.79

1850

Clamp Gear

293650285

$3.27

1870

Fitting

293710162

$13.49

1880

Gasket

292001486

$6.60

1900

Hose Support

237000083

$5.50

1910

Hex. Screw 10-14 X 7/8”

211000023

$3.59

2200

Trim Tab Anchor

292002406

$21.99

2210

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

2220

Shock Absorber Anchorage

292002389

$13.99

2230

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11
