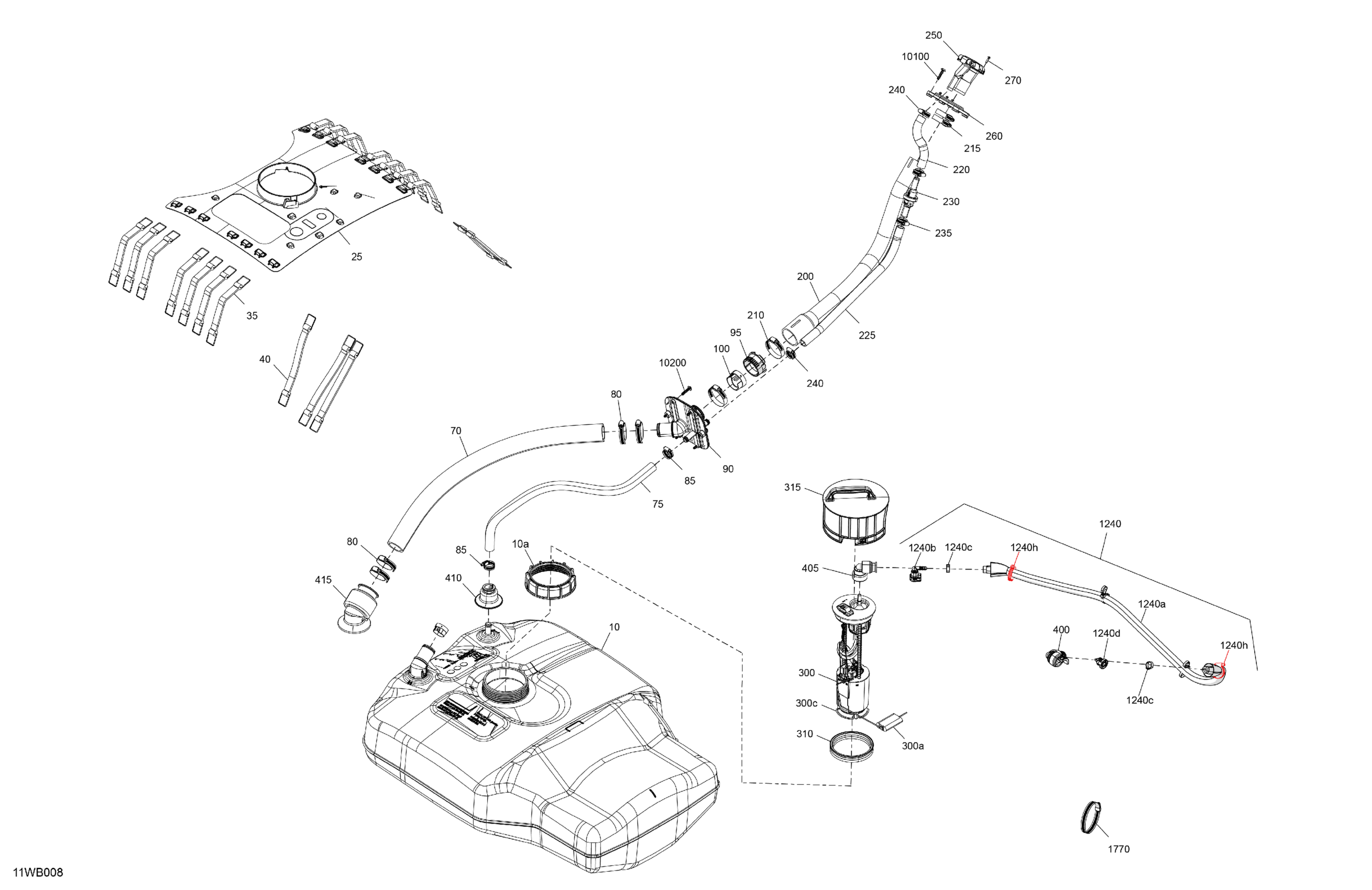

Sea-doo BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 MECHANICS - Fuel Diagram

#

Description
Price

10

Fuel Tank

275501143

$599.99

10a

Special Nut M130

250100062

$21.99

25

Fuel Tank Support

275501017

$36.99

35

Retaining Strap

275501161

$18.49

40

Holding Strap

293850112

$18.49

70

Hose

275501030

$85.99

75

Vent Hose This part replaces 275501087.

275501138

Unavailable

80

Tridon Clamp

293650036

$7.49

85

Tridon Gear Clamp

293650019

$5.82

90

Through Hull Fitting Sub Ass'y

275501073

$48.99

95

Adapter

275501106

$7.89

100

Check Valve

275501047

$98.99

200

Hose Filler Neck Ext

275501003

$78.99

210

Tridon Clamp

293650036

$7.49

215

Tridon Clamp

293650036

$7.49

220

Vent Hose This part replaces 275501087.

275501138

Unavailable

225

Vent Hose This part replaces 275501087.

275501138

Unavailable

230

Check Valve

275501103

$33.99

235

Tridon Gear Clamp

293650019

$5.82

240

Tridon Gear Clamp

293650019

$5.82

250

Filler Neck

275501080

$164.99

260

Fuel Cap Spacer

275501079

$18.49

270

Flange Torx Screw K40 X 16

250000287

$2.11

300

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$425.99

300a

Sensor Lever

275500780

$224.99

300c

Fuel Filter

270600113

$33.99

310

Gasket

293250173

$18.49

315

Fuel Pump Cover

273000416

$37.99

400

Connector Guard

275501058

$4.55

405

Connector Guard

275501063

$4.55

410

Hose Guard

275501070

$5.79

415

Hose Guard

275501071

$43.99

1240

Fuel Rail Hose Ass'y | Includes 1240 to 1240h

275501035

$259.99

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$339.99

1240b

Quick Disconnect

275500921

$16.49

1240c

Crimp Clamp

293650053

$3.09

1240d

Elbow Fitting 90°

293710105

$14.22

1240h

Gear Clamp

293650284

$4.44

1770

Tridon Gear Clamp

293650244

$9.29

10100

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

10200

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11
