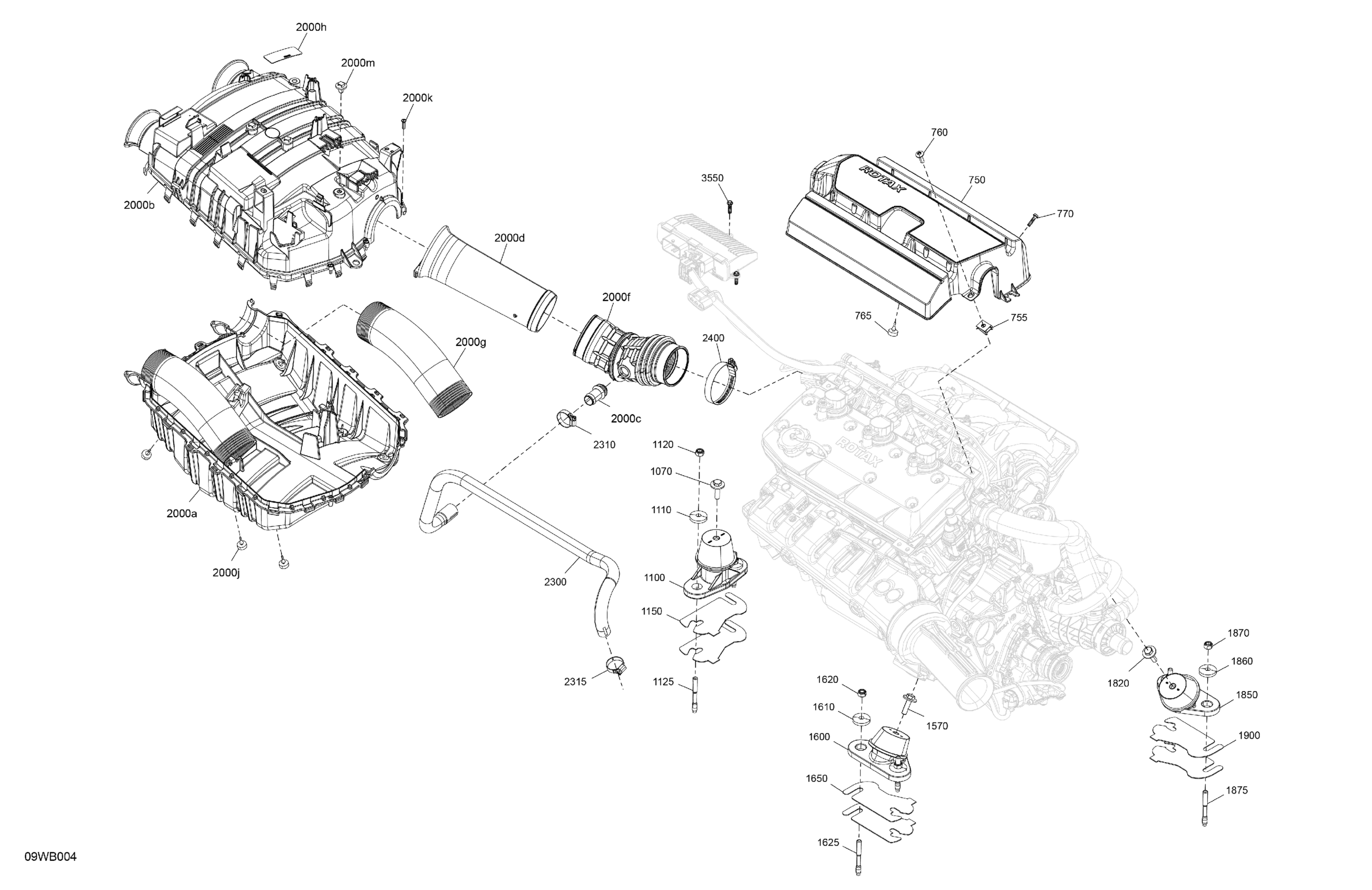

Sea-doo BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 MECHANICS - Engine Diagram

Description

Price

750

Engine Cover

270001174

$34.30

755

Panel Nut M6 X 1

420942108

$11.48

760

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

765

Rubber Stopper

708000759

$3.61

770

Hex. Flange Screw K50 X 20

241152060

$1.57

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1100

Engine Support Ass'y

270001096

$77.32

1110

Cone Washer

250200018

$4.64

1120

Hex. Elastic Nut M8 Brass

232581200

$1.29

1125

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1150

Shim 1.3 mm

270000762

$9.04

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1600

Engine Support Ass'y

270001081

$84.47

1610

Cone Washer

250200018

$4.64

1620

Hex. Elastic Nut M8 Brass

232581200

$1.29

1625

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1650

Shim 1.3 mm

270000762

$9.04

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1850

Engine Support Ass'y

270001081

$84.47

1860

Cone Washer

250200018

$4.64

1870

Hex. Elastic Nut M8 Brass

232581200

$1.29

1875

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1900

Shim 1.3 mm

270000762

$9.04

2000a

Airbox Base

273000342

$44.00

2000b

Intake Silencer Cover

273000394

$64.90

2000c

Breather Valve

273000234

$10.63

2000d

Intake Hose

273000359

$44.00

2000f

Hose Intake Silencer - Molded

273000395

$14.04

2000g

Air Silencer Hose

273000290

$20.12

2000h

Air Silencer Notice Decal

219903177

Unavailable

2000j

Rubber Stopper

708000759

$3.61

2000k

Flange Torx Screw K40 X 16

250000287

$1.74

2000m

Mount Dart

710008294

$0.99

2300

Formed Hose

270001071

Unavailable

2310

Gear Clamp

293650284

$4.15

2315

Clamp Gear

293650285

$2.68

2400

Tridon Clamp

293650179

$8.81

3550

Hex. Flange Screw K50 X 20

241152060

$1.57
