Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

200

Starter Relay

278003012

$40.27

340

Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1

219800519

$184.30

340a

Battery Bolt Kit | Not Shown

219800542

$7.09

380

Hex Screw SEMS M6X35, SS

250000969

$2.00

385

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

385a

Elastic Stop Nut M6, Brass

232561200

$4.03

410

Battery Support

278003887

Unavailable

420

Strap

269502417

$16.39

430

Clip

278004299

$16.39

850

Elastic Stop Nut M6, Brass

232561200

$4.03

975

Black Dart

293730010

$0.93

1040

Negative Cable

278003918

Unavailable

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1060

Stainless Flat Washer M6

234061600

$0.28

1070

Starter Cable

278003369

$35.79

1072

Mount Dart

710008294

$0.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.03

1090

Stainless Flat Washer M6

234061600

$0.28

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1340

Stainless Flat Washer M6

234061600

$0.28

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1540

Elastic Stop Nut M6, Brass

232561200

$4.03

1550

Stainless Flat Washer M6

234061600

$0.28

1600

Multifunction Mono Compact Gauge

278003430

$532.06

1601

Hex. Flange Screw K50 X 20

241152060

$1.81

1650

Throttle Position Sensor

278002283

$104.99

1700

Switch

278003821

$116.39

1710

RH Switch Keypad

278003474

$116.39

1735

Terminal DESS One Wire

515179305

$69.37

1740

Specialized Nut

278004274

$3.12

1805

Horn Switch

278003690

$49.22

1810

Nav & Anchor Light Switch

278003691

$35.49

1815

Pump Switch

278003692

$51.46

1820

Vent Switch

278003693

$42.51

1825

Cap

278004011

Unavailable

1830

Cable Grommet

293720092

$11.81

1840

Hex. Cap Screw M6 X 12

207161260

$1.21

1845

Stainless Flat Washer M6

234061600

$0.28

1850

Elastic Stop Nut M6, Brass

232561200

$4.03

1875

Mount Dart

710008294

$0.99

1880

Mount Dart

710008294

$0.99

1885

Mount Dart

710008294

$0.99

1890

Mount Dart

710008294

$0.99

1895

Mount Dart

710008294

$0.99

2001

Anchorage Tie Wrap

293750103

$4.27

2026

Pop Rivet 3/16"

293150005

$0.46

2040

Horn

278003906

Unavailable

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$5.04

2050

12V Power Outlet

710005374

$31.31

2055

USB Outlet

219400510

$43.99

3400

Voltage Regulator Support

278004087

Unavailable

3405

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

4010

Cap

278004011

Unavailable

8010

Safety Lanyard Ass'y, RFID

278003400

$67.13

8030

Cord Cut Off Switch Tether | Not Shown

278004223

$29.82

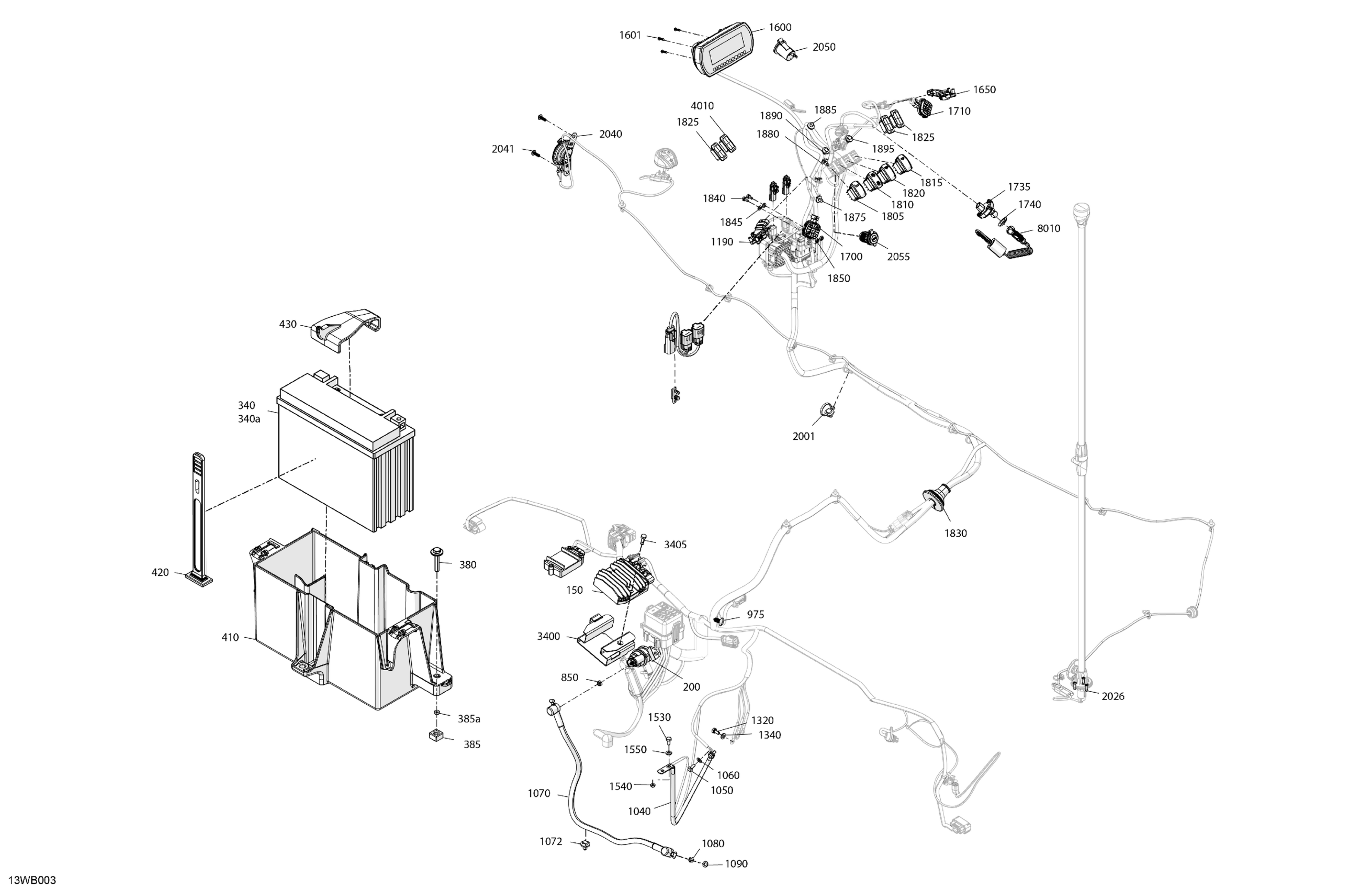

Sea-doo BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 MECHANICS - Electric Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

Starter Relay

Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1

Battery Bolt Kit | Not Shown

Hex Screw SEMS M6X35, SS

Nut Housing M6 | Includes 555 to 555b

Elastic Stop Nut M6, Brass

Battery Support

Strap

Clip

Elastic Stop Nut M6, Brass

Black Dart

Negative Cable

Hex. Screw M6 X 12, Scotch Grip

Stainless Flat Washer M6

Starter Cable

Mount Dart

Elastic Stop Nut M6, Brass

Stainless Flat Washer M6

LH Throttle Sensor

Hex. Screw M6 X 12, Scotch Grip

Stainless Flat Washer M6

Hex. Screw M6 X 12, Scotch Grip

Elastic Stop Nut M6, Brass

Stainless Flat Washer M6

Multifunction Mono Compact Gauge

Hex. Flange Screw K50 X 20

Throttle Position Sensor

Switch

RH Switch Keypad

Terminal DESS One Wire

Specialized Nut

Horn Switch

Nav & Anchor Light Switch

Pump Switch

Vent Switch

Cap

Cable Grommet

Hex. Cap Screw M6 X 12

Stainless Flat Washer M6

Elastic Stop Nut M6, Brass

Mount Dart

Mount Dart

Mount Dart

Mount Dart

Mount Dart

Anchorage Tie Wrap

Pop Rivet 3/16"

Horn

Plastite Torx Screw Cone HD.M6.81X2

12V Power Outlet

USB Outlet

Voltage Regulator Support

Hex. Screw M6 X 20, Scotch Grip

Cap

Safety Lanyard Ass'y, RFID

Cord Cut Off Switch Tether | Not Shown
