Description

Price

1

iDF Gearbox Gasket | iDF Gearbox

420230010

$12.16

2

Housing | Includes no. 2-3

420210905

$307.49

2

Gear Box Ass'y | Includes no. 2-21

420686393

$869.99

3

Ball Bearing

420232100

$20.99

4

Countershaft

420684272

$571.99

5

Gear

420434984

$53.99

6

Gear Kit Ass'y | Kit 295501213 includes ill. no. 6-8 This part replaces 420434981.

295501213

$149.99

7

Washer

420926211

$3.17

8

Groove Ring

420245251

$5.92

9

Driven Shaft Ass'y

420220938

$109.99

10

Shifting Fork Ass'y | Includes no. 10-13

420657507

$164.99

11

Compression Spring

420638107

$13.70

12

Not Available As Spare Parts

XXX

Unavailable

13

Snap Ring

420245330

$1.79

14

Holding Clamp With Magnet

420261241

$16.36

15

Rocker Arm

420253603

$19.49

16

Bearing Bolt M8X1

420241151

$24.49

17

Needle Pin B 3X15.8

420932849

$3.49

18

Plug Screw

420240273

$11.65

19

Servomotor Ass'y

420265844

$229.99

20

O-Ring | Included in gasket set gearbox

420450450

$2.19

21

Washer 5.3

420927575

$4.25

22

Allen Screw M5X16

420901253

$1.04

23

Sensor Holder

420951361

$11.49

24

Linear Position Sensor

420665952

$77.99

25

Torx Flange Screw M6 X 45

420641198

$4.12

26

Torx Flange Screw M6 X 35

420641258

$3.38

27

Ball Bearing with Bellows Ass'y | Includes no. 26-28

420832642

$185.49

28

O-Ring

420631612

$4.33

29

Gear Clamp 46.8-50.0MM

420853023

$7.41

30

Gear Clamp 52.8-56MM

420851714

$8.15

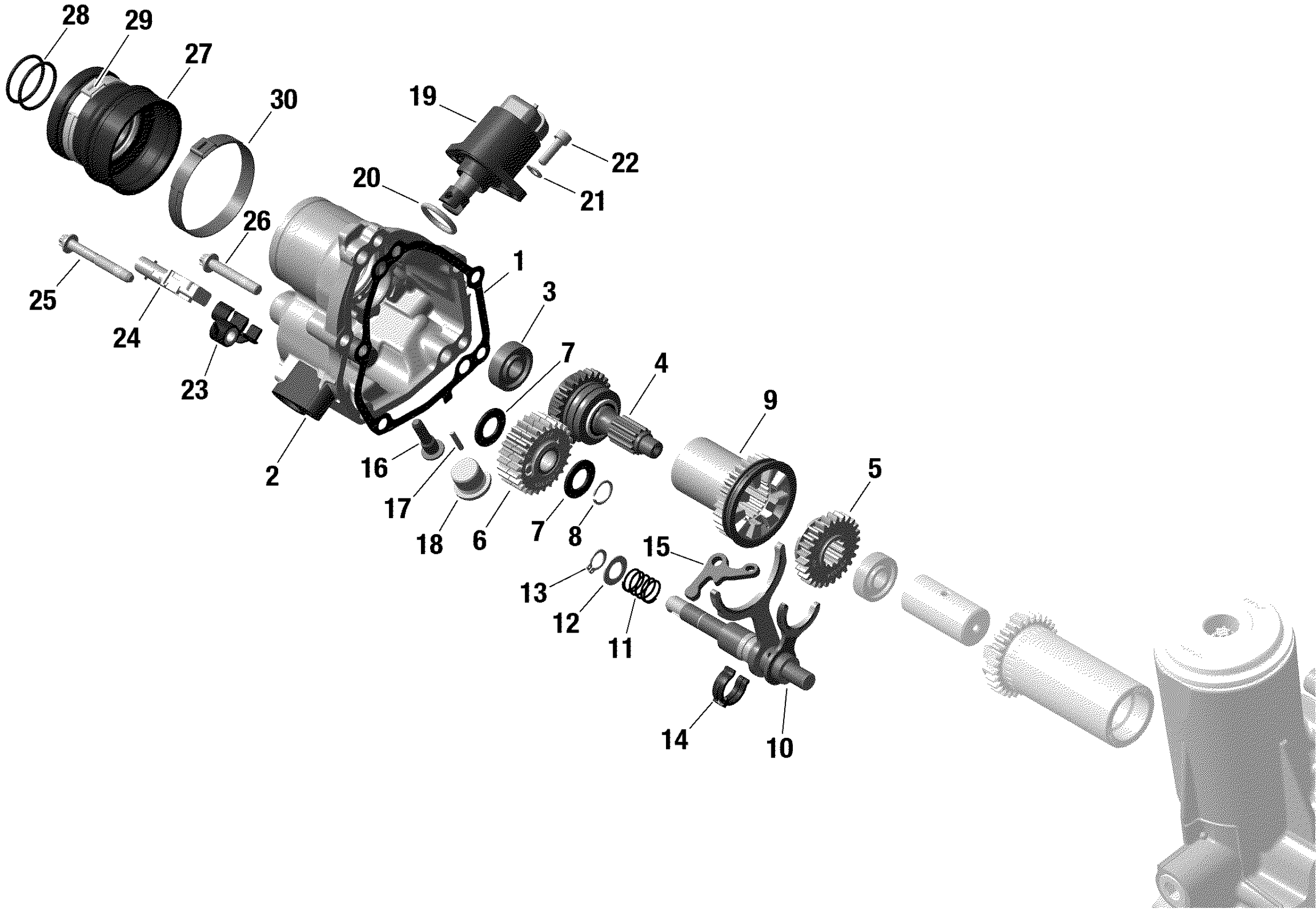

Sea-doo North America - BASE Compact - 100 - 43NA - Blue - NO CAT, 2022 01- ROTAX - iDF Gearbox Diagram
