06- HULL - Frame

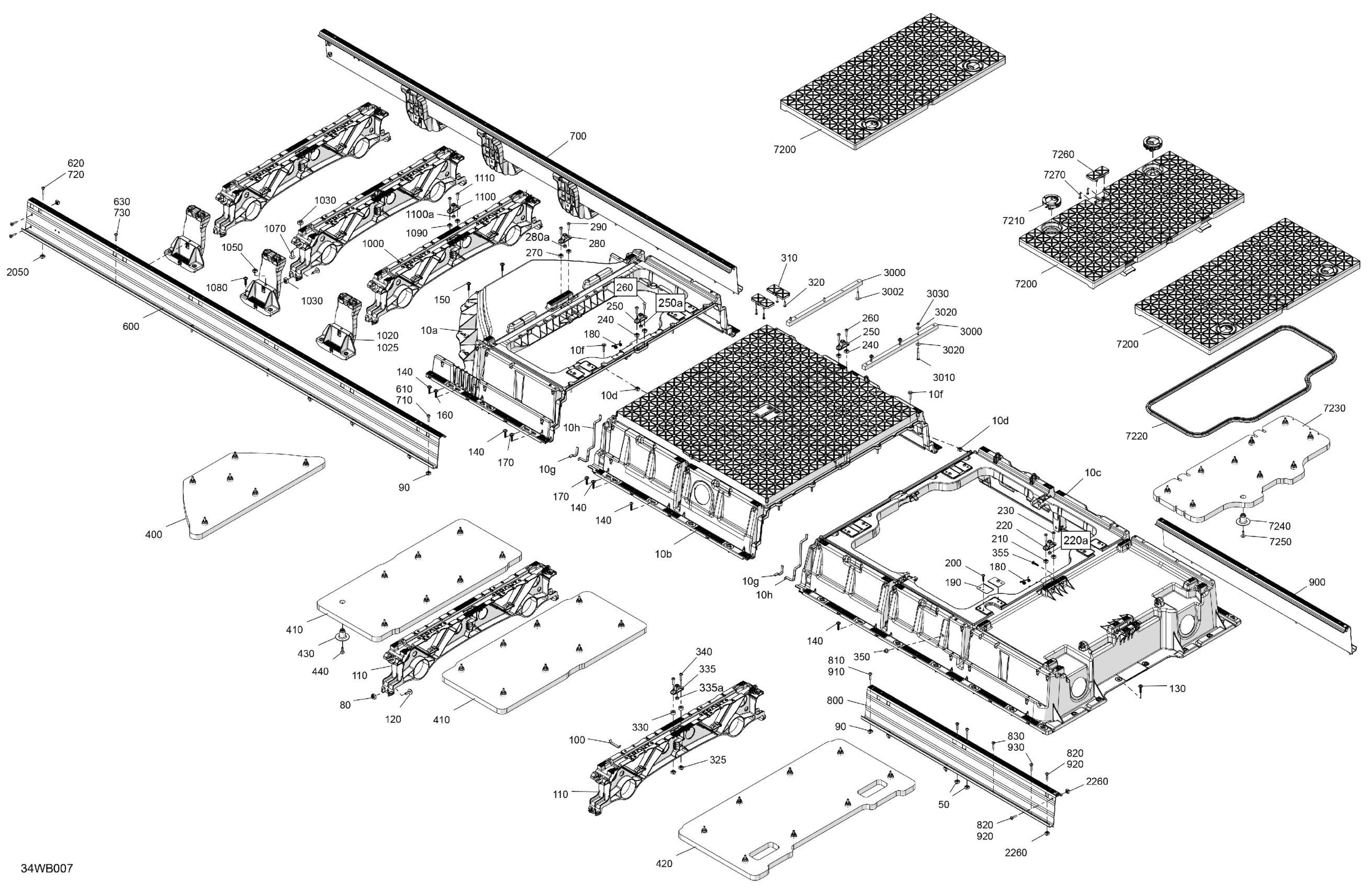

Sea-doo North America - BASE 19 - 170 - 43NC - Blue - CAT 2A, 2022 06- HULL - Frame Diagram
#
10a
Front Chassis
291005606
$519.99
10b
Central Chassis
291004648
$789.99
10c
Rear Frame Service Kit
295101120
$639.99
10d
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
10f
Hex Screw SEMS M6X35, SS
250000969
$2.11
10g
Gasket
293250099
$7.09
10h
Gasket
293250099
$7.09
50
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
80
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
90
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
100
Gasket 3000Mm Long
219704378
$26.49
110
Crossmember
291004980
$119.99
120
Hexagonal Screw M8 X 30
250000888
$3.17
130
Sems Plastite Torx Screw M6.81X35
250001152
$4.76
140
Sems Plastite Torx Screw M6.81X35
250001152
$4.76
150
Sems Plastite Torx Screw M6.81X35
250001152
$4.76
160
Sems Plastite Torx Screw M6.81X35
250001152
$4.76
170
Sems Plastite Torx Screw M6.81X35
250001152
$4.76
180
Torsion Spring
291005695
$10.49
190
Lock Plate
291005582
$2.69
200
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
210
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
220
Table Anchorage | Includes 250 to 250a
291005631
$7.89
220a
Hex Nut M8
232081200
$1.26
230
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
240
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
250
Table Anchorage | Includes 250 to 250a
291005631
$7.89
250a
Hex Nut M8
232081200
$1.26
260
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
270
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
280
Table Anchorage | Includes 250 to 250a
291005631
$7.89
280a
Hex Nut M8
232081200
$1.26
290
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
310
Double Tile Cap
291005630
$6.29
320
Hex. Screw 10-14 X 7/8”
211000023
$3.59
325
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
330
Roller Bushing Kit | Includes 240 to 240b
295501160
$4.29
335
Table Anchorage | Includes 250 to 250a
291005631
$7.89
335a
Hex Nut M8
232081200
$1.26
340
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
350
Grommet
293720029
$1.59
355
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
400
Front Chassis Acoustic Insulation
291005476
$40.99
410
Central Chassis Acoustic Insulation
291005477
$70.99
420
Rear Chassis Acoustic Insulation
291005478
$70.99
430
Fastener
291005474
$3.49
440
Hexagonal Cap Screw M6 X 25
250000978
$4.44
600
Side Member 251 CM
291004898
$339.99
610
Truss Cone Torx Screw M6 X 30
250000924
$7.51
620
Truss Cone Torx Screw M6 X 30
250000924
$7.51
630
Truss Cone Torx Screw M6 X 30
250000924
$7.51
700
Side Member 251 CM
291004899
$339.99
710
Truss Cone Torx Screw M6 X 30
250000924
$7.51
720
Truss Cone Torx Screw M6 X 30
250000924
$7.51
730
Truss Cone Torx Screw M6 X 30
250000924
$7.51
800
Side Member 115 CM
291004900
$169.99
810
Truss Cone Torx Screw M6 X 30
250000924
$7.51
820
Truss Cone Torx Screw M6 X 30
250000924
$7.51
830
Truss Cone Torx Screw M6 X 30
250000924
$7.51
900
Side Member 115 CM
291004901
$169.99
910
Truss Cone Torx Screw M6 X 30
250000924
$7.51
920
Truss Cone Torx Screw M6 X 30
250000924
$7.51
930
Truss Cone Torx Screw M6 X 30
250000924
$7.51
1000
Crossmember
291004980
$119.99
1020
LH Cross Member Support
291005384
$33.99
1025
RH Cross Member Support
291006024
$31.99
1030
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
1050
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
1070
Hexagonal Screw M8 X 30
250000888
$3.17
1080
Sems Plastite Torx Screw M6.81X35
250001152
$4.76
1090
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
1100
Table Anchorage | Includes 250 to 250a
291005631
$7.89
1100a
Hex Nut M8
232081200
$1.26
1110
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
2050
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2260
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
3000
Chassis Reinforcement
281000134
$33.99
3002
Hexagonal Cap Screw M6 X35
250000399
$4.44
3010
Hex. Screw M6 x 55
207065560
$1.01
3020
Flat Washer M6, Stainless
234062600
$0.77
3030
Elastic Stop Nut M6, Brass
232561200
$4.23
7200
Access Cover
291004653
$229.99
7210
Latch Ass'y
291005473
$28.99
7220
Weather Strip
293250624
$38.99
7230
Acoustic Insulation Cover
291005475
$39.99
7240
Fastener
291005474
$3.49
7250
Hexagonal Cap Screw M6 X 25
250000978
$4.44
7260
Double Tile Cap
291005630
$6.29
7270
Hex. Screw 10-14 X 7/8”
211000023
$3.59
