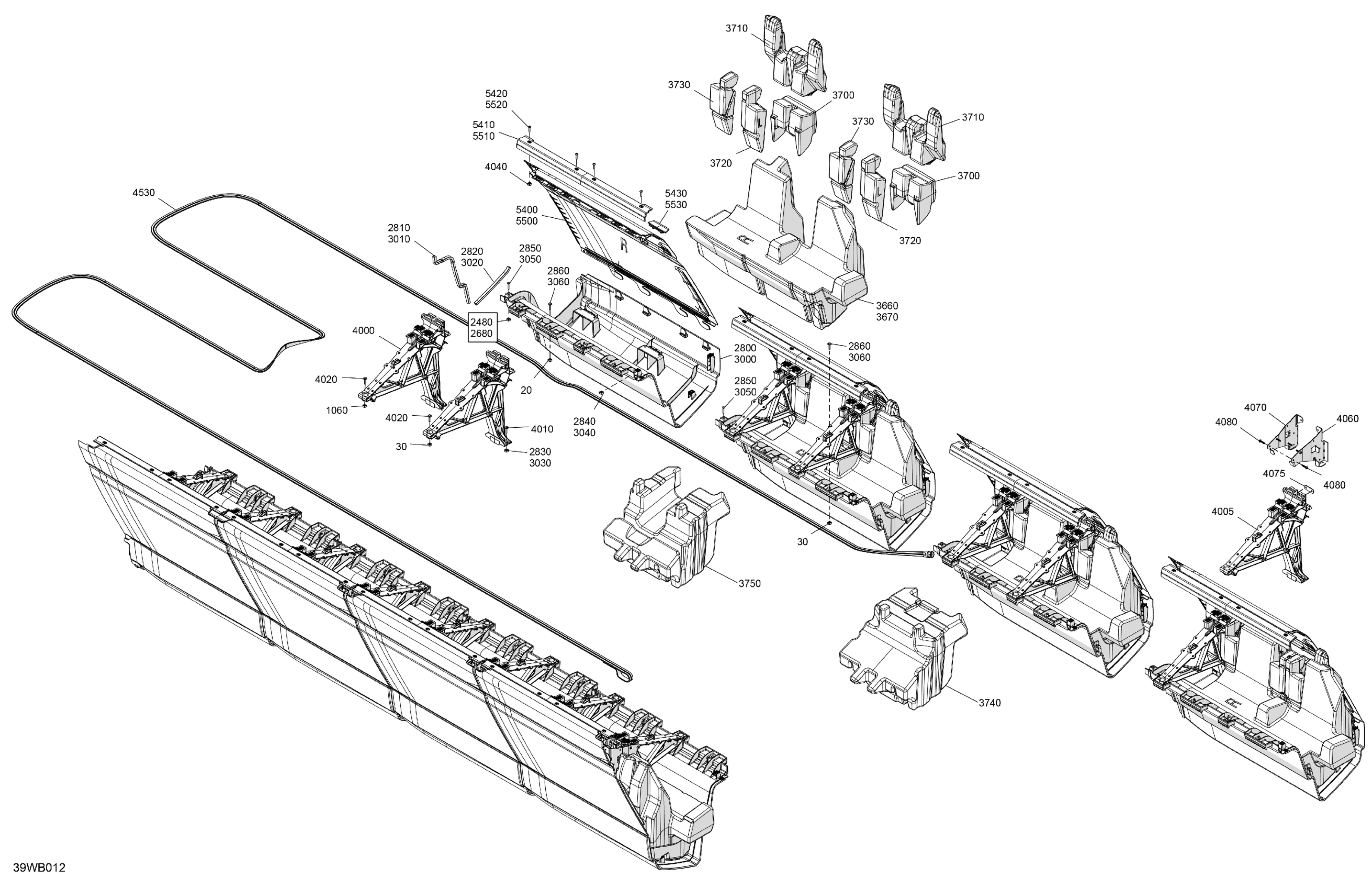

Sea-doo BASE 19 - 170 - 43NC - Blue - CAT 2A, 2022 HULL - Central Float Deflector Diagram

#

Description
Price

20

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

30

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

1060

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2480

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2680

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2800

LH Central Deflector Float

291006185

$288.03

2810

Gasket

292002677

$27.58

2820

Gasket

292002677

$27.58

2830

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2840

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2850

Hex Screw SEMS M6X35, SS

250000969

$2.00

2860

Hex Screw SEMS M6X35, SS

250000969

$2.00

3000

RH Central Deflector Float

291006186

$288.03

3010

Gasket

292002677

$27.58

3020

Gasket

292002677

$27.58

3030

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

3040

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

3050

Hex Screw SEMS M6X35, SS

250000969

$2.00

3060

Hex Screw SEMS M6X35, SS

250000969

$2.00

3660

LH Central Float

292002787

$177.58

3670

RH Central Float

292002788

$177.58

3700

Lower Float Support

291005639

Unavailable

3710

Upper Float Support

291005845

Unavailable

3720

LH Float Support

291005637

Unavailable

3730

RH Float Support

291005636

Unavailable

3740

Upper Float

291006073

$68.63

3750

Gas Float

291006059

$68.63

4000

Interlocking Tile Support

291004895

Unavailable

4005

Interlocking Tile Support

291004895

Unavailable

4010

Hex Screw SEMS M6X35, SS

250000969

$2.00

4020

Hex Screw SEMS M6X35, SS

250000969

$2.00

4040

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4060

Reinforcement Support

291006168

$67.88

4070

Reinforcement Support

291006169

$67.88

4075

Connecting Plate

291005950

Unavailable

4080

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

4530

Rinsing Hose 1366 Cm

291005858

Unavailable

5400

Off White, LH Central Panel

291004844

Unavailable

5410

Central Panel Trim

291005385

Unavailable

5420

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

5430

Trim Cap

291005383

Unavailable

5500

Off White, RH Central Panel

291004846

Unavailable

5510

Central Panel Trim

291005385

Unavailable

5520

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

5530

Trim Cap

291005383

Unavailable
