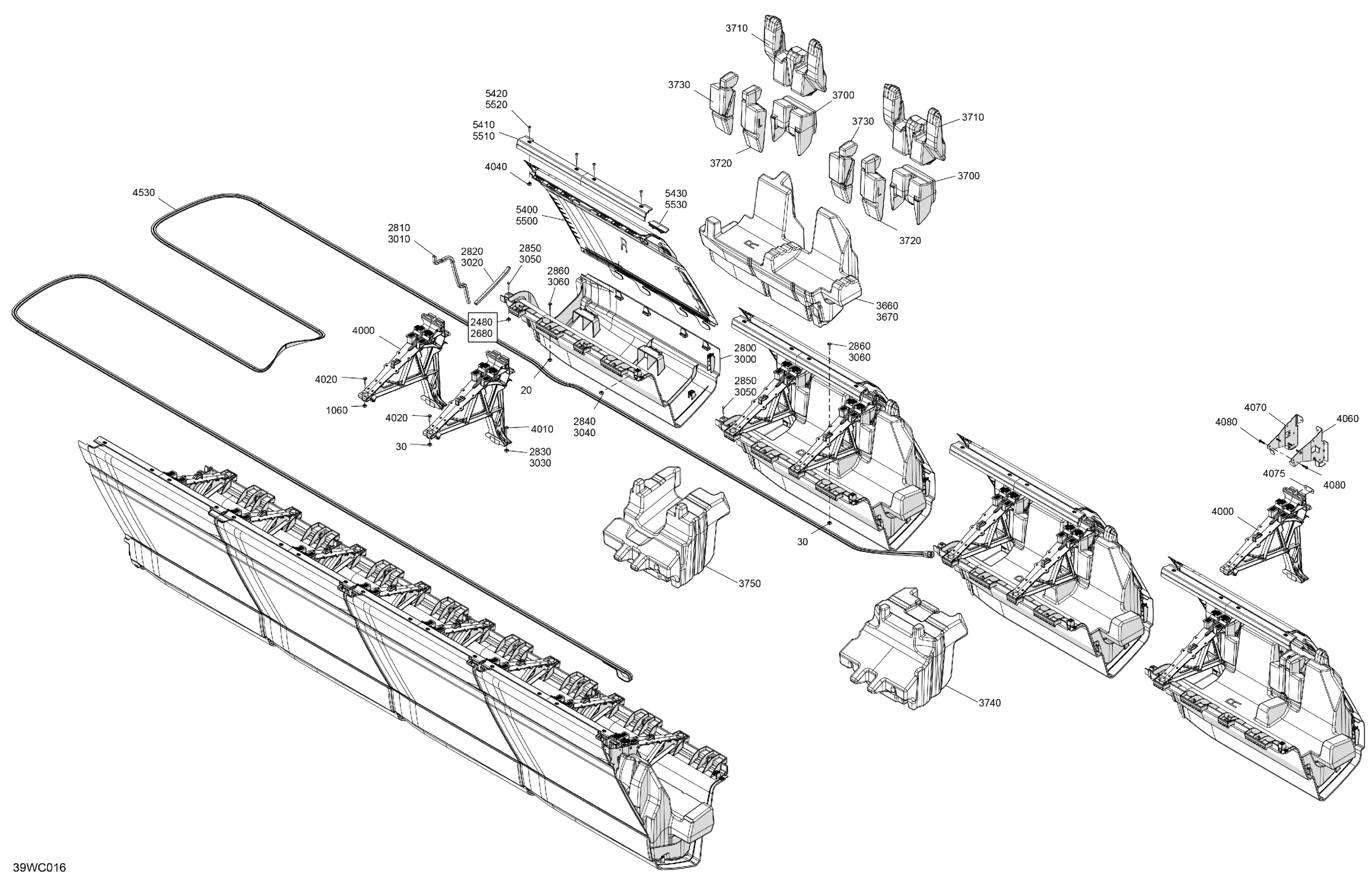

Sea-doo BASE 19 - 170 - 41PL - Blue - Trailer Paint - CAT2B, 2023 HULL - Central Float Deflector Diagram

#

Description
Price

20

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

30

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

1060

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2480

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2680

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2800

LH Central Deflector Float

291006185

$299.99

2810

Gasket

292002677

$30.99

2820

Gasket

292002677

$30.99

2830

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2840

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2850

Hex Screw SEMS M6X35, SS

250000969

$2.11

2860

Hex Screw SEMS M6X35, SS

250000969

$2.11

3000

RH Central Deflector Float

291006186

$299.99

3010

Gasket

292002677

$30.99

3020

Gasket

292002677

$30.99

3030

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

3040

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

3050

Hex Screw SEMS M6X35, SS

250000969

$2.11

3060

Hex Screw SEMS M6X35, SS

250000969

$2.11

3660

LH Central Float

292002787

$199.99

3670

RH Central Float

292002788

$199.99

3700

Lower Float Support

291005639

$11.99

3710

Upper Float Support

291005845

$20.99

3720

LH Float Support

291005637

$15.99

3730

RH Float Support

291005636

$15.99

3740

Upper Float

291006073

$76.99

3750

Gas Float

291006059

$76.99

4000

Interlocking Tile Support

291004895

$159.99

4010

Hex Screw SEMS M6X35, SS

250000969

$2.11

4020

Hex Screw SEMS M6X35, SS

250000969

$2.11

4040

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4060

Reinforcement Support

291006168

$75.99

4070

Reinforcement Support

291006169

$75.99

4075

Connecting Plate

291005950

$13.49

4080

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

4530

Rinsing Hose 1366 Cm

291005858

$88.99

5400

Off White, LH Central Panel

291004844

$184.99

5410

Central Panel Trim

291006170

$74.99

5420

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

5430

Trim Cap

291005383

$11.99

5500

Off White, RH Central Panel

291004846

$184.99

5510

Central Panel Trim

291006170

$74.99

5520

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

5530

Trim Cap

291005383

$11.99
