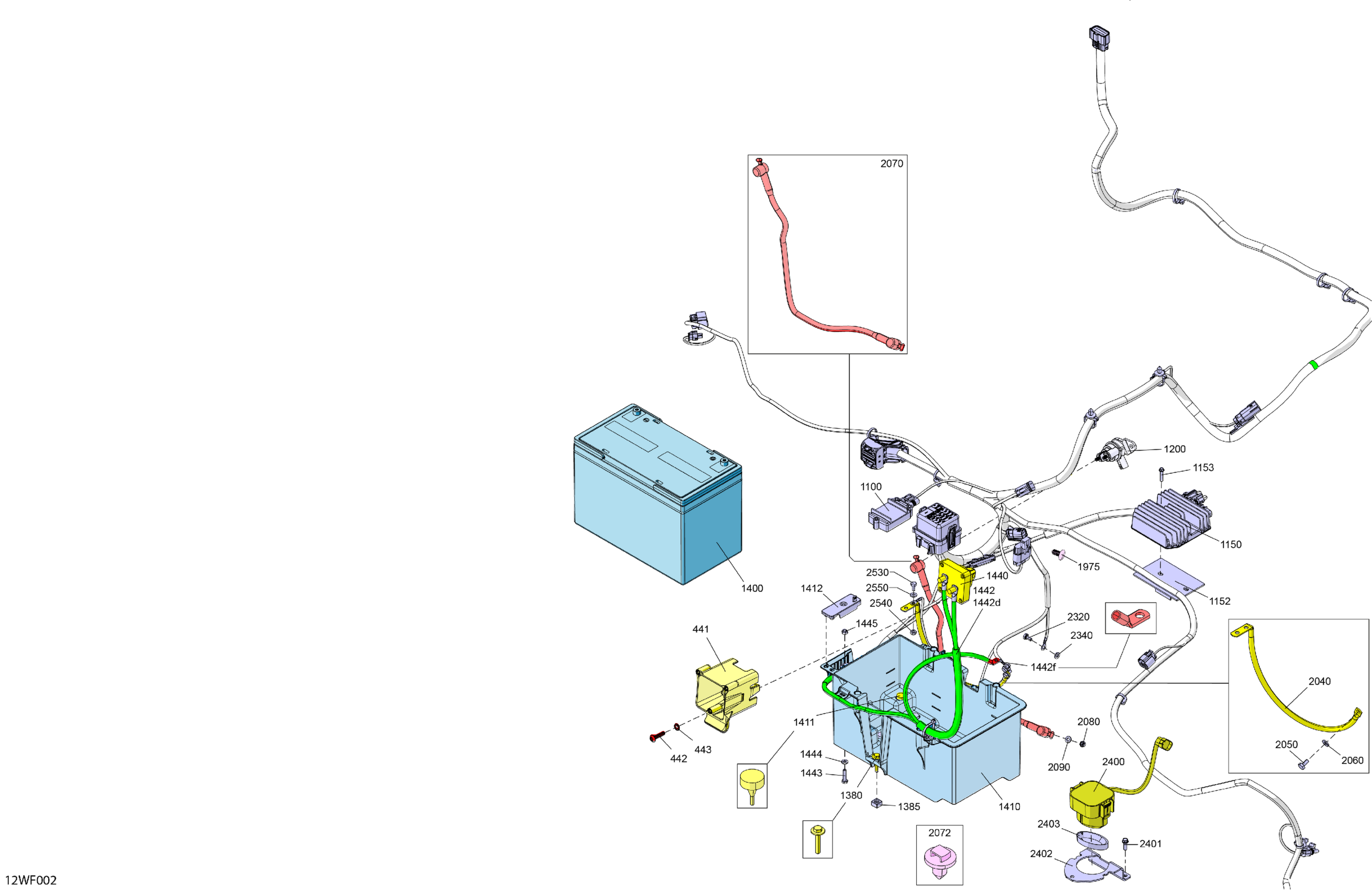

Sea-doo North America - BASE 16 - 170 - 42TA - Can-Am Red - Trailer paint - CAT-2-50-501 - 2026 08- ELECTRIC - Electric Lower Section Diagram

Description

Price

441

Switch Support

278004308

$19.99

442

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

443

Sealing Washer

250200114

$4.44

1100

Gateway Can Module

204471484

$214.99

1150

Voltage Regulator

710010540

$195.99

1152

Machined Heat Sink

278004853

Unavailable

1153

Hex. Flanged Pt Screw K50 X 30

241153060

$2.11

1200

Starter Relay

278003012

$42.49

1380

Hex Screw SEMS M6X35, SS

250000969

$2.11

1385

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

1400

Battery 12 Volt 100Ah

296000465

$399.99

1410

Battery Support

278004647

$80.99

1411

Seat Stopper

708003866

$4.59

1412

Positive Terminal Cap

710008598

$11.49

1440

Switch

278004300

$74.99

1442

Battery Wiring Harness | Includes 1442 to 1442g

278004656

$38.99

1442d

Shrink Tubing, 6 mm

515177246

$1.04

1442f

OPEN BARREL - Call your local BRP dealership

710000538

Unavailable

1442g

Mount Dart

293730040

$1.04

1443

Hex. Screw M6 X 25

207162560

$1.47

1444

Stainless Flat Washer M6

234061600

$0.33

1445

Elastic Stop Nut M6, Brass

232561200

$4.23

1850

Elastic Stop Nut M6, Brass

232561200

$4.23

1975

Black Dart

293730010

$0.99

2040

Negative Cable

278004389

$38.99

2050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2060

Stainless Flat Washer M6

234061600

$0.33

2070

Starter Cable

278003369

$39.99

2072

Mount Dart

710008294

$1.04

2080

Elastic Stop Nut M6, Brass

232561200

$4.23

2090

Stainless Flat Washer M6

234061600

$0.33

2320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2340

Stainless Flat Washer M6

234061600

$0.33

2400

Depthfinder

278004744

$373.99

2401

Hex. Flange Screw M6.81 x 20

243162060

$3.72

2402

Echo Sounder Support

278004377

$229.99

2403

Gel Pad

293550042

$21.99

2530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2540

Elastic Stop Nut M6, Brass

232561200

$4.23

2550

Stainless Flat Washer M6

234061600

$0.33
