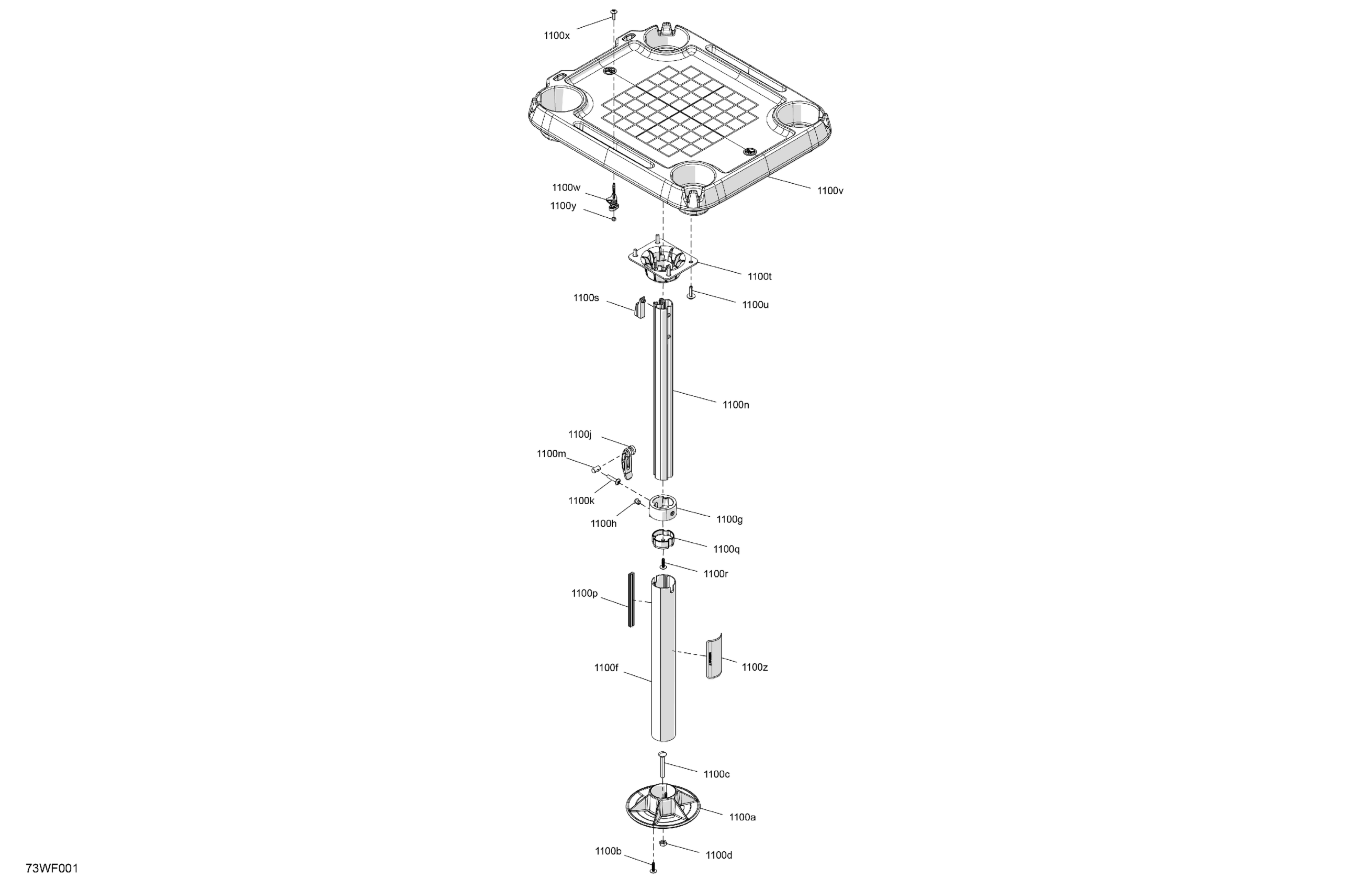

Sea-doo BASE 16 - 170 - 42TA - Can-Am Red - Trailer paint - CAT-2-50-501 - 2026 FURNITURE - Adjustable Table Diagram

Description

Price

1100a

Table Base

269003363

$24.99

1100b

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

1100c

Carriage Bolt M8 X 60

207786060

$1.29

1100d

Hex. Nut M8

232081600

$1.47

1100f

Ext Tube Service Kit

295101129

$38.99

1100g

Adjusting Ring

269003667

$8.19

1100h

Ornit Rivet 6,4 X 15.6

293150284

$4.44

1100j

Anodized Lock Lever

277002094

$38.99

1100k

Stainless Torx Screw M6 X 30

250000634

$2.09

1100m

Lever Pin

506153052

$6.89

1100n

Int Tube

269003691

$33.99

1100p

Stopper

269003779

$2.79

1100q

End Piece

269003669

$11.99

1100r

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

1100s

Spacer

269003815

$2.00

1100t

Upper Support

269003712

$10.99

1100u

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1100v

Table Top

269003365

$129.99

1100w

Lock Lever

269003881

$6.59

1100x

Torx-Truss M/S M5X20 | Not Shown

250000895

$2.11

1100y

Elastic Stop Nut 5 mm

232551200

$1.47

1100z

Table Warning Label

219906083

Unavailable
