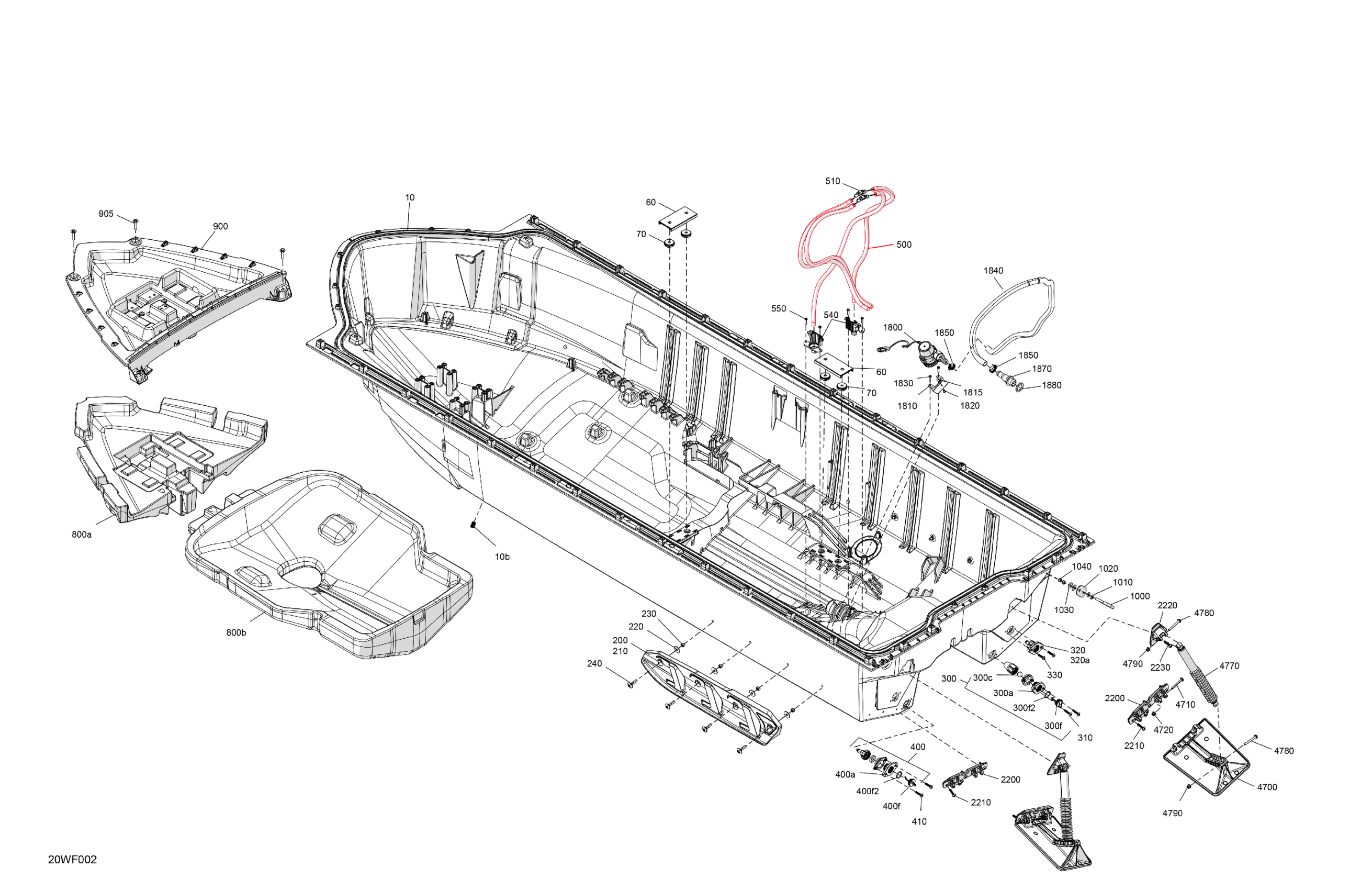

Sea-doo BASE 16 - 170 - 42TA - Can-Am Red - Trailer paint - CAT-2-50-501 - 2026 HULL - Hull System Diagram

#

Description
Price

10

Hull Ass'y | Includes 10 to 10b

292002976

Unavailable

10b

Brass Insert M6X1

292002565

$5.64

60

Anchorage Support

292002403

Unavailable

70

Formed Slot Nut

292002521

Unavailable

200

LH Sponson

292001954

$65.99

210

RH Sponson

292001953

$54.99

220

Flat Washer 8 mm, Stainless

250200175

$1.48

230

Hex. Elastic Nut M8 Brass

232581200

$1.48

240

Torx-Head Screw M8 X 35

250001276

$5.55

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$12.63

300a

Through Hull Fitting

292002765

$6.99

300c

Floating Ball

293830080

$6.39

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$12.79

300f2

O-Ring

293300067

$0.97

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$10.67

320a

Through Hull Fitting

292002765

$6.99

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

400

Flush Kit | Includes 400 to 400f2

292002923

$24.60

400a

Through Hull Fitting

292002765

$6.99

400f

Plug Ass'y | Includes 300f to 300f2

292002022

$12.79

400f2

O-Ring

293300067

$0.97

410

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

500

Hose 11,6 Mm Id X 800

292002962

$9.84

510

Fitting Elbow 90°

293710152

$17.13

540

Pump Support

269800956

$3.04

550

Hex. Screw 10-14 X 7/8”

211000023

$3.34

800a

Lower Front Float

292002336

Unavailable

800b

Fuel Tank Float

292002337

Unavailable

900

Luggage Compartment Bottom

292002414

Unavailable

905

Hexagonal Cap Screw M6 X35

250000399

$4.15

1000

U-Clamp

292000933

$37.28

1010

Flat Washer M8.5 x 18

293050001

$1.48

1020

Retaining Plate

292002612

Unavailable

1030

Flat Washer

279000336

$9.58

1040

Hex. Elastic Nut M8 Brass

232581200

$1.48

1800

Bilge Pump

278004010

$91.01

1810

Bilge Pump Support

269801210

Unavailable

1815

Flat Washer 5 mm, Stainless

234052600

$0.73

1820

Pop Rivet 3/16"

293150043

$1.85

1830

Hex. Screw 10-14 X 7/8”

211000023

$3.34

1840

Hose 19 Mm Id X 1630

292003274

Unavailable

1850

Tridon Gear Clamp

293650019

$5.52

1870

Fitting

293710162

$11.87

1880

Gasket

292001486

$5.12

2200

Trim Tab Anchor

292002406

Unavailable

2210

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

2220

Shock Absorber Anchorage

292002389

Unavailable

2230

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

4700

Tab Trim

292002388

Unavailable

4710

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

4720

Nut Flange Elastic M6

233261200

$0.94

4770

Shock Absorber Ass'y

269502530

$35.79

4780

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

4790

Nut Flange Elastic M6

233261200

$0.94
