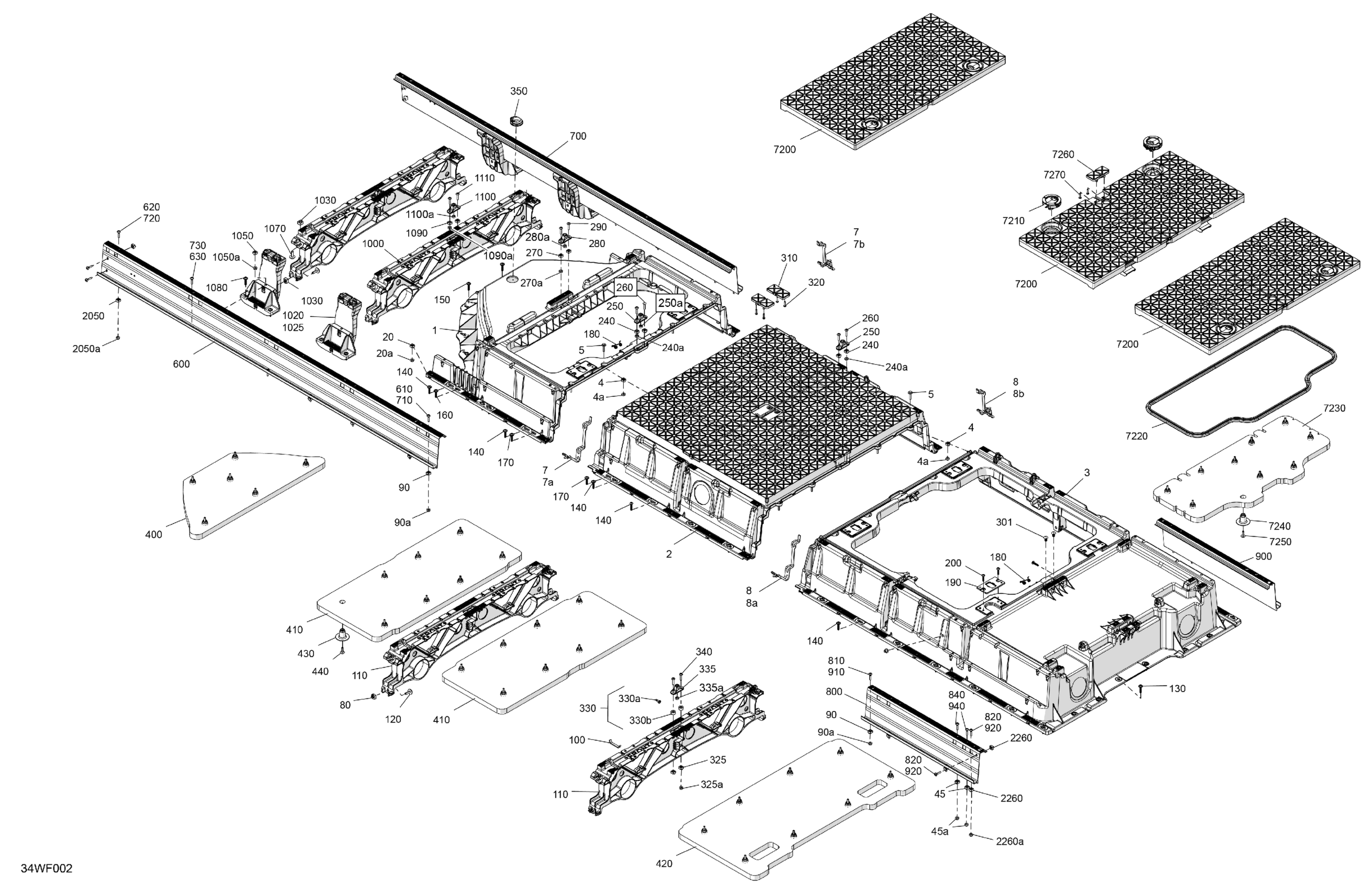

Sea-doo BASE 16 - 170 - 42TA - Can-Am Red - Trailer paint - CAT-2-50-501 - 2026 HULL - Frame Diagram

#

Description
Price

1

Front Chassis

291006440

Unavailable

2

Central Chassis

291004648

Unavailable

3

Rear Frame Service Kit

295101120

Unavailable

4

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

4a

Elastic Stop Nut M6, Brass

232561200

$4.03

5

Hex Screw SEMS M6X35, SS

250000969

$2.00

7

Gasket Kit | Includes 7 to 7b

295501261

$6.30

7a

Not Available As Spare Parts

XXX

Unavailable

7b

Not Available As Spare Parts

XXX

Unavailable

8

Gasket Kit | Includes 7 to 7b

295501261

$6.30

8a

Not Available As Spare Parts

XXX

Unavailable

8b

Not Available As Spare Parts

XXX

Unavailable

20

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

20a

Elastic Stop Nut M6, Brass

232561200

$4.03

45

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

45a

Elastic Stop Nut M6, Brass

232561200

$4.03

80

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

90

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

90a

Elastic Stop Nut M6, Brass

232561200

$4.03

100

Gasket 3000Mm Long

219704378

$25.34

110

Crossmember

291004980

Unavailable

120

Hexagonal Screw M8 X 30

250000888

$3.00

130

Hexagonal Cap Screw M6 X35

250000399

$4.15

140

Hexagonal Cap Screw M6 X35

250000399

$4.15

150

Hexagonal Cap Screw M6 X35

250000399

$4.15

160

Hexagonal Cap Screw M6 X35

250000399

$4.15

170

Hexagonal Cap Screw M6 X35

250000399

$4.15

180

Torsion Spring

291005695

Unavailable

190

Lock Plate

291006507

Unavailable

200

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

240

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

240a

Elastic Stop Nut M6, Brass

232561200

$4.03

250

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

250a

Hex Nut M8

232081200

$1.19

260

Screw Torx Truss Head M6 X 30

250001381

$3.90

270

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

270a

Elastic Stop Nut M6, Brass

232561200

$4.03

280

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

280a

Hex Nut M8

232081200

$1.19

290

Screw Torx Truss Head M6 X 30

250001381

$3.90

301

Black Dart

293730010

$0.93

310

Double Tile Cap

291005630

Unavailable

320

Hex. Screw 10-14 X 7/8”

211000023

$3.34

325

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

325a

Elastic Stop Nut M6, Brass

232561200

$4.03

330

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.79

330a

Screw-Socket Shoulder M8X8

250000775

$7.54

330b

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.79

335

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

335a

Hex Nut M8

232081200

$1.19

340

Screw Torx Truss Head M6 X 30

250001381

$3.90

350

Cable Grommet

293720092

$11.81

400

Front Chassis Acoustic Insulation

291005476

Unavailable

410

Central Chassis Acoustic Insulation

291005477

Unavailable

420

Rear Chassis Acoustic Insulation

291005478

Unavailable

430

Fastener

291005474

$3.13

440

Hexagonal Cap Screw M6 X 25

250000978

$4.15

600

Side Member 205 CM

291005225

Unavailable

610

Truss Cone Torx Screw M6 X 30

250000924

$7.06

620

Truss Cone Torx Screw M6 X 30

250000924

$7.06

630

Truss Cone Torx Screw M6 X 30

250000924

$7.06

700

Side Member 205 CM

291005226

Unavailable

710

Truss Cone Torx Screw M6 X 30

250000924

$7.06

720

Truss Cone Torx Screw M6 X 30

250000924

$7.06

730

Truss Cone Torx Screw M6 X 30

250000924

$7.06

800

Side Member 68 CM

291005223

Unavailable

810

Truss Cone Torx Screw M6 X 30

250000924

$7.06

820

Truss Cone Torx Screw M6 X 30

250000924

$7.06

840

Truss Cone Torx Screw M6 X 30

250000924

$7.06

900

Side Member 68 CM

291005224

Unavailable

910

Truss Cone Torx Screw M6 X 30

250000924

$7.06

920

Truss Cone Torx Screw M6 X 30

250000924

$7.06

940

Truss Cone Torx Screw M6 X 30

250000924

$7.06

1000

Crossmember

291004980

Unavailable

1020

LH Cross Member Support

291005384

Unavailable

1025

RH Cross Member Support

291006024

Unavailable

1030

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

1050

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

1050a

Elastic Stop Nut M6, Brass

232561200

$4.03

1070

Hexagonal Screw M8 X 30

250000888

$3.00

1080

Hexagonal Cap Screw M6 X35

250000399

$4.15

1090

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

1090a

Elastic Stop Nut M6, Brass

232561200

$4.03

1100

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

1100a

Hex Nut M8

232081200

$1.19

1110

Screw Torx Truss Head M6 X 30

250001381

$3.90

2050

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2050a

Elastic Stop Nut M6, Brass

232561200

$4.03

2260

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2260a

Elastic Stop Nut M6, Brass

232561200

$4.03

7200

Access Cover

291004653

$206.69

7210

Latch Ass'y

291005473

$25.34

7220

Weather Strip

293250624

$34.30

7230

Acoustic Insulation Cover

291005475

$35.79

7240

Fastener

291005474

$3.13

7250

Hexagonal Cap Screw M6 X 25

250000978

$4.15

7260

Double Tile Cap

291005630

Unavailable

7270

Hex. Screw 10-14 X 7/8”

211000023

$3.34
