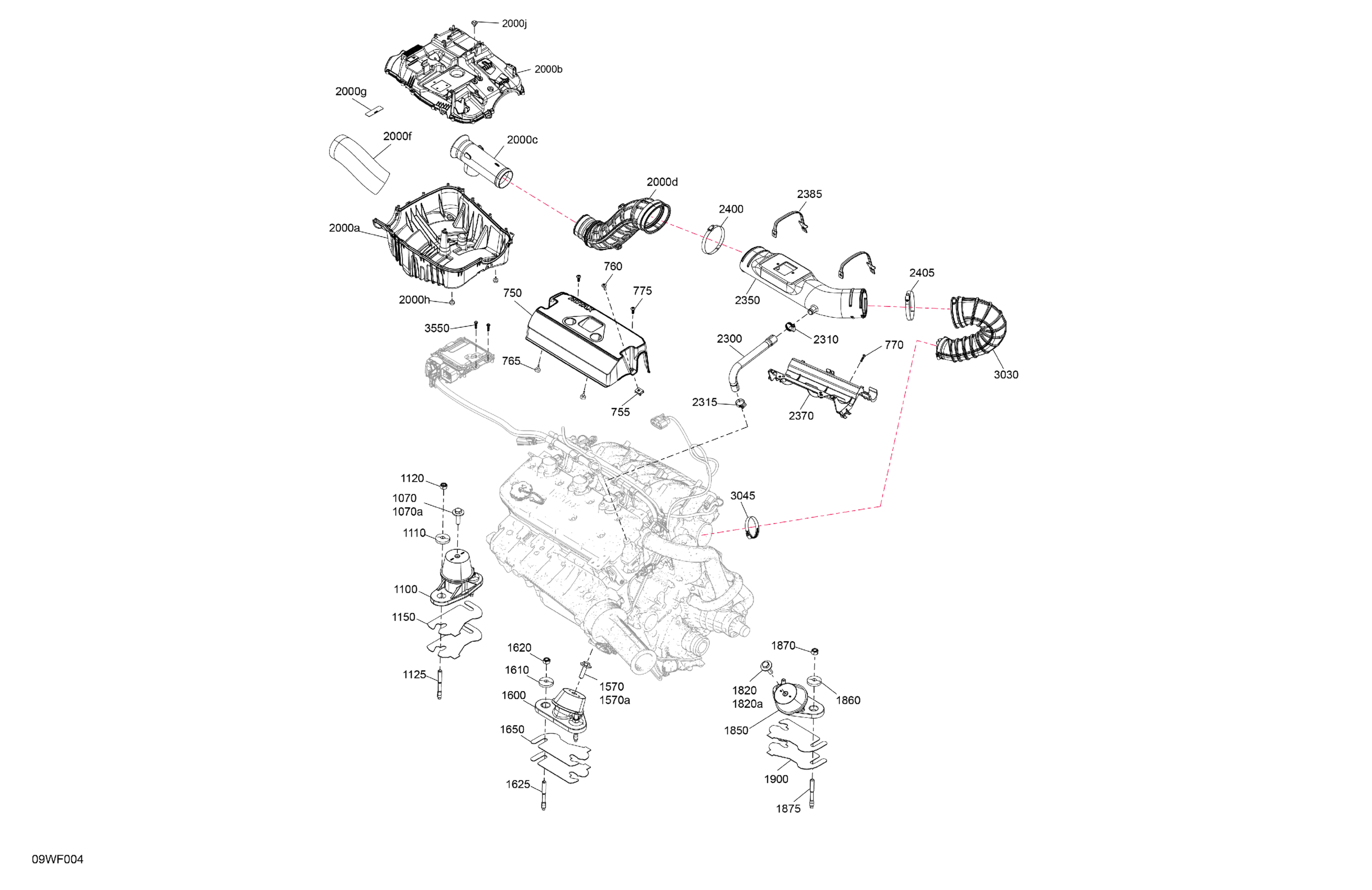

Sea-doo BASE 16 - 170 - 42TA - Can-Am Red - Trailer paint - CAT-2-50-501 - 2026 ENGINE - System Diagram

Description

Price

750

Engine Cover

423465184

$115.35

755

Panel Nut M6 X 1

420942108

$11.48

760

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

765

Rubber Stopper

708000759

$3.61

770

Hex. Flange Screw K50 X 20

241152060

$1.57

775

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.12

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1070a

Hexagonal Screw M8 X 30

250000888

$3.09

1100

Front Engine Support Ass'y

270001215

$77.32

1110

Cone Washer

250200018

$4.64

1120

Hex. Elastic Nut M8 Brass

232581200

$1.29

1125

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1150

Shim 1.3 mm

270000762

$9.04

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1570a

Hexagonal Screw M8 X 30

250000888

$3.09

1600

Lateral Engine Support Ass'y

270001211

$84.47

1610

Cone Washer

250200018

$4.64

1620

Hex. Elastic Nut M8 Brass

232581200

$1.29

1625

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1650

Shim 1.3 mm

270000762

$9.04

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1820a

Hexagonal Screw M8 X 30

250000888

$3.09

1850

Lateral Engine Support Ass'y

270001211

$84.47

1860

Cone Washer

250200018

$4.64

1870

Hex. Elastic Nut M8 Brass

232581200

$1.29

1875

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1900

Shim 1.3 mm

270000762

$9.04

2000a

Lower Intake Silencer

273000446

$69.20

2000b

Upper Intake Silencer

273000447

$69.20

2000c

Intake Duct Silencer Int

273000445

$46.12

2000d

Molded Intake Silencer Duct Out

273000474

Unavailable

2000f

Intake Duct Silencer In

273000425

$49.97

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Seat Stopper

708003866

$3.61

2000j

Mount Dart

293730040

$0.86

2300

Formed Hose

423465173

Unavailable

2310

Gear Clamp

293650284

$3.61

2315

Clamp Gear

293650285

$2.68

2350

Central Intake Duct

270001256

$49.97

2370

Duct Support

423465185

Unavailable

2385

Retaining Strap

423465186

$14.75

2400

Gear Clamp

423462193

$12.91

2405

Gear Clamp This part replaces 293650281.

293650202

$15.35

3030

Molded Throttle Body Hose IN

423465428

Unavailable

3045

Tridon Clamp

293650179

$8.81

3550

Flange Torx Screw K40 X 16

250000287

$1.74
