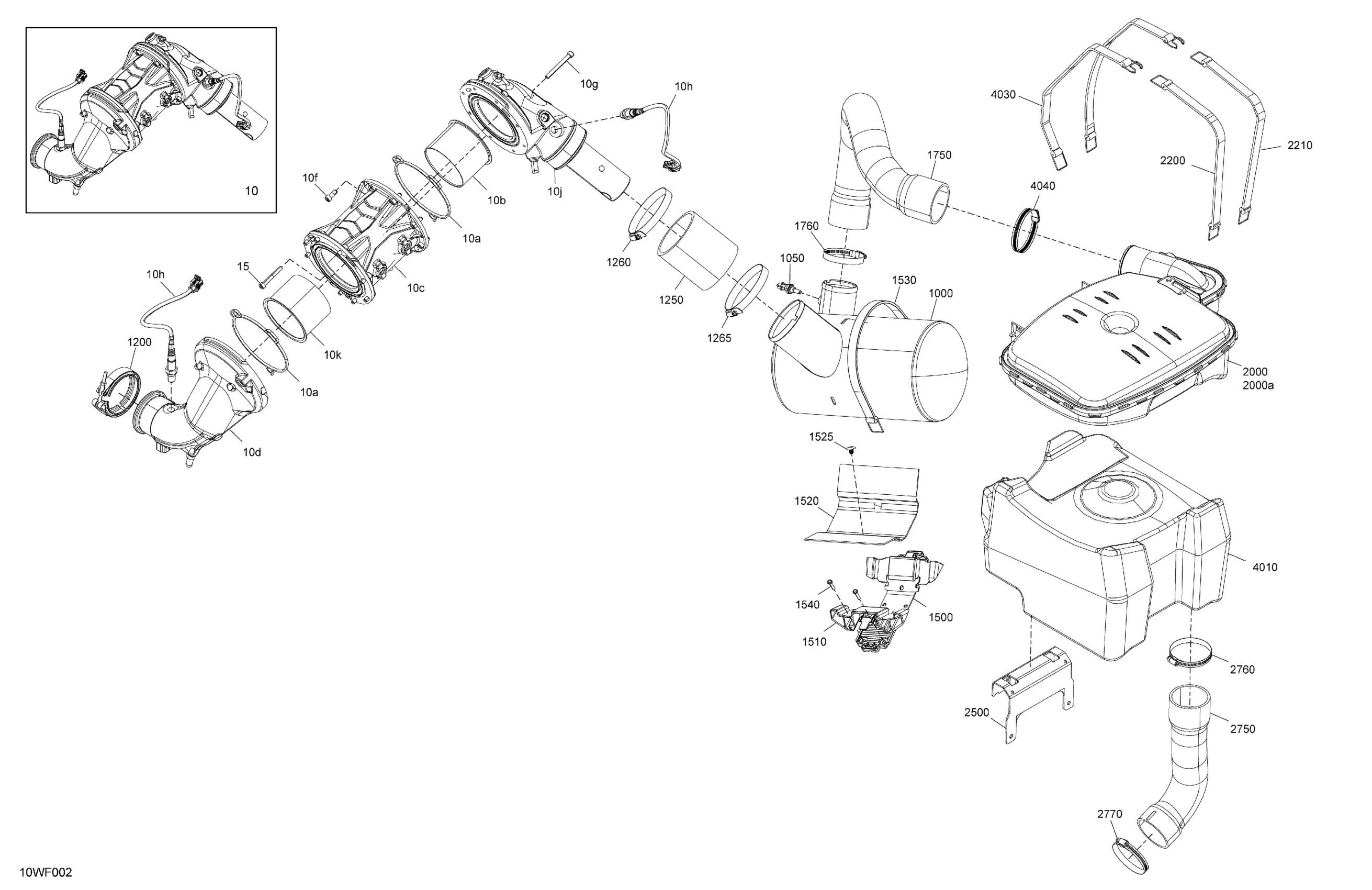

Sea-doo BASE 16 - 170 - 42TA - Can-Am Red - Trailer paint - CAT-2-50-501 - 2026 ENGINE - Exhaust Diagram

Description

Price

Catalyst Ass'y | Includes 10 to 10k

274001738

$3,449.99

10a

O-Ring

293300147

$16.89

10b

Catalysyst

423463255

$1,539.17

10c

Center Housing Ass'y

423461944

$472.52

10d

Head Pipe

423463092

$308.72

10f

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.28

10g

Socket Screw M8 X 65, Scotch Grip

205586560

$15.37

10h

Oxygen Sensor

707600872

$115.67

10j

Exhaust Tail-Cone Ass'y

423463090

$969.20

10k

Catalysyst

423463255

$1,539.17

Socket Head Screw M8 X 55

205085560

$3.61

1000

Exhaust Muffler

274001748

$456.89

1050

Temperature Sensor

514054856

$119.57

1200

Exhaust Clamp

274001417

$45.47

1250

Hose

274001724

Unavailable

1260

Gear Clamp This part replaces 293650281.

293650202

$15.35

1265

Gear Clamp This part replaces 293650281.

293650202

$15.35

1500

Muffler Support

293450390

$12.42

1510

Stopper

274001721

$14.27

1520

Cut Insulating Pad

293830253

$11.38

1525

Christmas Tree Anchorage

293730113

$0.86

1530

Retaining Strap

293850163

$16.89

1540

Hex. Screw 10-14 X 7/8”

211000023

$2.91

1750

Formed Exhaust Hose

274001734

$73.82

1760

Tridon Gear Clamp

293650244

$7.22

2000

Drilled Resonator | Includes 2000 to 2000a

274001752

$136.47

2000a

Resonator

274001751

$126.72

2200

Fuel Tank Strap

293850093

$16.87

2210

Fuel Tank Strap

293850093

$16.87

2500

Retaining Plate

292002931

$32.28

2750

Formed Exhaust Hose

274001735

Unavailable

2760

Tridon Gear Clamp

293650244

$7.22

2770

Tridon Gear Clamp

293650244

$7.22

4010

Foam Support

274001737

Unavailable

4030

Fuel Tank Strap

293850101

$13.62

4040

Tridon Gear Clamp

293650244

$7.22
