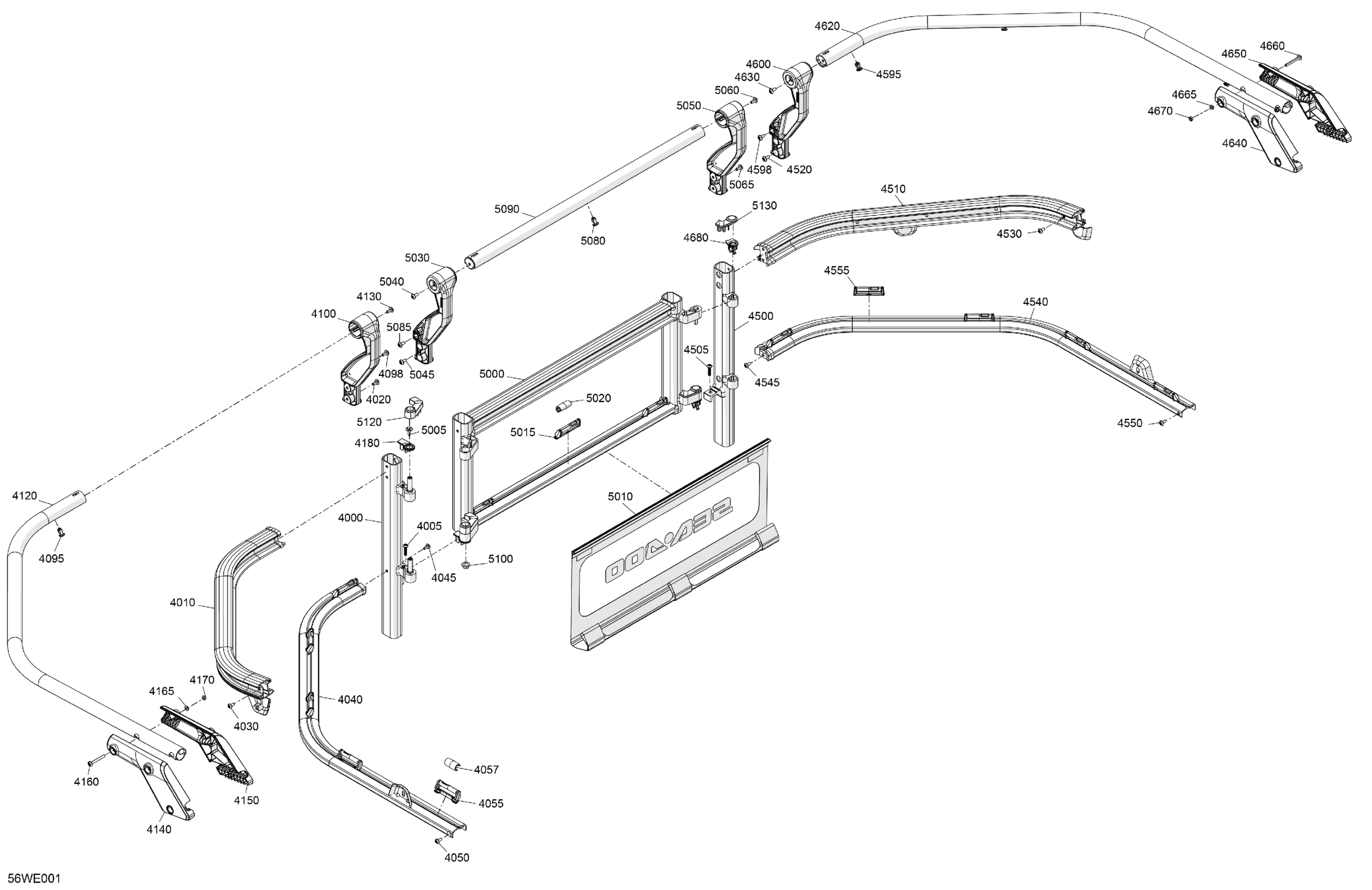

Sea-doo BASE 16 - 130 - 41SD - Can-Am Red - Trailer Paint - CAT2B - 2025 GUARD RAILS - Front Diagram

#

Description
Price

4000

LH Front Profiled Tube

281300714

Unavailable

4005

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

4010

LH Front Hand Rail

281300350

Unavailable

4020

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4030

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4040

LH Lower Profile Tube

281300349

Unavailable

4045

Cone Torx Truss Screw HD.M6 X 51

250001185

$3.66

4050

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4055

Balustrade Anchor

281300589

Unavailable

4057

Balustrade Fastener

281300597

$3.24

4095

Tuflok Plastic Rivet

293150230

$1.39

4098

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4100

LH Front Trim Support

281300294

Unavailable

4120

LH Upper Lateral Tube

281300284

Unavailable

4130

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4140

Lava Gray, LH Upper Rail Support

281300257

Unavailable

4150

Lava Gray, RH Upper Rail Support

281300256

Unavailable

4160

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

4165

Stainless Flat Washer M6

234061600

$0.28

4170

Elastic Stop Nut M6, Brass

232561200

$4.03

4180

LH Lower Cap

281300311

Unavailable

4500

RLH Front Profiled Tube

281300715

Unavailable

4505

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

4510

RH Front Hand Rail

281300355

Unavailable

4520

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4530

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4540

Rear Lower Profiled Tube

281300356

Unavailable

4545

Cone Torx Truss Screw HD.M6 X 51

250001185

$3.66

4550

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4555

Balustrade Anchor

281300589

Unavailable

4595

Tuflok Plastic Rivet

293150230

$1.39

4598

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4600

RH Front Trim Support

281300297

Unavailable

4620

RH Upper Laterak Tube

281300482

Unavailable

4630

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4640

Lava Gray, LH Upper Rail Support

281300257

Unavailable

4650

Lava Gray, RH Upper Rail Support

281300256

Unavailable

4660

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

4665

Stainless Flat Washer M6

234061600

$0.28

4670

Elastic Stop Nut M6, Brass

232561200

$4.03

4680

RH Lower Cap

281300312

Unavailable

5000

Front Door Service Kit

295101112

Unavailable

5005

Hex Screw M6 X 20

250000965

$2.00

5010

Front Balustrade Ass'y

281300692

Unavailable

5015

Balustrade Anchor

281300589

Unavailable

5020

Balustrade Fastener

281300597

$3.24

5030

RH Front Trim Support

281300297

Unavailable

5040

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

5045

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

5050

LH Front Trim Support

281300294

Unavailable

5060

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

5065

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

5080

Tuflok Plastic Rivet

293150230

$1.39

5085

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

5090

Upper Front Tube

281300281

Unavailable

5100

Venturi Bushing

293900007

$4.25

5120

LH Upper Cap

281300309

Unavailable

5130

RH Upper Cap

281300310

Unavailable
