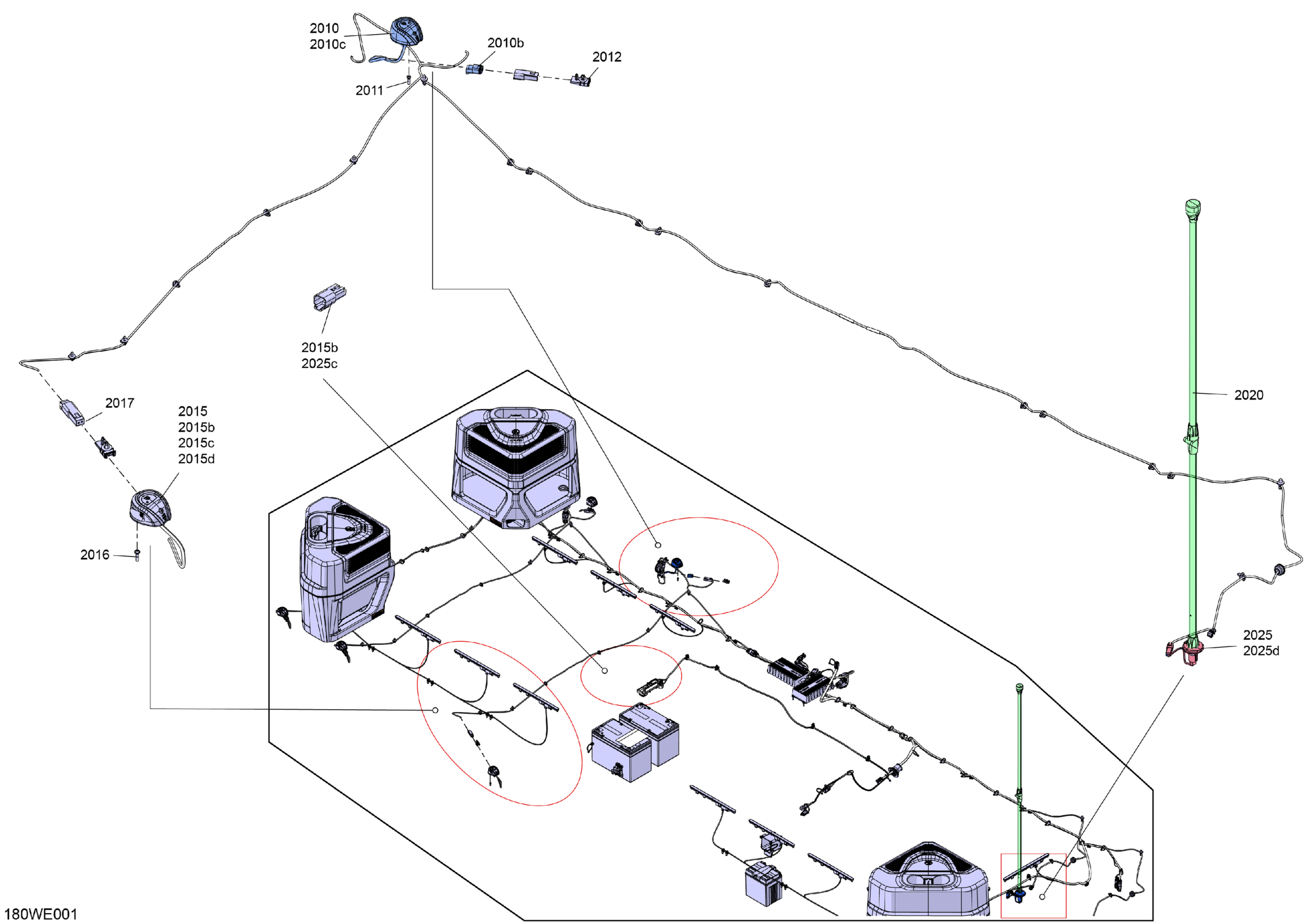

Sea-doo BASE 16 - 130 - 41SD - Can-Am Red - Trailer Paint - CAT2B - 2025 ELECTRIC - Lighting Diagram

Description

Price

2010

Green, Side Navigation Light Ass'y | Includes 2010 to 2010d

278004019

Unavailable

2010b

Amphenol Female Connector 2 Cavities

515178579

$9.66

2010c

Female Terminal

710005438

$3.88

2010d

Amphenol Lock Connector

515178580

$3.66

2011

Flange Torx Screw K40 X 16

250000287

$2.00

2012

Deutsch Connector Support

710006744

$3.13

2013

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.22

2015

Red Side Navigatin Light Ass'y | Includes 2015 to 2015d

278004020

Unavailable

2015b

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$9.85

2015c

Terminal

710005748

$3.12

2015d

Amphenol Connector Lock | Not Shown

515179136

$3.73

2016

Flange Torx Screw K40 X 16

250000287

$2.00

2017

Deutsch Connector Support

710006744

$3.13

2018

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.22

2020

White, All Round Navigation Light

278003778

$220.87

2025

Navigation Table Base Ass'y | Includes 2025 to 2025f

278004021

Unavailable

2025c

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$9.85

2025d

Terminal

710005748

$3.12

2025f

Amphenol Connector Lock | Not Shown

515179136

$3.73
