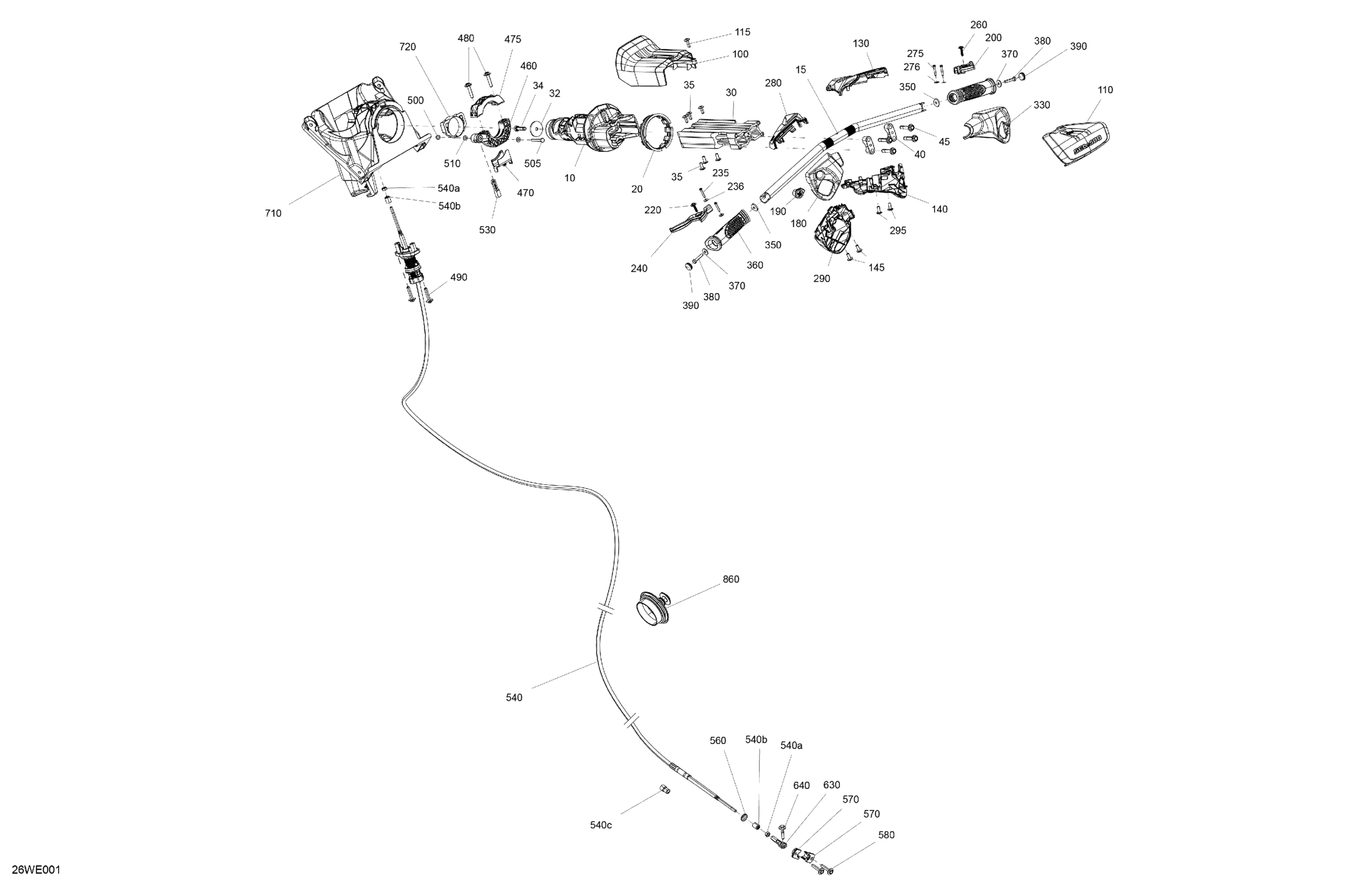

Sea-doo BASE 16 - 130 - 41SD - Can-Am Red - Trailer Paint - CAT2B - 2025 MECHANIC - Steering Diagram

#

Description
Price

10

Steering Column

277002111

$214.99

15

Bent Handlebar

281000031

$105.99

20

Wear Ring

277001874

$12.17

30

Anodized Handlebar Riser Block

277002183

$72.99

32

Flat Washer M8.4 x 40

250200188

$6.03

34

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.79

35

Torx Truss Screw M6 X 16

250000922

$1.90

40

Steering Support | Includes 40 to 40a

506152751

$13.99

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.91

100

Steering Column Trim

277002200

$14.49

110

Steering Pad

277002331

$57.99

115

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

130

RH Upper Housing

277002040

$109.99

140

RH Lower Housing

277002036

$104.99

145

Torx Truss Screw M6 X 16

250000922

$1.90

180

LH Cover

277002314

$18.99

190

Red Button Switch

277002327

$9.21

200

Hand Lever Accelerator

277002138

$38.99

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

280

LH Upper Housing

277002041

$109.99

290

LH Lower Housing

277002035

$104.99

295

Torx Truss Screw M6 X 16

250000922

$1.90

330

RH Cover

277002315

$18.99

350

Insert Grip Handle

277001863

$8.83

360

Handlebar Grip

277002286

$19.99

370

Flat Washer M6, Stainless

234062600

$0.77

380

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

390

Black, Cap

277000203

$9.39

460

Steering Arm

277002319

$9.19

470

Spacer

277001654

$15.99

475

C Clamp

277002085

$9.19

480

Hexagonal Cap Screw M6 X35

250000399

$4.44

490

Hexagonal Cap Screw M6 X35

250000399

$4.44

500

Nut Flange Elastic M6

233261200

$0.99

505

Hex. Screw M6 X 40

207064060

$1.69

510

Stainless Flat Washer M6

234061600

$0.33

530

Ball Joint

277001180

$35.99

540

Steering Cable | Includes 540 to 540c

277002454

$275.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

540c

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

710

Steering Column Support

277002168

$51.99

720

Wear Ring

277002318

$15.99

860

Cable Boot

293720116

$4.49
